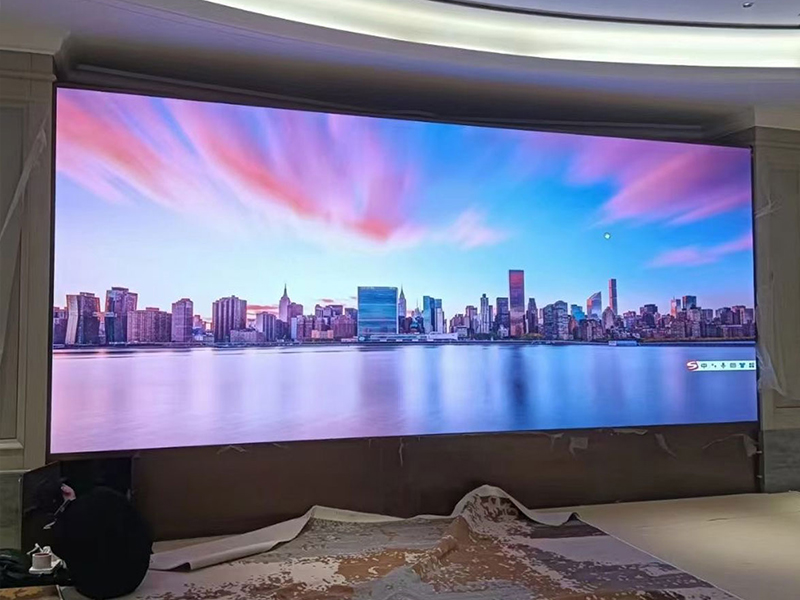

Why Do LED Panels Advertise 3840Hz Refresh Rate?

If you’ve ever checked the specs of an LED video wall, you’ve probably seen numbers like 1920Hz, 3840Hz, or even 7680Hz refresh rate. At first glance, these numbers look similar to TV refresh rates—but they’re not.

So what does 3840Hz actually mean? And more importantly, does it really matter?

Let’s break it down using insights from real engineers and technicians in the field.

1. 3840Hz Is NOT the Video Frame Rate

One of the most common misconceptions is assuming that 3840Hz means the screen displays 3840 frames per second.

That’s incorrect.

As multiple professionals explained in the Reddit discussion:

“It is the LED refresh rate, not the video rate.”

In reality:

• Video frame rate (FPS) = how many frames your content has (e.g., 24, 30, 60 FPS)
• LED refresh rate (Hz) = how often the LED pixels update internally

These two operate independently.

In practice, most LED walls still display content at 60Hz or lower, even if the panel advertises 3840Hz.

2. The Real Meaning: PWM and Sub-Frame Scanning

To understand 3840Hz, you need to understand how LEDs control brightness.

Unlike LCDs, LEDs cannot smoothly dim. Instead, they rely on PWM (Pulse Width Modulation):

• LEDs turn on and off very quickly
• The ratio of on/off time creates different brightness levels

As one expert explained:

LEDs “turn on and off… very fast… to achieve shades of colors.”

Now here’s the key:

Modern LED panels divide each video frame into multiple sub-frames.

For example:

• Input signal = 60Hz
• Sub-frames = 64
• Result:
  60 × 64 = 3840Hz refresh rate

This matches a direct explanation from the thread:

“A display supporting 60Hz with 64 sub frames would achieve 3840Hz.”

So, 3840Hz is essentially the internal PWM frequency multiplied across sub-frames, not actual video playback speed.

3. Why High Refresh Rate Matters

At this point, you might ask:

If humans can’t see thousands of Hz, why does it matter?

3.1 Reducing Flicker and Scan Lines

Higher refresh rates dramatically reduce:

• Flickering
• Horizontal scan lines
• Brightness instability

A low refresh rate often causes visible artifacts when filming:

• Rolling black bars
• “Water ripple” distortion
• Exposure inconsistencies

3.2 Camera Compatibility Is the Real Reason

In real-world applications—especially:

• Broadcast
• Virtual production
• Concerts
• XR stages

The camera becomes the primary viewer.

As Reddit users highlighted:

• Camera shutter can “line up with PWM frequency” and cause flicker
• Higher refresh rates reduce banding and flicker issues

This is why:

• 1920Hz = acceptable
• 3840Hz = industry standard
• 7680Hz = high-end virtual production

3.3 It Enables Better Color and Grayscale

More sub-frames = more control over brightness.

That means:

• Smoother gradients
• Better grayscale performance
• Reduced color stepping

In other words, refresh rate also impacts image quality, not just stability.

4. Why 3840Hz Alone Can Be Misleading

Here’s where things get more nuanced—and where Reddit users raised valid concerns.

One comment pointed out:

High refresh rates can be “basically meaningless” with poor scan design

That’s because refresh rate depends on:

4.1 Scan Ratio (1/8, 1/16, 1/32)

Higher scan ratios:

• Reduce cost
• But lower real performance

A panel with:

• 3840Hz + 1/32 scan
  may perform worse than:
• 1920Hz + 1/8 scan

4.2 Driver IC Quality

Advanced driver chips:

• Increase PWM precision
• Improve grayscale depth
• Maintain stability at high refresh rates

4.3 Processing System

The LED processor also affects:

• Signal handling
• Frame mapping
• Synchronization with cameras

So, refresh rate alone doesn’t define quality.

5. 1920Hz vs 3840Hz vs 7680Hz: Practical Differences

To the naked eye, the difference is often subtle. However, cameras reveal it immediately.

6. Key Takeaways for Buyers and Engineers

If you’re evaluating LED panels, don’t rely on “3840Hz” alone. Instead:

Focus on the Full System:

• Refresh rate (≥3840Hz for professional use)
• Scan ratio (lower is better)
• Driver IC quality
• Camera testing performance

Ask the Right Questions:

• Does it pass the “camera test”?
• What scan method is used?
• Is it optimized for broadcast or XR?

Conclusion

3840Hz sounds impressive—and it is—but only when you understand what it represents.

It does NOT mean:

• Higher FPS
• Faster content playback

It DOES mean:

• Faster PWM cycles
• Better brightness control
• Reduced flicker (especially on camera)

In modern LED systems, refresh rate is less about human vision and more about camera performance. And in today’s content-driven world, that distinction makes all the difference.
