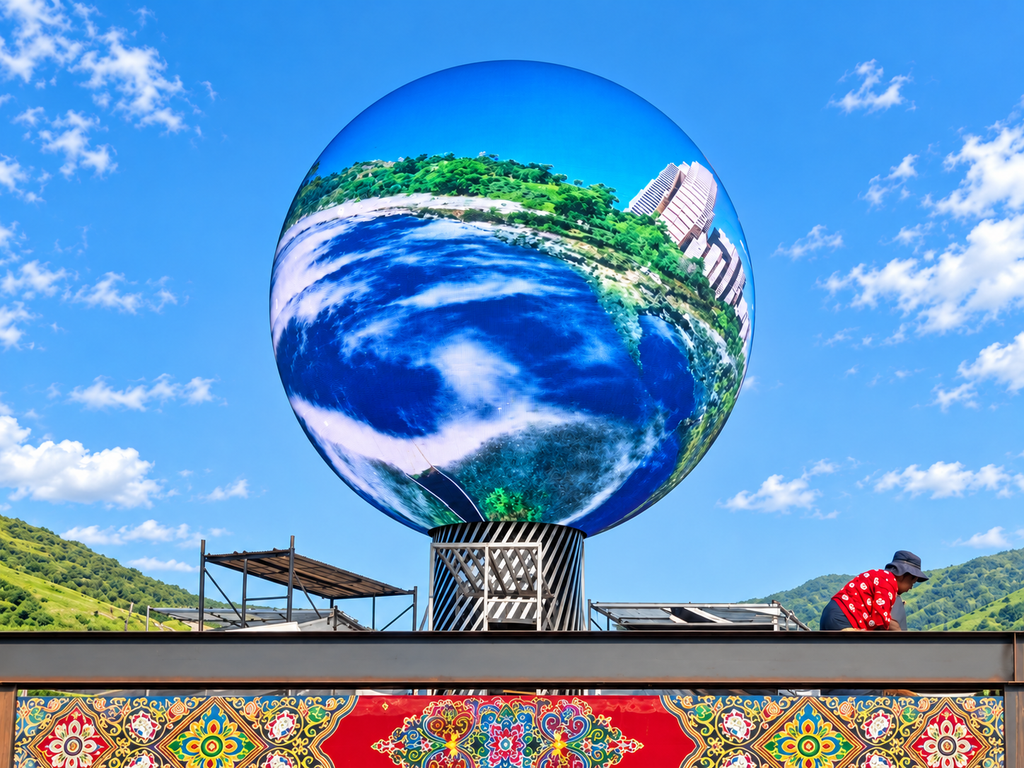

Spherical LED Display Configuration Recovery Test

A spherical LED display depends on more than physical modules and power cables. Behind the screen, the control system stores many settings that decide how the image appears on the sphere.

If the controller fails and must be replaced, the new controller may power the screen normally, but the image can still be completely wrong.

Some modules may show the wrong section of the image. Rows may appear reversed. Part of the sphere may stay black. The content may rotate in the wrong direction or break into several sections.

This is why a configuration recovery test should be completed before shipment and after any controller replacement.

Why Controller Replacement Can Affect a Spherical LED Display

For a standard rectangular LED display, configuration is usually relatively simple. Modules are arranged in regular horizontal and vertical rows.

A spherical LED display is different.

Its modules are distributed around a curved structure, and different receiving cards may control different areas of the sphere. The controller must know the exact order of these sections.

Important configuration information may include:

• screen resolution
• receiving card parameters
• module width and height
• data cable order
• card coordinates
• cabinet or module mapping
• scan mode
• color settings
• calibration data

If these parameters are missing after controller replacement, the hardware may be healthy while the picture is incorrect.

What Problems Can Appear After the Controller Is Changed?

The most common problem is incorrect mapping.

For example, the controller may send the upper part of the video to modules installed near the bottom of the sphere.

Another section may appear mirrored because the signal direction is different from what the new configuration expects.

Other possible problems include:

• black modules
• repeated images
• horizontal image shifting
• reversed module sections
• wrong screen resolution
• abnormal colors
• visible brightness differences

These problems can make troubleshooting difficult because technicians may first suspect damaged LED modules or receiving cards.

In reality, the problem may only be the configuration file.

Back Up the Configuration Before Shipment

The easiest way to recover a spherical LED display is to prepare the recovery files before a problem occurs.

Before shipment, the final working configuration should be saved after the complete sphere has passed the display test.

The backup should normally include the sending controller configuration and receiving card parameters.

For customized spherical projects, it is also useful to keep a simple map showing which receiving card controls each physical area.

For example:

Card 1 may control the front upper area.

Card 2 may control the front lower area.

Card 3 may control the left side.

Card 4 may control the right side.

This type of reference can reduce troubleshooting time when the screen is repaired months or years later.

How to Perform the Configuration Recovery Test

The recovery test can be performed by simulating a controller replacement.

First, technicians confirm that the complete spherical LED display is operating correctly.

The current configuration is then backed up.

Next, another compatible controller can be connected to the screen.

Instead of manually rebuilding all parameters, technicians load the saved configuration into the replacement controller.

After loading the file, the sphere should be checked section by section.

A test image with clear numbers, lines, arrows, and different blocks is more useful than a normal video.

Technicians should check whether the top, bottom, left, right, front, and rear areas all show the correct content.

Check Receiving Card Coordinates Carefully

Receiving card coordinates are especially important for spherical LED displays.

A sphere does not have a simple rectangular physical layout, even though the control software usually treats the display as a flat pixel canvas.

For this reason, the relationship between the software coordinates and physical module positions must remain consistent.

If one receiving card is assigned to the wrong coordinate, the image may jump from one part of the sphere to another.

During the recovery test, technicians should compare the actual receiving card position with the saved mapping record.

This makes it easier to identify whether a problem comes from software configuration or physical signal wiring.

Verify More Than Basic Image Output

A successful recovery test should not stop when the screen simply displays an image.

Technicians should also test:

• full white
• full red
• full green
• full blue
• grayscale images
• horizontal lines
• vertical lines
• moving text
• rotating graphics

These test patterns help reveal mapping errors that may not be obvious during normal video playback.

A slowly rotating graphic is especially useful for a spherical LED display because technicians can watch whether the image moves continuously across different module sections.

If the picture suddenly jumps, reverses, or disappears, the mapping should be checked again.

Configuration Files and Spare Parts Should Stay Together

For a customized LED display, spare hardware is useful, but spare parts alone are not enough.

A project may include spare LED modules, receiving cards, power supplies, and cables.

The configuration files should be treated as another important spare resource.

For long-term maintenance, it is better to keep the controller model, software version, configuration file, wiring diagram, and receiving card map together.

This makes future service much easier.

Example: Recovering a Sphere After Controller Failure

Consider a spherical LED display installed in a commercial exhibition area.

After long-term operation, the original sending controller fails and must be replaced.

The replacement controller powers the display, but several parts of the sphere show incorrect content.

Instead of manually rebuilding the screen configuration, the technician loads the original backup file.

After checking the receiving card connection and screen parameters, most of the image returns immediately.

A numbered test pattern is then used to verify each area of the sphere.

One section still shows the wrong image position. The technician compares the receiving card map and finds that two signal cables were connected in the opposite order.

After correcting the cable order, the complete display returns to normal operation.

This shows why both configuration backup and physical mapping records are important.

FAQ

Can a spherical LED display be restored after controller replacement?

Yes. If the correct configuration files and hardware information have been saved, the display can usually be restored much faster.

Is replacing the controller enough?

No. The new controller normally needs the correct screen parameters, receiving card settings, and mapping configuration.

Should configuration files be backed up before shipment?

Yes. The final working configuration should be saved after testing.

Why use numbered test images?

Numbered images make it easier to identify incorrect module positions, reversed sections, and receiving card mapping errors.

Can configuration recovery replace hardware troubleshooting?

No. If the configuration is correct but part of the screen remains abnormal, technicians should continue checking signal cables, receiving cards, modules, and power connections.

Reliable Configuration Support for Customized LED Displays

A spherical LED display should be designed not only for installation, but also for future maintenance.

At TOOSLED, customized LED display projects can be tested with complete control configurations before shipment. Recording receiving card positions, signal order, and final screen parameters can make future controller replacement much easier.

For spherical LED displays and other customized LED screen projects, a clear recovery plan helps reduce troubleshooting time and prevents configuration problems from being mistaken for hardware failures.
