What Do “Dead Pixels,” “Dead Rows,” and “Dead Columns” Mean in LED Display Modules?

In LED display modules, terms such as dead pixel, dead row, and dead column describe common display faults that affect image quality and screen performance. These issues usually appear during production testing, aging tests, transportation, installation, or long-term operation.

Understanding these fault types helps technicians diagnose problems quickly and maintain stable LED screen performance.

1. What Is a Dead Pixel ?

A dead pixel refers to a single LED lamp bead that does not light up properly or displays abnormal colors.

Typical Symptoms

• A small black dot appears on the screen
• One pixel stays dark while surrounding pixels work normally
• The pixel shows incorrect colors during operation

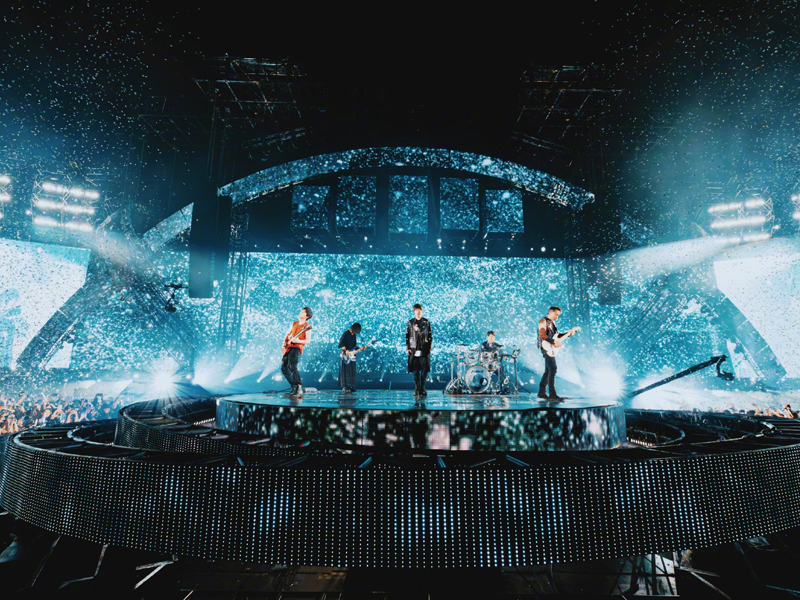

On high-resolution LED displays, viewers can easily notice dead pixels at close viewing distances.

Common Causes

Several factors can cause dead pixels, including:

• Damaged LED lamp beads
• Cold solder joints or poor soldering
• Failure of a driver IC channel
• Broken PCB traces
• Component aging

Impact on the Display

Among the three fault types, dead pixels are usually the least serious. A few isolated dead pixels normally do not affect overall screen operation, although they can reduce visual quality.

Industry Standards

Different LED display quality grades set strict limits on acceptable dead pixels.

For example:

• Grade A LED screens allow extremely few dead pixels
• Grade B or C screens permit slightly higher defect rates

2. What Is a Dead Row ?

A dead row occurs when an entire horizontal line of LEDs stops working simultaneously.

Typical Symptoms

• A horizontal black line appears across the module
• One row displays abnormal colors
• A complete scan line fails during operation

Because the fault affects many pixels at once, the visual impact becomes much more noticeable.

Common Causes

Dead row problems often relate to scanning circuitry issues, such as:

• Damaged row driver chips
• Scan signal line failure
• Loose FPC or ribbon cable connections
• Power supply abnormalities
• Faulty solder joints

Some systems use row-driving ICs such as the 74HC595 series, and failures in these components can disable an entire row.

Repair Difficulty

Technicians usually need to:

• Replace driver ICs
• Inspect scan circuits
• Check connectors and signal cables

Compared with dead pixels, dead row repairs require more technical troubleshooting.

3. What Is a Dead Column?

A dead column occurs when an entire vertical column of LEDs fails simultaneously.

Typical Symptoms

• A vertical black line appears on the display
• One column shows abnormal brightness or color
• Multiple LEDs fail in the same vertical direction

Like dead rows, dead columns create obvious visual defects.

Common Causes

Dead column failures usually involve the data-driving side of the module, including:

• Constant-current driver IC damage
• Broken column data lines
• Loose module ribbon cables
• Driver channel failure

Common constant-current ICs such as MBI5153 or ICN series chips may cause dead column issues if one output channel fails.

Repair Difficulty

Repair methods often include:

• Replacing constant-current driver ICs
• Checking PCB traces
• Reseating data cables
• Replacing damaged modules

Comparison of the Three Fault Types

Important Considerations in Real Applications

Factory Testing

Professional LED manufacturers perform strict aging and quality tests before shipment. During this process, technicians carefully inspect modules for dead pixels, dead rows, and dead columns.

Manufacturers usually repair or reject defective modules before delivery.

On-Site Maintenance

After installation, repairing an entire module on-site often takes less time than troubleshooting individual circuit components. Therefore, technicians commonly replace the whole module when serious row or column failures appear.

Special Challenges for Irregular LED Screens

Curved LED displays, spherical screens, and other irregular LED structures experience higher mechanical stress than flat screens. Because of this, ribbon cables and connectors may loosen more easily over time.

As a result, irregular LED displays often face slightly higher risks of dead row and dead column failures.

Conclusion

Dead pixels, dead rows, and dead columns represent three common fault types in LED display modules. Although all three affect image quality, they differ significantly in severity, causes, and repair methods.

• Dead pixels affect only individual LEDs and usually cause minor visual issues.
• Dead rows and dead columns affect entire lines of pixels and create much more noticeable display defects.

For modern LED displays — especially high-resolution and irregular LED screens — strict quality control, stable driver circuitry, and reliable module connections remain essential for preventing these issues and ensuring long-term display stability.
