How to Achieve Low Latency in Custom LED Displays

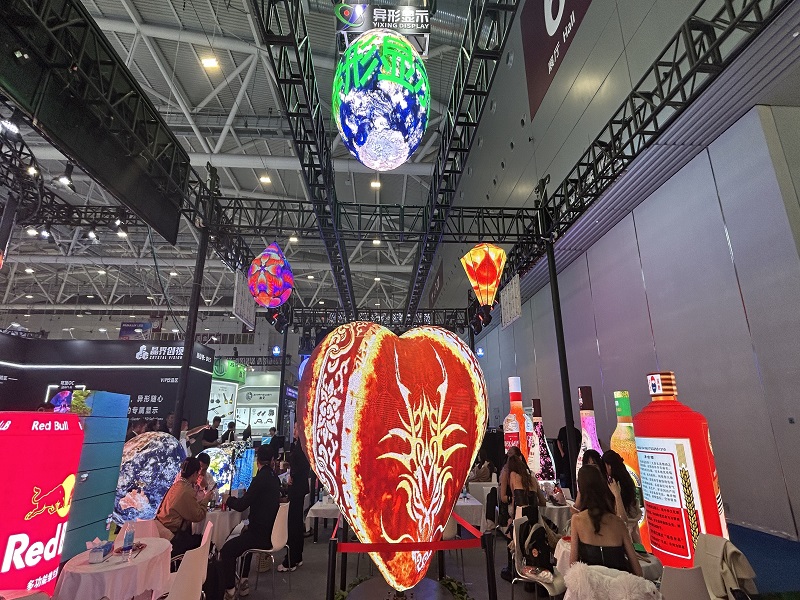

To achieve ultra-low latency in irregular LED displays — including spherical, cylindrical, wave-shaped, and cube LED screens — engineers must build a fully synchronized end-to-end control architecture. The goal is to minimize delay across every stage of the signal chain, from the video source to the final LED pixel output, reducing latency to the millisecond or even microsecond level.

1. Use a Fully Synchronous Control Architecture

Low latency starts with synchronous control.

Asynchronous systems cannot guarantee predictable timing because each receiving card refreshes independently without a unified clock reference. This creates unavoidable latency fluctuations and synchronization inconsistencies.

Therefore, irregular LED screens that require low latency must use synchronous control systems so that every display module refreshes the same frame at exactly the same moment.

This is especially critical for:

• Live broadcasting
• XR virtual production
• Stage performances
• Esports events
• Interactive installations
• Sports arenas

2. Hardware Layer: Replace Generic Controllers with FPGA-Based Systems

FPGA Becomes the Real-Time Core

FPGA (Field-Programmable Gate Array) architecture plays a crucial role in ultra-low-latency LED systems.

Unlike CPU-based systems, FPGA devices process data in true parallel pipelines. They move video signals from input to output within only a few clock cycles and avoid operating system interruptions entirely.

As a result, FPGA systems can maintain timing jitter below 10 ns.

Use Dedicated Low-Latency Controllers for Irregular Screens

Irregular LED displays require specialized controllers designed specifically for non-standard geometries and real-time rendering.

For example, controllers such as the Moseil B1200ES irregular-display controller can reduce video-source output latency to less than 1 ms while maintaining only one-frame delay on the receiving side.

These systems also support:

• Arbitrary image rotation
• Mirroring
• Curved-surface mapping
• Real-time geometric correction

Therefore, they fit perfectly into demanding applications such as stage productions and broadcast environments.

3. Transmission Layer: Fiber Optics Replace Traditional Ethernet

CAT6 for Short Distance, Fiber for Long Distance

Standard Ethernet cables experience signal attenuation and electromagnetic interference over long distances. Once cable lengths exceed roughly 70 meters, latency inconsistency becomes a serious problem.

Fiber optic transmission solves this issue.

Compared with copper cables, fiber provides:

• Stable latency within ±1 ns
• Kilometer-level transmission capability
• Extremely low bit error rates (10⁻¹² level)
• Strong resistance to electromagnetic interference

For large irregular LED installations, fiber becomes essential.

Deploy Industrial Ethernet Switches

Low-latency systems should also use industrial-grade switches instead of consumer networking equipment.

Engineers typically enable:

• IGMP Snooping to prevent broadcast storms
• QoS (Quality of Service) for video priority
• VLAN segmentation for traffic isolation

These features help prevent congestion-related latency spikes during high-bandwidth video transmission.

4. System Layer: Build a Unified Clock and Frame Synchronization Mechanism

IEEE 1588 PTP Precision Time Protocol

PTP (Precision Time Protocol) allows the master controller to distribute highly accurate timestamps to all receiving cards.

Each receiving card calibrates its local oscillator according to the master clock and refreshes frames at precisely scheduled moments.

With proper implementation, synchronization accuracy can reach ±500 ns.

Preamble Frame Synchronization Method

Many LED systems use a more practical synchronization method based on frame headers.

In this approach:

1. The controller inserts a special synchronization header before every frame.
2. All receiving cards detect the header simultaneously.
3. Each card starts a local timer.
4. After a fixed delay, all cards trigger the LAT (latch) signal together.

Even if network delays cause some cards to receive data slightly later than others, the system can still maintain synchronization by waiting for the slowest node before refreshing the frame.

DDR Cache on Receiving Cards

Each receiving card should include at least 64 MB of DDR3 memory.

This cache absorbs network jitter and ensures complete frame buffering before synchronization occurs.

Without sufficient cache memory, frame tearing and timing instability may appear during high-speed playback.

5. Engineering Layer: Optimize Wiring and Timing for Irregular Structures

Irregular LED displays introduce unique engineering challenges because module layouts rarely follow standard rectangular patterns.

Equal-Length Signal Routing

The three most critical signals are:

• CLK (clock)
• LAT (latch)
• OE (output enable)

Engineers must keep these signal paths as equal in length as possible.

Even a 5 cm difference in CLK routing can cause:

• Bright lines
• Flickering
• Partial desynchronization

Therefore, designers often use serpentine routing techniques to compensate for path differences.

Impedance Matching and Grounding

Stable signal integrity requires proper electrical design.

Best practices include:

• Matching CLK trace impedance to 50 Ω
• Adding 120 Ω terminal resistors at the final driver IC
• Using common grounding for all receiving cards
• Placing 0.1 μF ceramic decoupling capacitors near every driver IC

These measures suppress signal reflection, reduce ground bounce noise, and stabilize synchronization signals.

Temperature Compensation

When internal cabinet temperatures exceed 60°C, oscillator frequency drift becomes noticeable.

To prevent timing deviation, engineers often install NTC temperature sensors for dynamic frequency compensation, especially in high-temperature summer environments.

6. Typical Low-Latency Performance Targets

By combining all these technologies, irregular LED systems can achieve the following performance levels:

7. Low-Latency Checklist for Irregular LED Screens

Control Architecture

• Use synchronous control only
• Avoid asynchronous systems entirely

Main Controller

• Choose FPGA-based architecture
• Use dedicated low-latency irregular-display controllers

Transmission

• Use fiber optic transmission for long distance
• Use CAT6 plus industrial switches for short distance

Synchronization

• Enable PTP or preamble-frame synchronization
• Ensure unified frame refresh across the entire display

Receiving Cards

• Equip each receiving card with at least 64 MB DDR cache

Electrical Engineering

• Maintain equal-length CLK/LAT/OE routing
• Use 50 Ω impedance matching
• Ensure proper grounding
• Add temperature compensation mechanisms

Irregular Mapping

• Use video processors with automatic UV unfolding and real-time geometric correction
• Minimize latency introduced during shape mapping

Conclusion

Low latency in irregular LED displays does not come from optimizing a single component. Instead, it requires a complete end-to-end engineering strategy that combines:

• Dedicated FPGA controllers
• Fiber optic transmission
• Unified clock synchronization
• Precision signal routing
• Real-time geometric mapping

Only when every stage works together can an irregular LED screen achieve true ultra-low-latency performance.
