How to Configure Irregular LED Screens

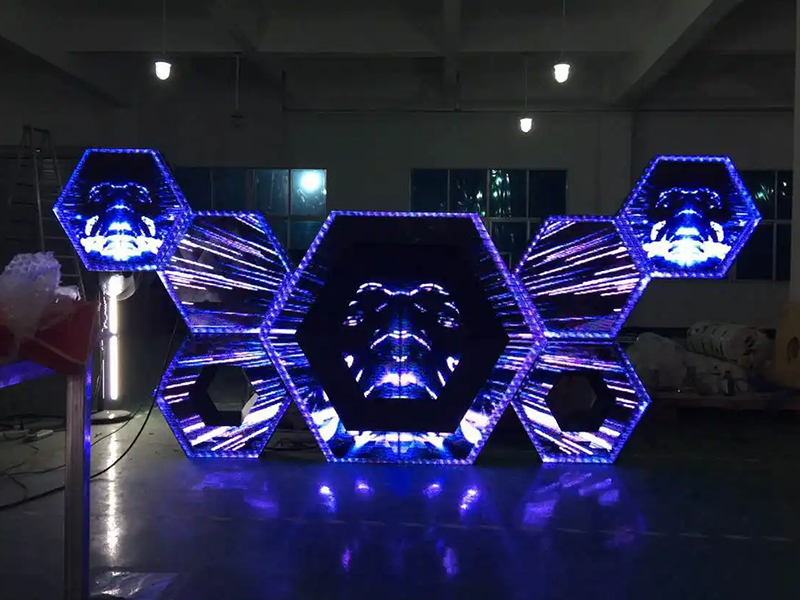

Modern stage design no longer relies on flat rectangular LED walls alone. Today, concert tours, immersive exhibitions, esports stages, and retail flagship stores increasingly use irregular LED screens to create visually striking environments. Diamond-shaped displays, tilted LED panels, cube LED screens, and geometric video walls have become standard in high-end visual productions.

However, many technicians quickly discover that building an irregular LED screen is not simply about physical installation. The real challenge lies in video mapping, pixel coordination, and content rotation.

A popular discussion in the Reddit video engineering community recently highlighted this exact issue: how professionals configure a 45-degree rotated LED wall using NovaLCT, SmartLCT, and Resolume. The conversation revealed several important industry practices that many LED newcomers do not fully understand.

This article explains how irregular LED screens actually work, how professionals configure them, and why media servers like Resolume have become essential in modern LED workflows.

The Biggest Misunderstanding About Irregular LED Screens

Many people assume LED control systems automatically recognize custom shapes.

They do not.

LED processors only recognize pixel coordinates arranged in rows and columns.

Even if your screen physically looks like a diamond or a cube, the controller still sees it as a rectangular pixel canvas.

Therefore, engineers must rebuild the physical structure into a digital coordinate system.

This is where NovaLCT, SmartLCT, and media servers enter the workflow.

Why Many Engineers Physically Rotate the LED Panels

In the Reddit discussion, several professionals recommended physically rotating the LED cabinets by 45 degrees.

This approach has become common in:

• Concert stages
• EDM festivals
• Touring productions
• Immersive art installations

Instead of forcing the LED processor to create complex geometry, technicians simply:

1. Rotate the cabinets physically
2. Configure the screen normally inside NovaLCT
3. Rotate the content output in Resolume or another media server

This method dramatically simplifies setup and improves stability.

Why NovaLCT Usually Handles Only Basic Screen Mapping

NovaLCT’s primary job is screen management.

It handles:

• Receiving card configuration
• Cabinet arrangement
• Signal routing
• Pixel loading
• Brightness calibration
• Display communication

However, NovaLCT is not designed to be a full creative mapping engine.

Although some NovaStar processors support image rotation, many engineers avoid relying on processor-based rotation for complex irregular screens.

Why?

Because processor rotation depends on:

• Processor compatibility
• Receiving card support
• Firmware versions
• HUB board limitations

If any component lacks proper support, users may encounter:

• Scan line errors
• Pixel displacement
• Gray scale issues
• Image tearing
• Display artifacts

As a result, professionals often prefer external media servers for advanced mapping.

Why Resolume Is Popular for Irregular LED Screens

Resolume has become one of the most widely used media servers for creative LED mapping.

It allows technicians to:

• Rotate content freely
• Create custom output slices
• Build non-rectangular mappings
• Adjust perspective
• Compensate for physical gaps
• Design complex geometric layouts

For irregular LED projects, Resolume essentially becomes the “visual brain” of the system.

Meanwhile, NovaLCT simply ensures the LED hardware displays the incoming signal correctly.

This division of responsibilities creates a more flexible and reliable workflow.

SmartLCT vs NovaLCT for Irregular LED Projects

Many beginners ask whether SmartLCT is better for irregular LED walls.

The answer depends on project complexity.

SmartLCT works well for:

• Large conventional LED walls
• Multi-window layouts
• Standard commercial displays
• Quick visualization planning

However, for advanced irregular LED installations, many experienced technicians still prefer:

• NovaLCT for hardware control
• Resolume for creative mapping
• Dedicated media servers for advanced playback

This combination offers greater control over unusual geometries and dynamic stage visuals.

Conclusions

Irregular LED screens may look visually complex, but their underlying logic is surprisingly straightforward.

Professional engineers rarely force LED processors to handle complicated geometry directly. Instead, they separate the workflow into two layers:

• LED processors manage hardware and pixel communication
• Media servers manage creative mapping and rotation

That is why tools like NovaLCT and Resolume remain central to modern stage and immersive display production.

Whether you are building a diamond LED wall, a cube display, or a fully immersive installation, mastering coordinate mapping is the key to successful irregular LED screen configuration.
