LED Video Wall Installation Guide: Tips to Avoid Costly Mistakes

Installing an LED video wall looks straightforward on paper — until panels start misaligning, tiles crack, heat builds up, or the client realizes the screen doesn’t match their content workflow. Even experienced AV integrators run into problems during LED deployments.

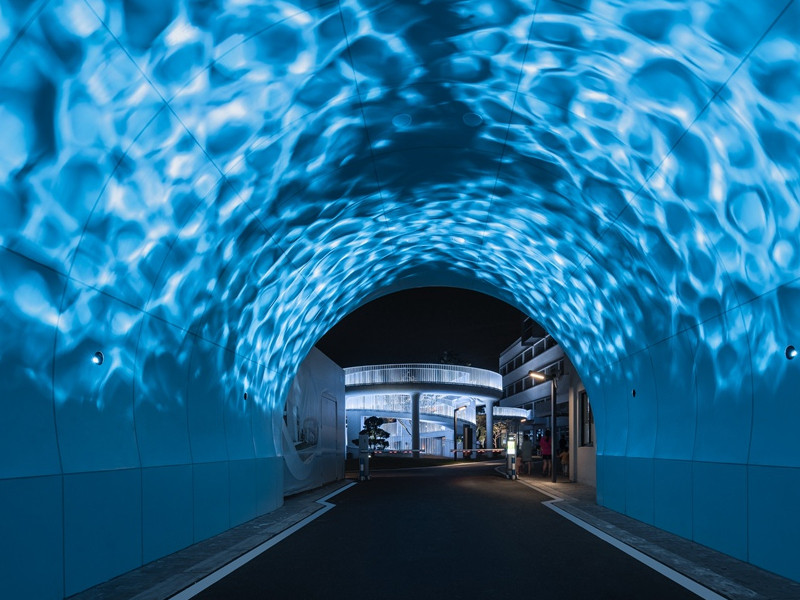

Whether you’re working on a fine-pitch indoor display, a curved LED wall, or a custom-shaped LED screen installation, proper planning matters just as much as the hardware itself. Below are practical field-tested insights from professional installers and integrators with years of hands-on experience.

1. Get the LED Manufacturer Involved Early

One of the smartest moves you can make is bringing the LED manufacturer onsite during installation and commissioning.

Why this matters:

• Manufacturers understand the cabinet tolerances better than anyone
• They can supervise alignment and calibration
• They help ensure the display meets factory specifications before client sign-off
• Responsibility becomes shared if visual issues appear later

Many experienced integrators also recommend requesting formal installation training from the manufacturer before the project begins. Fine-pitch LED systems leave very little room for error, especially when working with pixel pitches around 1.2mm–2.5mm.

A single millimeter of misalignment can become visible immediately.

2. Wall Flatness Is Critical — But There’s Debate

One installer emphasized that the backing wall must be perfectly level and plumb:

Any waves in drywall or plywood will transfer directly to the LED surface, creating visible imperfections and increasing the risk of damaging tiles.

This is especially true for:

• Direct-wall mounting systems
• Fine-pitch LED walls
• Large seamless displays

Because LED pixels are extremely close together, even slight inconsistencies can become noticeable under content playback and lighting conditions.

However, Not Every Installer Agrees

Another veteran installer with over 10 years of experience pushed back on the idea that the wall itself must be perfectly flat.

Their argument:

• A properly engineered mounting system can compensate for uneven walls
• Professional bracket systems allow adjustment on the X, Y, and Z axes
• Dedicated mounting frames often produce better long-term results than mounting directly to drywall or plywood

This is an important distinction.

The Real Best Practice

The most reliable LED installations typically use:

• A dedicated structural mounting frame
• Adjustable mounting brackets
• Secondary rigging support
• Precision alignment systems

Rather than relying entirely on the wall surface itself.

Professional systems such as modular mounting frames make installation:

• Faster
• More serviceable
• Easier to align
• Safer for delicate LED cabinets

3. Plan Cable Paths and Backbox Locations Early

One issue that constantly causes delays is lack of rear clearance.

LED walls require space for:

• Power connectors
• Signal cabling
• Data distribution
• Service access
• Ventilation

If electrical boxes, conduit, or structural framing collide with the mounting frame, installers may be forced to redesign portions of the wall onsite — which is expensive and time-consuming.

Best Practice

Before installation:

• Map the exact frame dimensions
• Identify all cable routes
• Verify rear clearance depth
• Coordinate with electrical and HVAC teams
• Confirm service access locations

Remember:
There is almost never “extra space” behind an LED wall.

4. Don’t Ignore Heat Output and HVAC Requirements

This is one of the most overlooked aspects of LED video wall projects.

LED displays generate significant heat, especially high-brightness models. Many systems push roughly 70% of their heat output forward into the room.

If HVAC planning is ignored:

• Rooms become uncomfortable
• Electronics may overheat
• Fan noise increases
• Clients may blame the AV integrator later

Important Recommendation

Submit:

• Power consumption calculations
• BTU heat load calculations
• Electrical requirements

Well before project approval.

This protects both the integrator and the client from costly HVAC redesigns later.

5. Confirm Resolution and Aspect Ratio Expectations

Clients often focus on physical screen size while overlooking pixel dimensions and aspect ratio.

This becomes a major issue when:

• Installing ultra-wide LED walls
• Creating curved displays
• Building custom-shaped screens
• Integrating broadcast or cable content

For example:
A client may request an artistic LED shape but still expect standard 16:9 content to display perfectly.

Without proper planning:

• Content scaling issues appear
• Black bars become visible
• Resolution may not match source material
• Media servers become necessary

Always Clarify

Before fabrication:

• Total pixel resolution
• Native aspect ratio
• Intended content sources
• Signal formats
• Processing requirements

Setting these expectations early prevents disputes later.

Direct Wall Mount vs Adjustable Frame Systems

Here’s a simplified comparison installers often debate:

For professional-grade installations, adjustable frame systems are generally preferred.

Final Thoughts

LED video wall installation is as much about engineering and planning as it is about display technology.

The biggest installation problems usually come from:

• Poor structural planning
• Inadequate mounting systems
• Heat management oversight
• Unrealistic client expectations
• Lack of alignment precision

Successful projects rely on:

• Early coordination
• Precise mounting infrastructure
• Manufacturer involvement
• Thorough system calculations
• Clear communication with the client

In modern fine-pitch LED environments, precision is everything. A display may look flawless in CAD drawings, but real-world installation tolerances determine whether the final result looks premium — or problematic.
