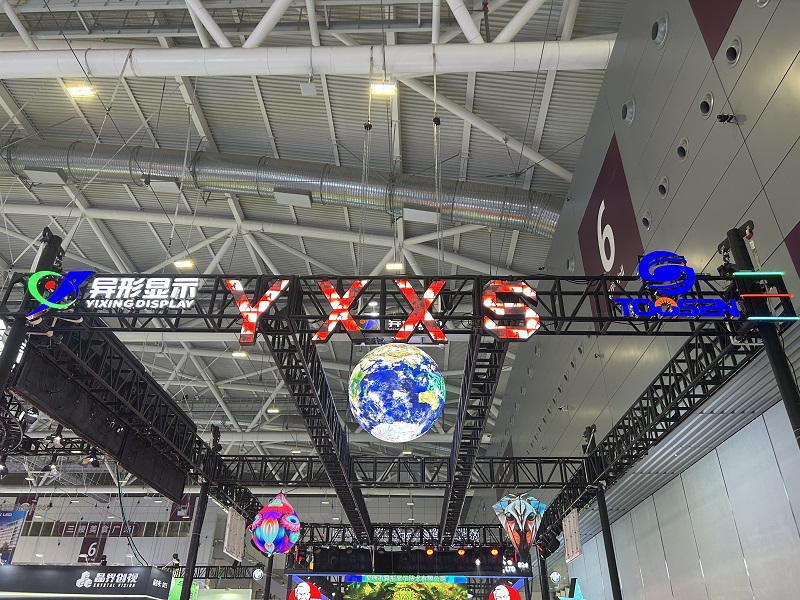

How to Install a Wall-Mounted Letter-Shaped LED Display

Installing a letter-shaped LED display, often called a custom LED letter screen or irregular LED display, requires more precision than installing a standard rectangular LED screen. Because each letter has a unique shape, installers must focus not only on structural stability but also on alignment, aesthetics, and long-term reliability.

The installation process typically consists of five key stages.

1. Site Inspection and Preparation

Before installation begins, carefully evaluate the site to ensure the wall and surrounding environment can support the display.

Check the Wall Structure

First, identify the wall material. Common installation surfaces include:

• Concrete walls
• Solid brick walls
• Steel structures
• Gypsum board (drywall) walls

If the installation surface consists of drywall or another lightweight material, reinforce it with plywood backing or a steel support structure before mounting the display.

Plan Power and Signal Routing

Next, determine where the main power cable and data cables will enter the display. In most projects, installers conceal these cables inside the wall directly behind the letters to maintain a clean appearance and eliminate visible wiring.

2. Build and Install the Supporting Structure

Because letter-shaped LED screens do not have a standard rectangular frame, they typically require a custom steel support structure or mounting plate.

Mark the Installation Positions

Installers usually begin by attaching a full-scale 1:1 layout drawing to the wall. Using laser levels and measuring tools, they carefully mark the exact locations of every mounting point.

This step ensures perfect spacing and alignment before drilling begins.

Install the Mounting Frame

After marking all positions, drill the required holes and install expansion bolts.

Then secure the custom steel frame or aluminum mounting structure firmly to the wall. A strong and accurately positioned support structure creates the foundation for a successful installation.

3. Mount the Letter Cabinets

Manufacturers typically deliver each LED letter as an independent cabinet that arrives pre-assembled and ready for installation.

Position Each Letter

Carefully mount each letter onto its designated section of the support structure. Follow the installation drawing to ensure proper placement and spacing.

Adjust Alignment and Flatness

This stage is one of the most critical parts of the entire installation process.

Use laser levels and spirit levels continuously to verify that:

• All letters align perfectly on the same horizontal plane.
• The front surfaces remain completely flush.
• No letter protrudes forward or tilts backward.

Even small alignment errors can affect the overall visual quality of the display.

Secure the Cabinets

Once alignment is complete, tighten all mounting hardware and lock each cabinet firmly into position.

4. Complete Power and Signal Connections

Since the internal space inside letter-shaped displays is often limited, technicians must organize cables carefully to ensure stable operation and simplify future maintenance.

Connect the Power Supply

Connect the power supplies inside each letter cabinet to the main electrical feed.

Depending on the design, the internal power supplies typically convert 220V AC power into 5V, 12V, or 24V DC output for the LED modules.

At the same time, balance the electrical load properly across the system to prevent circuit overloads.

Connect the Signal Network

Next, connect the letters according to the manufacturer’s signal topology diagram.

In most cases, installers use Ethernet cables to create a daisy-chain connection:

Letter A → Letter B → Letter C → Letter D

The final connection links to the main controller, sending card, or media player that manages the display content.

5. System Configuration and Finishing Work

After completing the physical installation and wiring, perform a full system test and finish the display’s exterior details.

Perform Initial Power Testing

When powering the display for the first time, energize part of the system first and inspect for any abnormal conditions.

After confirming that all components operate normally, power on the entire display and verify stable performance.

Configure the Control Software

Import the corresponding mapping file or configuration file into the LED control software.

This step allows the controller to recognize the unique shape of the letter display and map content correctly onto the irregular screen area.

Apply Waterproof Protection

For outdoor installations, waterproofing is essential.

Apply weather-resistant silicone sealant around all joints between the letter cabinets and the wall surface. This prevents rainwater and moisture from entering the structure and damaging internal electronics.

Install Decorative Trim

Finally, add decorative edge trims, cover plates, or branding elements to conceal mounting hardware and create a polished finished appearance.

Important Installation Consideration: Separate Power and Signal Cables

One of the most important practices when installing a letter-shaped LED display is maintaining separation between high-voltage and low-voltage wiring.

Because signal cables are sensitive to electromagnetic interference, installers should keep network cables at least 10 cm (4 inches) away from 220V power lines whenever possible. For even greater reliability, route them through separate conduits.

Proper cable separation helps prevent:

• Screen flickering
• Signal instability
• Horizontal noise lines
• Water ripple effects on the display image

By following this guideline, installers can significantly improve system stability and image quality.

Conclusion

A wall-mounted letter-shaped LED display combines creative design with powerful visual communication, but successful installation requires careful planning and precise execution. By properly inspecting the site, building a secure support structure, aligning each letter accurately, organizing power and signal wiring, and applying effective waterproof protection, businesses can create a durable, professional-looking display that delivers long-term performance and maximum visual impact.
