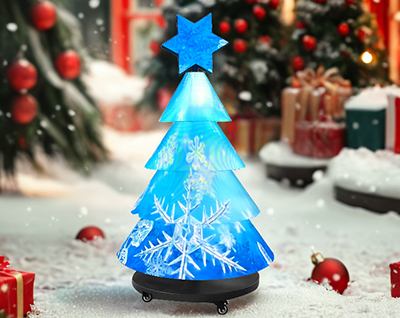

How to Calculate the Size and Module Quantity for a Christmas Tree LED Display

The basic calculation process is straightforward:

First determine the overall height and bottom width of the Christmas tree → divide the tree into several layers → calculate the LED modules required for each layer based on standard module sizes → then add all layers together to get the total module quantity.

Below is a practical calculation method with formulas and a real example that you can directly apply to your project.

1. Determine the Two Basic Parameters

1. Choose the LED Module Size

For indoor creative LED displays, the following module sizes are commonly used:

Standard LED Modules

• 320 × 160 mm
• 256 × 128 mm
• 160 × 160 mm

Small LED Modules

• 128 × 128 mm

Smaller modules are better for creating sharper angles and smoother curves, especially for Christmas tree shapes with pointed edges.

2. Define the Overall Tree Dimensions

Next, determine the overall dimensions of the Christmas tree:

• Total height: H
• Maximum bottom width: W

Since a Christmas tree is wider at the bottom and narrower at the top, designers usually divide the structure into 3 to 5 layers.

2. Standard Christmas Tree Layer Structure

A typical Christmas tree LED display uses a three-layer structure:

1. Top section
2. Middle section
3. Bottom section

Each layer is built from rectangular LED modules. After installation, the outer edges are trimmed or decorated to create the final Christmas tree silhouette.

In other words, the LED modules themselves remain rectangular, while the decorative frame or outer covering forms the triangular tree shape.

3. Calculation Formula

Assume:

• Module width = Wm
• Module height = Hm
• Required layer width = L
• Required layer height = h

Horizontal Module Quantity

$$N_w = \left\lceil \frac{L}{W_m} \right\rceil$$Nw​=⌈Wm​L​⌉

Vertical Module Quantity

$$N_h = \left\lceil \frac{h}{H_m} \right\rceil$$Nh​=⌈Hm​h​⌉

Total Modules for One Layer

$$N = N_w \times N_h$$N=Nw​×Nh​

Total Modules for the Entire Screen

$$N_{total} = N_{top} + N_{middle} + N_{bottom}$$Ntotal​=Ntop​+Nmiddle​+Nbottom​

Note:
The symbol $\lceil x \rceil$⌈x⌉ means rounding up.
Even if the remaining space is smaller than one full module, it still requires one complete module.

4. Practical Example

Project Specifications

LED Module Size

• 256 mm × 128 mm

Christmas Tree Dimensions

• Total height: 3000 mm

3-Layer Structure

5. Step-by-Step Calculation

1. Top Layer

Horizontal Modules

$$600 \div 256 \approx 2.34$$

Round up:$$3 \text{ modules}$$

Vertical Modules

$$800 \div 128 \approx 6.25$$

Round up:$$7 \text{ modules}$$

Total Modules for Top Layer

$$3 \times 7 = 21$$

So, the top layer requires:$$21 \text{ modules}$$

2. Middle Layer

Horizontal Modules

$$1200 \div 256 \approx 4.69$$

Round up:$$5 \text{ modules}$$

Vertical Modules

$$1000 \div 128 \approx 7.81$$

Round up:$$8 \text{ modules}$$

Total Modules for Middle Layer

$$5 \times 8 = 40$$

So, the middle layer requires:$$40 \text{ modules}$$

3. Bottom Layer

Horizontal Modules

$$1800 \div 256 \approx 7.03$$

Round up:$$8 \text{ modules}$$

Vertical Modules

$$1200 \div 128 \approx 9.38$$

Round up:$$10 \text{ modules}$$

Total Modules for Bottom Layer

$$8 \times 10 = 80$$

So, the bottom layer requires:$$80 \text{ modules}$$

6. Final Total Module Quantity

$$21 + 40 + 80 = 141$$

Therefore, the complete Christmas tree LED display requires:$$141 \text{ LED modules}$$

Additional Design Tips

When designing a Christmas tree LED display, consider the following factors in addition to module quantity:

• Structural frame strength
• Weight distribution
• Cable routing
• Maintenance access
• Decorative edge finishing
• Pixel pitch and viewing distance
• Indoor or outdoor installation environment

For more complex curved or irregular Christmas tree designs, smaller LED modules usually provide better visual results and smoother contours.
