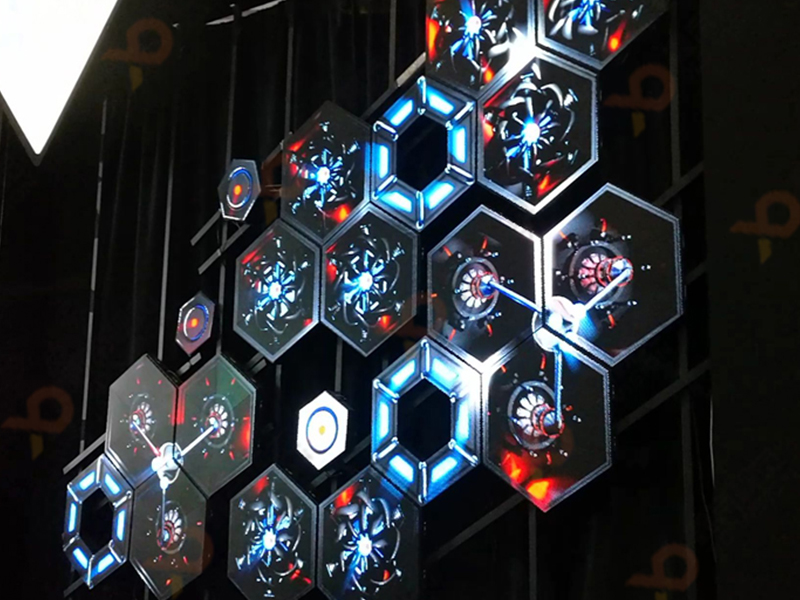

LED Video Wall Signal Flow Explained

If you don’t understand signal flow, you don’t control your LED wall—the system controls you.

Many issues—black screens, scaling errors, latency—come down to one thing: a broken or misunderstood signal chain.

So let’s break it down clearly.

What Is LED Video Wall Signal Flow?

Signal flow describes how video travels from your source to the LED panels.

In a typical setup, the path looks like this:

Source → Processor → Sending Card → Receiving Card → LED Panels

Each step plays a specific role. If one fails, the entire system fails.

Step-by-Step Breakdown of the Signal Chain

1. Source (Where the Content Starts)

Your signal begins at a source device, such as:

• Media server (Resolume, Disguise, etc.)
• Laptop or workstation
• Camera system

At this stage, the content has a defined resolution and frame rate.

2. LED Processor (The Brain of the System)

Next, the signal enters the LED processor.

This device does the heavy lifting:

• Scales content to match the LED wall resolution
• Splits the image across multiple outputs
• Manages color, brightness, and refresh rate

If your image looks wrong, the processor is the first place to check.

3. Sending Card (Signal Distributor)

After processing, the signal moves to the sending card.

Its job is simple:

• Convert video into LED-compatible data
• Send that data through Ethernet cables

Think of it as a translator between video and LED hardware.

4. Receiving Card (Inside Each Panel)

Each LED cabinet contains a receiving card.

It:

• Receives data from the sending card
• Interprets pixel information
• Passes data along the chain

Without correct configuration here, panels won’t display properly.

5. LED Panels (Final Output)

Finally, the signal reaches the LED modules.

At this point:

• Each pixel lights up based on received data
• The full image appears across all panels

If everything is configured correctly, the image looks seamless.

Why Signal Flow Matters

You might connect everything correctly and still get errors.

Why? Because physical wiring is only half the story.

Signal flow determines:

• Image alignment
• Resolution accuracy
• Latency
• Stability

Without understanding it, troubleshooting becomes guesswork.

Common Signal Flow Problems (And Causes)

1. No Image (Black Screen)

Usually caused by:

• Wrong input source
• Incorrect processor configuration
• Broken signal chain

2. Image in Wrong Position

Often due to:

• Incorrect mapping
• Misconfigured receiving cards

3. Scaling Issues (Blurred or Stretched Image)

This happens when:

• Input resolution ≠ LED wall resolution
• Processor scaling is misconfigured

4. Flickering or Signal Drop

Typically caused by:

• Overloaded ports
• Poor cabling
• Signal interference

How to Debug Signal Flow (Practical Workflow)

Instead of guessing, follow the signal step by step:

1. Check the source output
   • Is it sending the correct resolution?
2. Verify processor input
   • Is the signal detected?
3. Inspect processor output mapping
   • Are ports assigned correctly?
4. Check sending card status
   • Are all outputs active?
5. Confirm receiving card configuration
   • Are panels mapped correctly?

Work forward, not randomly.

Best Practices for Clean Signal Flow

• Keep your signal chain simple
• Label all ports and cables
• Use consistent resolutions across devices
• Avoid unnecessary converters
• Always test before going live

Conclusion

Signal flow is not optional knowledge—it’s foundational.

Once you understand how data moves through the system, you gain:

• Faster troubleshooting
• More stable setups
• Better image quality

In other words, you stop reacting to problems and start preventing them.
