How We Created a Customized Curved GOB LED Display Solution for a Korean Lecture Hall

1.Why Choosing the Right Indoor LED Display Solution Matters

Why Choosing the Right Indoor LED Display Solution Matters

For a lecture hall, an LED display is not only a visual tool. It needs to provide clear images, stable operation and a comfortable viewing experience for audiences from different positions.

When selecting an indoor LED display, customers usually focus on more than brightness and pixel pitch. They also need to consider:

• Screen structure
• Installation environment
• Display reliability
• Future maintenance

Especially for large indoor spaces, a standard flat LED screen may not always meet the design requirements.

A customized structure, accurate cabinet connection and professional installation planning are often needed to achieve the best visual effect.

This was the situation we faced when we received an inquiry from a Korean customer looking for a customized curved LED display solution for a lecture hall.

This was the main challenge we helped solve for a Korean lecture hall project. Learn more about our customized Indoor LED display solutions for different commercial applications.

2.Project Background: Customized LED Display Solution for a Korean Lecture Hall

The customer first found us through Google and contacted our team to learn more about our indoor LED display solutions.

During the initial communication, the customer shared the project requirements, including the installation environment, screen shape and expected display effect.

Before moving forward, they compared different suppliers and focused on several important factors:

• LED display quality
• Manufacturing capability
• Customized design experience
• Project support

Because the project required a curved LED screen, a standard product could not meet the customer’s requirements.

Our engineering team worked with the customer to confirm the screen dimensions, curved structure and installation details.

After several rounds of communication, we completed the customized design drawings and provided the customer with a clear production plan.

To further understand our production capability, the customer visited our factory in China.

During the factory visit, they checked:

• LED module quality
• Raw material selection
• Cabinet production process
• Quality control procedures

After seeing the manufacturing process and discussing the details with our engineers, the customer gained more confidence in the project and decided to move forward with the customized GOB LED display solution.

3.Why SMD + GOB Technology Is Suitable for Indoor LED Displays

For indoor applications such as lecture halls, meeting rooms and conference spaces, image quality and reliability are two key requirements.

The customer finally selected an SMD + GOB LED display solution.

3.1 What Is SMD LED Technology?

SMD (Surface Mounted Device) is one of the most widely used LED display technologies.

The LED chips are directly mounted on the PCB board, providing:

• High brightness consistency
• Excellent color performance
• Wide viewing angle
• Stable display performance

For lecture hall environments, SMD technology ensures clear image reproduction during:

• Presentations
• Video playback
• Online meetings
• Educational content display

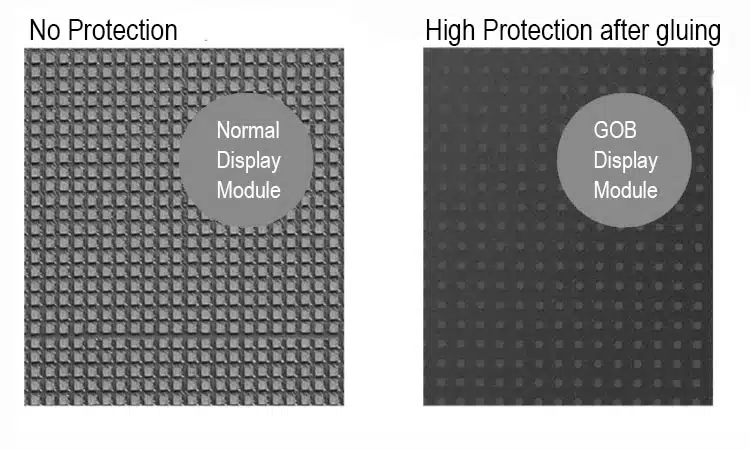

3.2 Why Add GOB Protection Technology?

GOB (Glue on Board) technology adds a transparent protective layer on the LED module surface.

Compared with traditional LED modules, a GOB LED display provides better protection and durability.

The advantages include:

• Improved resistance against dust
• Better protection against accidental impact
• Increased module durability
• Reduced maintenance requirements

For indoor environments where displays operate for many years, GOB technology helps improve product reliability.

This is why GOB LED displays are becoming increasingly popular for premium indoor LED display projects.

Learn more about our indoor LED display solutions and selection guide.

4.Customer Challenge: Creating a Precise Curved LED Display

The biggest challenge of this project was not the LED modules themselves.

It was the curved screen structure.

A customized curved LED display requires accurate control of:

• Cabinet angle
• Radius calculation
• Module connection
• Mechanical structure

Before production, our engineering team communicated with the customer several times to confirm:

• Required curvature
• Installation position
• Cabinet design
• Final visual effect

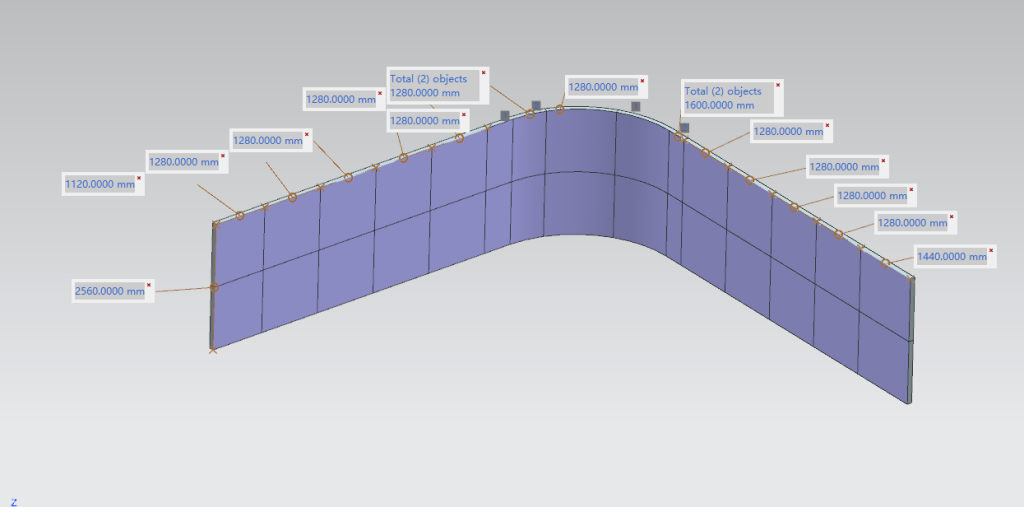

Based on the confirmed requirements, customized drawings were created before manufacturing.

This allowed the customer to clearly understand the final screen structure before production started.

5.Our Solution: From Design Drawing to Final Production

To solve the customer’s requirements, we provided a complete custom LED display solution.

5.1. Customized Structural Design

Our engineering team designed the LED cabinet structure according to the lecture hall environment.

The curved part was specially developed to achieve:

• Smooth curvature
• Accurate cabinet connection
• Easy installation
• Stable operation

5.2. Combination of Curved and Flat LED Screens

The project included multiple LED screens with different structures.

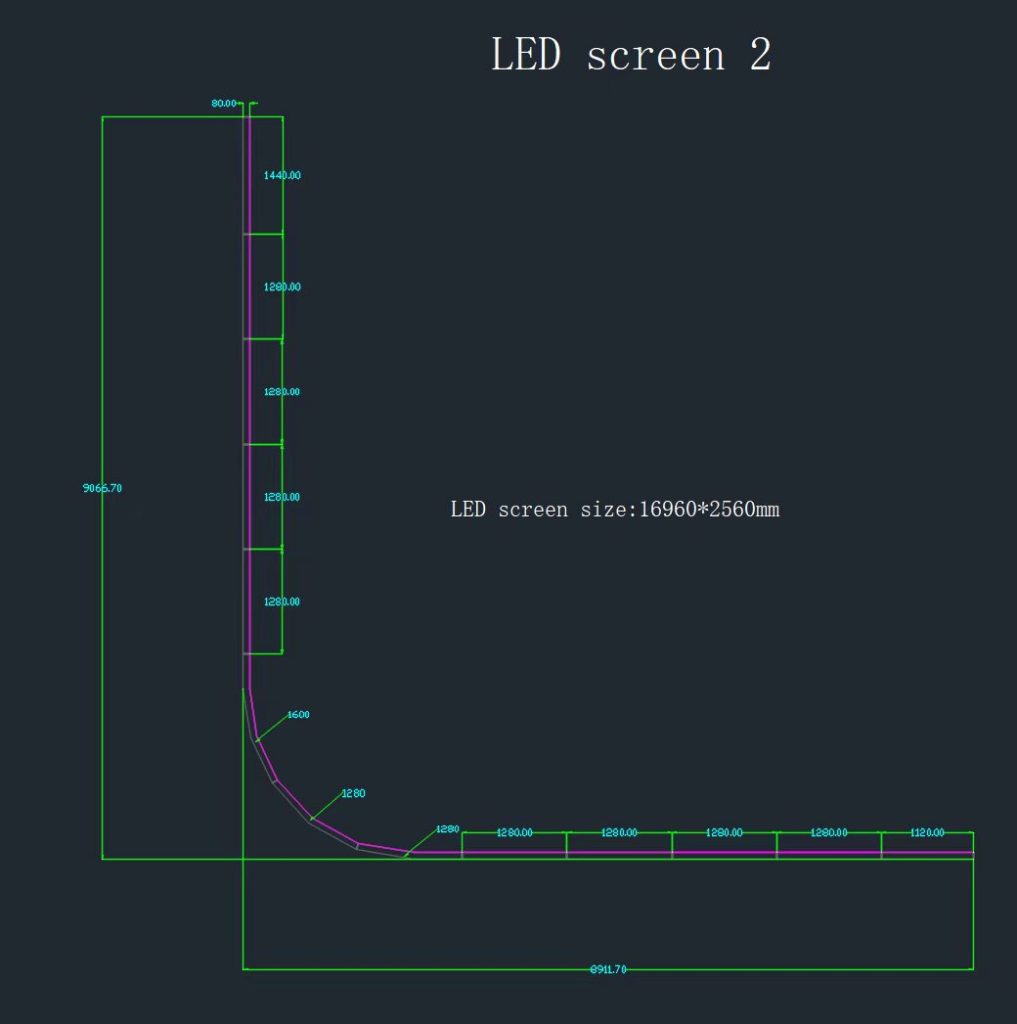

Main Curved LED Display

Size:

16960 × 2560mm

Area:

43.42㎡

Structure:

• Curved cabinet
• GOB LED module

This screen became the main visual display inside the lecture hall.

Additional Curved LED Display

Size:

10880 × 160mm

Area:

1.74㎡

Structure:

• Curved cabinet
• GOB LED module

Flat Indoor LED Displays

Other screens used:

• Die-casting aluminum cabinets
• Flat GOB LED modules

This combination allowed the complete system to match both functional requirements and architectural design.

6.Why The Customer Chose Our LED Display Solution

The customer selected our solution based on three main reasons.

1. Customized Engineering Capability

Unlike standard LED screens, this project required a customized curved structure.

Our engineering team provided:

• Technical communication
• Drawing design
• Structural adjustment
• Production support

2. Balanced Project Cost

Large LED display projects require a balance between quality and budget.

We provided a solution that considered:

• Product performance
• Manufacturing efficiency
• Project requirements

3. Reliable After-Sales Support

A lecture hall LED display is a long-term investment.

Therefore, technical support and maintenance service are important.

We continue supporting customers with:

• Technical guidance
• Product maintenance
• Solution support

7.Project Result: Successful Customized GOB LED Display Solution

Through close communication and customized engineering, we successfully delivered a complete LED display solution for the Korean lecture hall.

The project included:

• Customized curved GOB LED display
• Flat GOB LED display
• Customized cabinet design
• Professional manufacturing support

This project shows that successful LED solutions are not only about producing a screen.

They require understanding the application environment, solving structural challenges and providing long-term support.

FAQ About Customized GOB LED Displays

1. What is a GOB LED display?

A GOB LED display uses Glue on Board technology to add a protective layer on the LED module surface.

It improves durability and protects LED components from dust, impact and daily wear, making it suitable for indoor applications.

2. Why choose a GOB LED display for a lecture hall?

Lecture halls require stable operation and clear image quality.

A GOB LED display provides:

• Better protection
• Stable performance
• Lower maintenance requirements
• Longer service life

3. Can LED displays be customized into curved shapes?

Yes.

A curved LED display requires professional engineering design, including cabinet structure, radius calculation and installation planning.

Experienced LED manufacturers can customize screens according to different architectural environments.

4. What pixel pitch options are available for COB LED screens?

TOOSEN COB LED screens are available in P1.2, P1.5, P1.8, P1.9, P2, P2.5, P3 and P4 pixel pitch options, allowing customers to choose according to viewing distance and application requirements.

5. How long does an indoor LED display last?

A high-quality indoor LED display can operate reliably for many years when properly installed and maintained.

The lifespan depends on:

• LED component quality
• Operating environment
• Heat management
• Maintenance practices

Conclusion

Choosing an indoor LED display supplier means choosing a long-term technology partner.

For lecture halls, conference rooms and educational spaces, a customized GOB LED display solution provides excellent image quality, reliability and design flexibility.

If you are looking for a customized curved GOB LED display solution, our engineering team can help design the right solution based on your project requirements.
