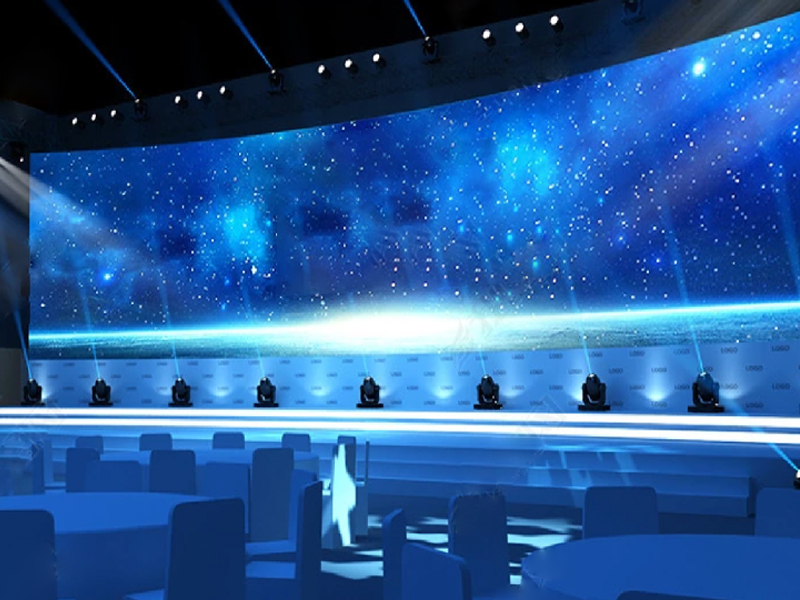

Why COB LED Panels Struggle to Become True Curved LED Displays

As curved and immersive LED installations become more popular in retail, stage design, museums, and virtual production, many people ask the same question: Why can’t COB LED panels easily become curved LED screens?

At first glance, COB technology looks ideal for premium displays. It delivers excellent protection, smooth visuals, and ultra-fine pixel pitches. However, when manufacturers try to bend COB panels into curved shapes, they run into major structural and engineering limitations.

The core issue comes down to one thing: COB technology was designed for rigid, flat displays—not flexible surfaces.

What Makes COB LED Different?

COB technology mounts LED chips directly onto a PCB substrate and then seals the entire surface with a protective resin layer.

Unlike traditional SMD LEDs, where each LED package works as an independent unit, COB creates a highly integrated surface. This design improves durability and visual consistency, but it also makes the panel far less flexible.

As a result, the same structure that gives COB its strengths also creates problems when engineers attempt to bend the display.

1. Rigid Packaging Makes Bending Extremely Difficult

The biggest challenge comes from the solid encapsulation layer.

After manufacturers apply and cure the protective resin, the surface becomes a rigid structure. If the PCB bends, the encapsulation layer cannot flex naturally with it.

This often leads to several serious issues:

• Cracking or separation of the resin layer
• Broken bonding wires between the chip and PCB
• Damage to internal electrical connections
• Reduced display reliability

In contrast, SMD LEDs use individually packaged lamp beads. Each component tolerates slight movement independently, which makes curved designs much easier to achieve.

2. Curved Structures Create Stress Concentration Problems

A curved LED screen always introduces mechanical stress.

When engineers bend a COB panel:

• The outer side stretches
• The inner side compresses
• Different materials expand and contract differently

Unfortunately, COB’s large continuous encapsulation surface cannot evenly distribute this stress.

Over time, repeated deformation and thermal cycling accelerate material fatigue. In demanding commercial environments, this can shorten the display’s lifespan and reduce long-term stability.

Therefore, even if a manufacturer successfully creates a slightly curved COB panel, maintaining reliability over years of operation becomes much more difficult.

3. Curvature Disrupts Optical Uniformity

One of COB’s biggest advantages is its excellent visual uniformity. The technology creates a smooth surface with minimal pixel visibility.

However, curved structures interfere with that optical design.

Once the panel bends:

• The light diffusion layer changes shape
• Emission angles vary across the curve
• Resin thickness may become inconsistent
• Brightness and color uniformity become harder to control

As viewers move closer to the display, these inconsistencies become more noticeable. In some cases, the screen may show uneven brightness or visible graininess.

For high-end visual applications, this creates a significant challenge.

4. Heat Dissipation Becomes More Complicated

COB displays rely heavily on the PCB substrate for thermal management.

Flat panels allow heat to spread evenly across the structure and into the rear cooling system. However, curved panels change the thermal path.

This creates several complications:

• Reduced contact with heat dissipation structures
• Uneven heat distribution
• Increased risk of local hotspots
• Lower long-term thermal efficiency

Since heat directly affects LED lifespan and stability, poor thermal performance becomes a major concern for curved COB displays.
