A spherical LED display may look completely correct in the control software. The screen layout is in the right position, the resolution seems correct, and the test image appears properly arranged.
Then the physical screen is turned on.
Part of the image may appear in the wrong place. One section may be reversed. Content may jump from one side of the sphere to another, or several areas may display the same image.
This can be confusing because the software itself does not appear to show any problem.
In many cases, the real issue is simple:
the logical screen inside the software does not exactly match the physical signal path inside the spherical LED display.
A sphere makes this problem more noticeable because its LED modules and receiving cards are distributed around a 360-degree structure rather than arranged in a simple rectangular grid.
Control software creates a logical representation of the LED display.
For example, the software may define the receiving cards like this:
Card 1 → Card 2 → Card 3 → Card 4 → Card 5
On the computer, this order may look completely correct.
But the physical network cables inside the sphere may actually be connected like this:
Card 1 → Card 2 → Card 4 → Card 3 → Card 5
The control software does not automatically know that two physical connections have been exchanged.
It simply sends image data according to the configuration it has been given.
This means the computer preview can be correct while the actual LED sphere shows the wrong image.
For this reason, troubleshooting should not begin by changing the video file. First compare the logical receiving-card order with the real physical connection order.
A conventional LED wall normally uses repeated rectangular cabinets.
The signal direction is relatively easy to follow from left to right or from top to bottom.
A spherical LED display is different.

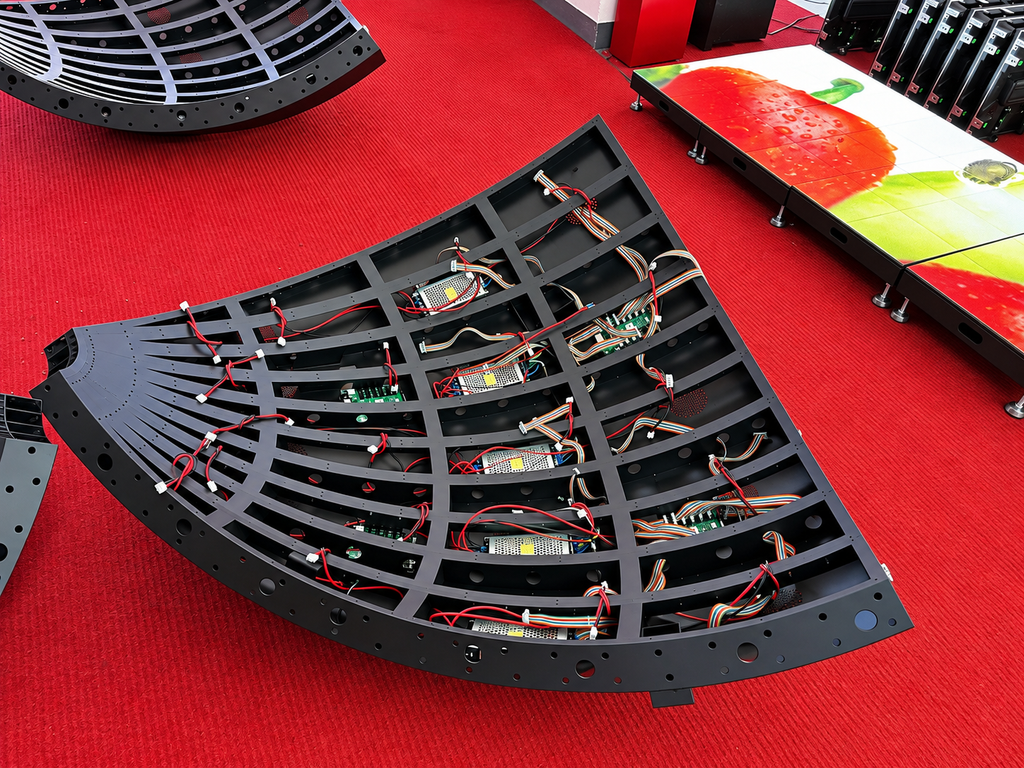

The modules follow a curved structure, and different sections of the sphere may have different orientations. Signal cables may also travel around the internal frame instead of following a straight line.
On a large sphere, engineers may divide the display into several structural sections before connecting them to different output ports.
After assembly, the physical arrangement might look correct from outside, while one receiving card or data cable inside follows a different sequence.
The result is not necessarily a black screen.
The LEDs may work normally but display the correct pixels in the wrong physical location.
That difference is important.
Each receiving card normally controls a defined pixel area.
The control system needs to know where that area belongs inside the complete display canvas.
If the starting coordinate of a receiving card is wrong, the card can receive valid image data but show pixels intended for another part of the sphere.
Typical symptoms include:
This is why engineers should check coordinates rather than assuming that a working receiving card is correctly configured.
A receiving card can be electrically healthy and still have the wrong logical position.
This is one of the easiest problems to create during installation.
Imagine that a spherical screen is divided into six areas for transportation.
At the factory, the cables are connected in the correct sequence and the complete sphere passes testing.
After transportation, the sections are assembled again.
If two network cables are connected to opposite sections, the software configuration may remain unchanged while the physical signal path has changed.
The screen still turns on.
The receiving cards still receive data.
But the picture no longer follows the expected 360-degree sequence.
This is especially worth checking when the problem appears after reassembly, maintenance, receiving-card replacement, or cable replacement.
Do not immediately rewrite the entire configuration.
First compare the actual signal path with the original connection record.
Curved and custom-shaped LED structures often contain modules installed in different orientations.
A module may physically fit into the correct position but require a different scan or data orientation.
If the software assumes that every module follows exactly the same direction, part of the content may appear:
This type of problem is different from ordinary video distortion.
If a normal grid test already appears wrong, the problem is likely related to the screen configuration rather than the original video content.
That gives technicians an easy way to separate content problems from hardware-mapping problems.
One common troubleshooting mistake is repeatedly playing normal videos.
Videos contain too much visual information.
A moving advertisement might show that something is wrong, but it does not clearly show where the mapping error begins.
A much better method is to create a simple test pattern.
For example, divide the screen canvas into numbered zones:
01 – 02 – 03 – 04 – 05 – 06
Then send the image to the physical sphere.
Walk around the complete display and record where each number actually appears.
If Zone 03 appears where Zone 05 should be, the problem can immediately be narrowed down to the corresponding receiving-card coordinates or signal path.
You can also use:
For a 360-degree display, checking the screen from only one viewing position is not enough.
The full surface should be inspected.
When a spherical LED display shows the wrong image, changing multiple parameters together makes troubleshooting harder.
A better sequence is:
Step 1: Check the input resolution.
Step 2: Confirm sender-port assignment.
Step 3: Confirm receiving-card coordinates.
Step 4: Compare software card order with physical cable order.
Step 5: Check module and data-group orientation.
Step 6: Send a numbered grid test.
Step 7: Walk around the full sphere and verify every section.
Only move to the next level after the previous one has been confirmed.
This method prevents a small mapping error from turning into a completely new configuration problem.

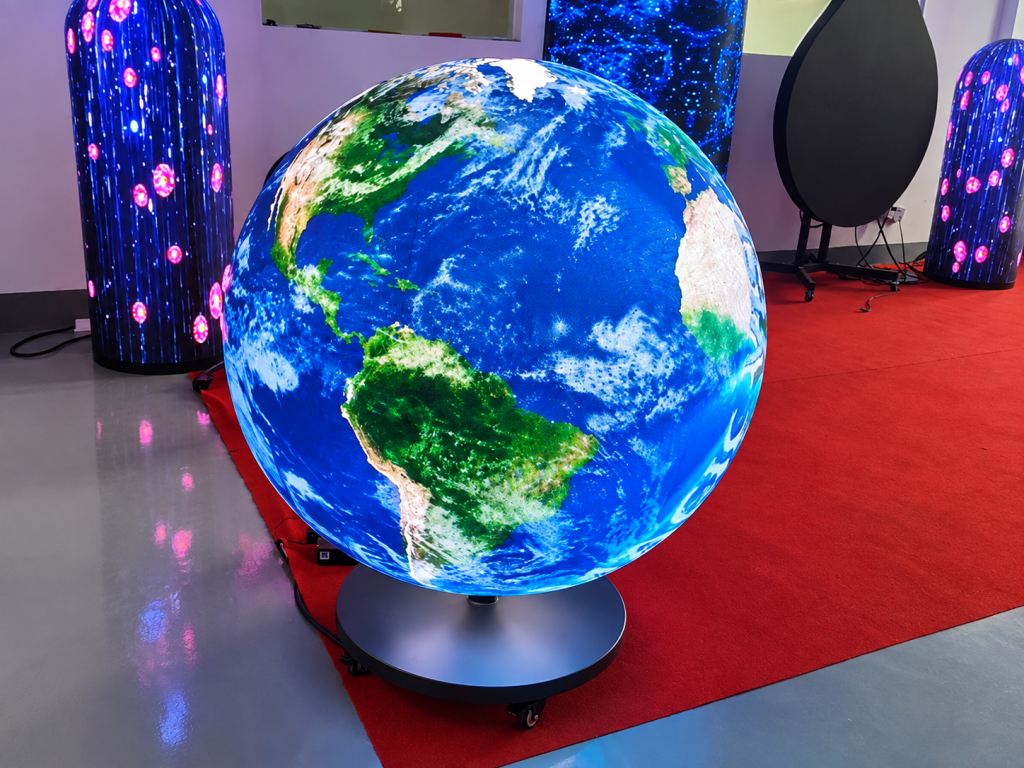

Consider a 2-meter indoor sphere that works correctly during factory testing.
The sphere is separated into several sections before transportation and assembled again at the project site.
After power-up, the software shows the original screen layout correctly. However, the physical display shows one part of the animation on the opposite side of the sphere.
The first reaction might be to recreate the content map.
But if the same numbered test pattern was correct before shipment, the content file is unlikely to be the first place to investigate.
The better approach is to compare the installation with the factory connection record.
If two receiving-card signal paths were exchanged during reassembly, correcting those connections may restore the display without changing the video or rebuilding the full screen configuration.
This is also why factory testing records are useful for custom-shaped LED projects.
TOOSLED has supplied spherical LED display projects using different pixel pitches and customized diameters for indoor and outdoor applications. Existing LED ball screen cases can also provide a useful reference for different sphere structures and installation methods.
Mapping problems are easier to prevent than to diagnose on site.
Before shipment, a spherical LED display should be tested as a complete system whenever project conditions allow.
Useful records include:
For large spheres that must be disassembled before transportation, labeling becomes particularly important.
The installer should be able to identify exactly where each cable and screen section belongs.
A short factory test video can sometimes save hours of troubleshooting at the installation site.
The software shows the logical configuration saved in the control system. It cannot guarantee that the real receiving cards, signal cables, and modules are physically connected in the same order.
No. A receiving card may work normally but have the wrong coordinate, configuration, orientation, or physical position.
Not necessarily. If a numbered grid or simple test pattern is already displayed in the wrong position, check screen mapping and physical topology before changing the video content.
Transportation and reassembly can change cable order, structural sections, receiving-card connections, or configuration. Comparing the site installation with the factory test record can quickly narrow down the cause.
Yes. Cylindrical, curved, wave-shaped, column and other irregular LED screens can experience similar problems whenever the logical canvas does not match the physical signal path.
When a led ball display looks correct in the control software but wrong on the real screen, the software itself may not be the problem.
The key question is whether the logical map matches the physical topology.
Check the signal path from the controller to the receiving cards and then to the LED modules. Use simple numbered test patterns instead of complicated videos, and verify the complete 360-degree surface section by section.
At TOOSLED, spherical LED displays can be customized for different diameters, pixel pitches, indoor or outdoor environments, and installation methods. The company provides complete LED display production, factory testing and technical support for custom-shaped projects, helping customers reduce installation and configuration problems before the screen reaches the final site.
