Before performing pixel-by-pixel calibration on an irregular LED display, engineers must complete several critical preparation steps. These preparations focus on five key areas:

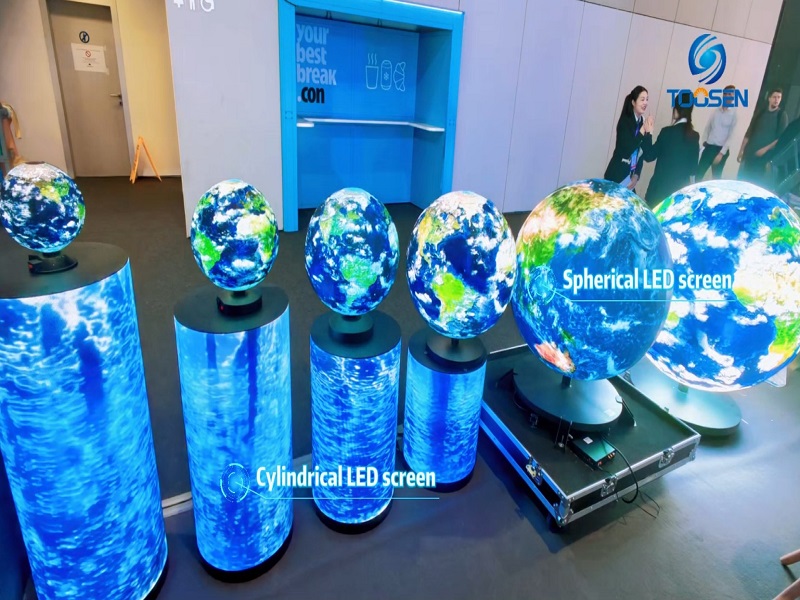

Proper preparation ensures accurate data collection and effective calibration results, especially for complex structures such as curved, spherical, cylindrical, or free-form LED displays.
(Especially Important for Irregular LED Displays)
First, technicians must confirm that all irregular modules—including curved, spherical, or custom-shaped sections—are securely installed.
They should verify that:
Even small structural distortions can shift pixel coordinates and cause calibration errors during data acquisition.
At the same time, engineers should inspect the entire display pixel by pixel to identify:
They must repair or replace faulty components before calibration begins.
Next, engineers should verify that the control system fully supports pixel-by-pixel calibration.
This process includes checking:
If necessary, technicians should upgrade firmware to ensure compatibility with irregular-screen calibration functions.
In addition, they must confirm:
Engineers usually perform full-screen tests using:
These tests help identify signal noise, pixel crossover, or scanning abnormalities.
(Critical for Irregular LED Displays)
Unlike flat LED screens, irregular displays require precise three-dimensional coordinate mapping.
Engineers typically use:
These tools capture the exact X/Y/Z coordinates of every LED pixel and generate a spatial coordinate model for the display.
At this stage, technicians should also identify and label:
They then define these regions as masked areas inside the calibration software to prevent incorrect calibration calculations.
Before calibration, technicians must thoroughly clean the LED surface.
They usually use:
This step removes:
Any contamination can interfere with brightness and chromaticity measurements.
If technicians replace masks or protective covers, they should use components from the same production batch and color specification to avoid introducing color inconsistencies.
After cleaning, engineers should power on the entire display for 30–60 minutes.
This preheating process stabilizes:
Because LED luminous efficiency changes with temperature, calibration data becomes unreliable if the screen has not reached thermal equilibrium.
During preheating, technicians should:
All display parameters must remain fixed during calibration.
(Strict Control of Light, Temperature, and Vibration)
Accurate calibration requires a controlled lighting environment.
For indoor calibration, engineers should create a dark-room environment by:
Many professional calibration systems also use D65 standard lighting conditions to ensure consistent optical reference values.
For outdoor irregular LED screens, technicians should ideally perform calibration:
They should avoid:
In many cases, engineers install temporary shading structures to block stray light and reflections.
They must also prevent strong light from directly entering the camera lens or reflecting from the screen surface, since overexposure and stray light can distort measurement data.
Engineers should maintain the environment at:
Stable environmental conditions reduce structural movement caused by thermal expansion and contraction.
In addition, technicians should keep the calibration area away from:
Even minor vibrations can cause camera shake or microscopic screen movement during data acquisition.
Professional calibration systems usually include:
Before calibration begins, technicians must verify that all measurement devices remain within their valid calibration period.
They should also confirm:
The camera mounting system must remain precisely leveled and mechanically stable.
(Especially Important for Irregular Displays)
Engineers must install calibration software that specifically supports:
After importing the 3D coordinate model, the software maps the curved physical surface onto a virtual two-dimensional coordinate system.
Technicians then define:
Next, they configure key system parameters, including:
Finally, engineers select the calibration mode:
Typical target brightness settings include:
Before formal calibration starts, technicians should perform a complete visual inspection.
They display:
Then they inspect the screen visually and through the camera system to confirm:
They should pay special attention to:
These regions often show the highest risk of optical inconsistency.
Next, engineers adjust the camera settings carefully.
They must ensure:
Typical parameters include:
Afterward, technicians usually perform small-area test acquisitions on representative irregular sections, such as:
This step helps verify:
For curved and spherical screens, engineers should focus especially on regions with significant curvature changes.
Without careful calibration, viewing-angle variation can easily create uneven brightness and color performance.
For highly irregular designs, technicians must strictly follow the 3D coordinate model during data acquisition.
Otherwise, edge pixels and corner pixels may become:
Pixels near structural seams often receive optical interference from neighboring modules.
As a result, engineers usually:
This process improves transition smoothness between adjacent modules.
Preparing an irregular LED display for pixel-by-pixel calibration involves far more than simply powering on the screen and starting measurements.
Because irregular displays feature:
Engineers must carefully control every aspect of the calibration environment, hardware system, and coordinate model.
Only thorough preparation can ensure accurate calibration data and deliver the uniform brightness, precise color reproduction, and seamless visual performance expected from high-end irregular LED displays.
