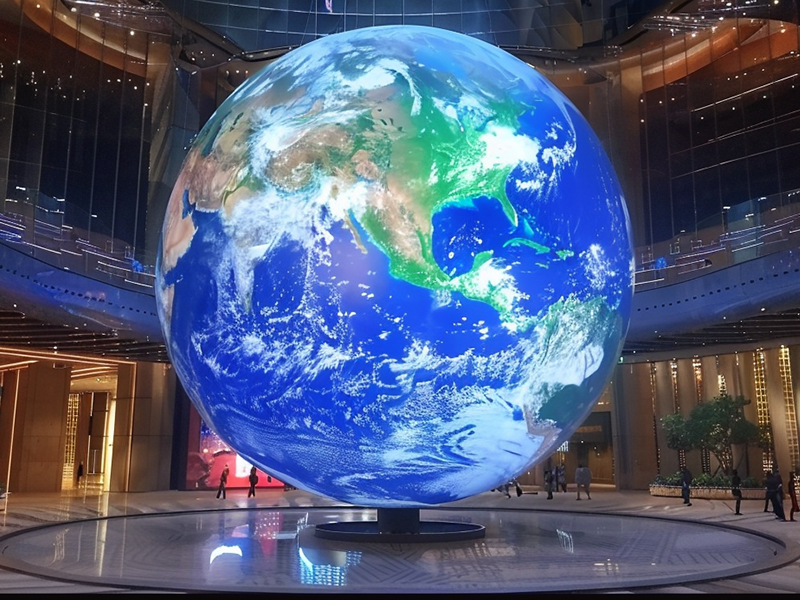

Spherical LED Screen Detailed Overview

What makes a Spherical LED Screen or LED ball screen different from a flat LED display? Simply put, it is a three-dimensional LED display designed to form a perfect sphere or partial sphere.

To achieve this, it requires specialized modules, a strong support system, precise electrical control, and advanced software.

Basic Components of a Spherical LED Screen

1. Custom LED Modules

Unlike flat LED screens, spherical LED screens use specially shaped modules:

• Curved modules: These long, thin modules have a vertical curve and are commonly used for “meridian-style” assembly, similar to the lines running from the North Pole to the South Pole on a globe.
• Triangle or hexagon modules: These flat modules are used in “polyhedron-style” assembly. Multiple small flat panels fit together to approximate the sphere’s surface.
• Custom front masks: These protective layers cover the modules and are usually dark matte materials. They improve display contrast, reduce reflection, and provide physical protection.
• Dedicated enclosures: Made of aluminum or other metals, these boxes hold the modules and ensure correct angles, heat dissipation, and structural connection.

2. Structural Support System

The support system ensures the spherical shape is stable and precise.

• Internal frame: A metal skeleton made of steel or aluminum supports the LED modules and carries the weight of the sphere.
• Connection hardware: These parts fix each LED enclosure at precise angles on the frame, controlling the smoothness and curvature of the final sphere.

3. Electrical and Signal Control System

• Power system: Includes power modules, distribution boxes, and wiring. Power is often distributed across modules for stability and heat management.
• Signal system:
  • Receiving cards inside each module receive video signals and drive the LEDs.
  • Video processors and transmitters cut and send video signals to each receiving card.
  • Signal cables connect all devices and ensure smooth data transmission.

4. Software and Control System

Special software makes spherical displays possible:

• Sphere calibration and blending software: Maps every LED pixel to its 3D position, adjusts video geometry to match the sphere, and ensures consistent color and brightness.
• Playback and control software: Manages content, schedules, and system monitoring.

5. Auxiliary Systems

• Cooling system: Uses the metal enclosure or added fans for heat dissipation.
• Mounting and base structure: Steel frames for hanging, poles, or floor-mounted setups.
• Waterproofing: Outdoor spheres require sealed enclosures and masks.

Common Types of Modules for LED Ball Screens

1. Curved Strip Modules
These are the most popular for large spheres.

• Shape: Long strips with a vertical curve.
• Assembly: Like the Earth’s meridians, strips wrap around the sphere from top to bottom, sometimes called the “watermelon peel” method.
• Advantages: Easy to produce, install, and maintain; regular seams reduce visual distraction; cost-effective for large spheres.
• Challenges: Curvature at the poles is extreme, requiring precise module design and frame support.

2. Triangle or Polygon Modules
Ideal for small to medium spheres with smooth curves.

• Shape: Flat triangles, hexagons, or other polygons.
• Assembly: Many small flat panels fit together like a soccer ball or dome, creating a smooth spherical surface.
• Advantages: Excellent sphere approximation, flexible shapes (full sphere, half sphere, quarter sphere), uniform visual effect.
• Challenges: Many seams and cable connections, complex support frame, higher cost.

3. Custom Irregular Modules
Variants of polygon modules include trapezoid or fan-shaped panels.

• Use: Fill special areas, like the poles, or complement curved modules.
• Advantages: Reduce blind spots and improve display coverage in irregular areas.
• Challenges: Custom production increases cost and reduces general compatibility.

Why Choose a Spherical LED Screen?

A Spherical LED Screen or LED ball screen offers unique visual experiences that flat screens cannot. From concerts, exhibitions, and museums to shopping centers, spherical LED displays attract attention with their immersive and interactive visuals. They combine art, engineering, and technology in one spherical form.
