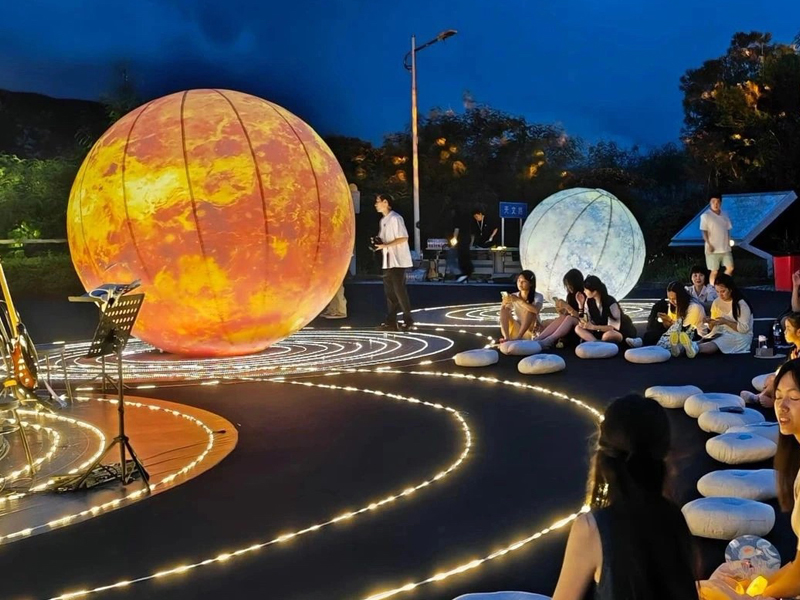

LED Spherical Screen Steel Structure Design

As LED display technology evolves, spherical LED screens stand out as one of the most visually striking and technically demanding formats. Unlike flat displays, these structures rely heavily on a well-engineered steel framework to achieve both geometric precision and structural safety.

In practice, the steel structure is not just a support system—it defines installation accuracy, long-term durability, and maintenance efficiency. Below is a comprehensive, engineering-focused breakdown of how to design a reliable LED spherical screen structure.

1. Core Structural System: Three-Layer Design Logic

A robust LED spherical screen typically uses a three-layer structural system. Each layer serves a distinct mechanical and functional purpose:

1.1 Primary Load-Bearing Frame

First, engineers design the main structural skeleton to handle all loads, including:

• Dead loads (steel structure + LED modules)
• Maintenance loads (technicians and equipment)
• Environmental loads (wind, snow, seismic forces for outdoor projects)

This layer acts as the structural backbone, so designers must prioritize strength, rigidity, and stability.

1.2 Secondary Curved Keel (Subframe)

Next, the team installs curved secondary members based on spherical coordinates (latitude and longitude layout).

These components:

• Define the true spherical geometry
• Divide the surface into uniform grid sections
• Provide consistent mounting points

As a result, they ensure that the sphere maintains smooth curvature and structural continuity.

1.3 Module Mounting Interface Layer

Finally, the outermost layer connects directly to LED cabinets and modules.

This layer must:

• Allow fine-tuning adjustments (3D alignment)
• Compensate for fabrication and installation tolerances
• Ensure seamless visual continuity

Without this adjustable interface, even minor deviations can cause visible distortion or misalignment on the display surface.

2. Material Selection: Matching Environment and Scale

Material choice directly affects structural performance and lifecycle cost.

Common Steel Grades

• Q235B steel: Suitable for small to medium indoor projects
• Q345B steel: Preferred for large or outdoor spheres due to higher strength and better deformation resistance

Section Types

• Circular tubes
  • Lower wind resistance
  • Ideal for outdoor and elevated installations
• Square tubes
  • Easier fabrication and welding
  • Common in indoor or smaller structures

Corrosion Protection

• Outdoor structures → Hot-dip galvanizing (long-term corrosion resistance)
• Indoor structures → Paint coating systems

Choosing the wrong protection method can significantly shorten the structure’s lifespan.

3. Structural Load Analysis: Engineering First Principles

Before fabrication, engineers must complete a full load calculation model.

Load Categories

• Permanent loads: Structure + LED system weight
• Variable loads: Maintenance personnel and tools
• Environmental loads:
  • Wind load (critical for outdoor spheres)
  • Snow load (region-specific)
  • Seismic load (based on local codes)

Key Design Considerations

• Use local building codes for wind and seismic parameters
• Apply appropriate safety factors
• Prevent:
  • Structural deformation
  • Fatigue cracking
  • Progressive collapse

Accurate load modeling ensures long-term reliability under real-world conditions.

4. Precision Control: The Defining Challenge

Unlike flat LED walls, spherical displays demand strict geometric accuracy.

Key Control Metrics

• Sphere radius deviation
• Surface flatness tolerance
• Node positioning accuracy

Practical Methods

• Use 3D modeling software to define curvature
• Standardize keel spacing
• Implement adjustable connectors

This approach minimizes:

• Visible seams
• Image distortion
• Pixel misalignment

Precision directly impacts visual performance, not just structure.

5. Installation Methods and Structural Variations

Different installation types require different engineering strategies.

5.1 Ground-Mounted Spherical Screens

• Use ring-shaped concrete foundations
• Embed steel plates in concrete
• Connect columns via:
  • Welding
  • High-strength bolts

This method ensures maximum base stability.

5.2 Suspended (Hanging) Installation

• Design overhead support beams
• Add:
  • Bracing systems
  • Tension cables

Load distribution becomes critical to avoid single-point overload.

5.3 Hanging Safety Considerations

• Precisely calculate load capacity of suspension points
• Ensure long-term fatigue resistance
• Include redundancy where possible

6. Node Design: Strength Meets Constructability

Connection nodes determine both structural integrity and installation efficiency.

Common Node Types

• Bolted spherical nodes
  • Faster assembly
  • Ideal for small to medium projects
• Welded spherical nodes
  • Higher strength
  • Preferred for large outdoor spheres

Quality Control

• Perform weld inspections (NDT testing)
• Use high-strength bolts for all connections
• Prevent loosening caused by vibration

A poorly designed node can compromise the entire structure.

7. Installation and Maintenance Strategy

Smart design goes beyond structure—it also considers lifecycle operations.

Modular Fabrication

• Prefabricate components in factory
• Assemble on-site
• Reduce high-altitude work risks

Internal Maintenance Space

• Reserve accessible interior space
• Allow technicians to:
  • Replace modules
  • Inspect wiring
  • Perform repairs

Cable Management

• Route cables along internal structure
• Include:
  • Cable trays
  • Access openings

Lightning Protection (Outdoor)

• Integrate grounding system
• Ensure resistance meets safety standards

These decisions significantly reduce long-term maintenance costs.

8. Key Takeaways: What Defines a Successful Design?

A high-quality LED spherical screen steel structure must balance five critical factors:

1. Structural safety
2. Geometric accuracy
3. Environmental adaptability
4. Ease of installation
5. Maintenance accessibility

When engineers align all five, the result is a system that:

• Performs reliably over time
• Maintains visual precision
• Adapts to both indoor and outdoor scenarios

Conclusion

Designing an LED spherical screen structure requires more than standard steel engineering. It demands a multidisciplinary approach that integrates structural mechanics, geometry control, fabrication strategy, and operational planning.

By using proper materials, accurate calculations, and modular construction methods, you can build a spherical LED display that not only looks impressive but also operates safely and efficiently for years.
