Custom shaped LED displays are widely used in shopping malls, exhibitions, museums, entertainment venues, and commercial landmarks. Unlike traditional rectangular LED screens, creative LED displays require more advanced technology to control irregular structures and deliver smooth visual effects.
The LED Controller and Processor Explained concept is important for anyone planning a custom LED project. The processor and controller work together to manage video signals, pixel mapping, and image performance, especially for special designs such as curved, spherical, and irregular LED displays.
A reliable control system ensures that every LED pixel displays the correct position, brightness, and color.
An LED controller is the device that sends image data to LED modules. It receives processed signals and distributes them to receiving cards and LED cabinets.
The basic workflow is:
Video Source → LED Processor → LED Controller → Receiving Card → LED Module
The LED controller mainly manages:
For standard LED walls, the controller usually handles a simple rectangular layout. However, a custom shaped LED display controller needs to manage more complicated pixel structures.
For example, a sphere LED display does not have a flat screen surface. Each LED position must match the correct image location to create a natural 360-degree viewing experience.

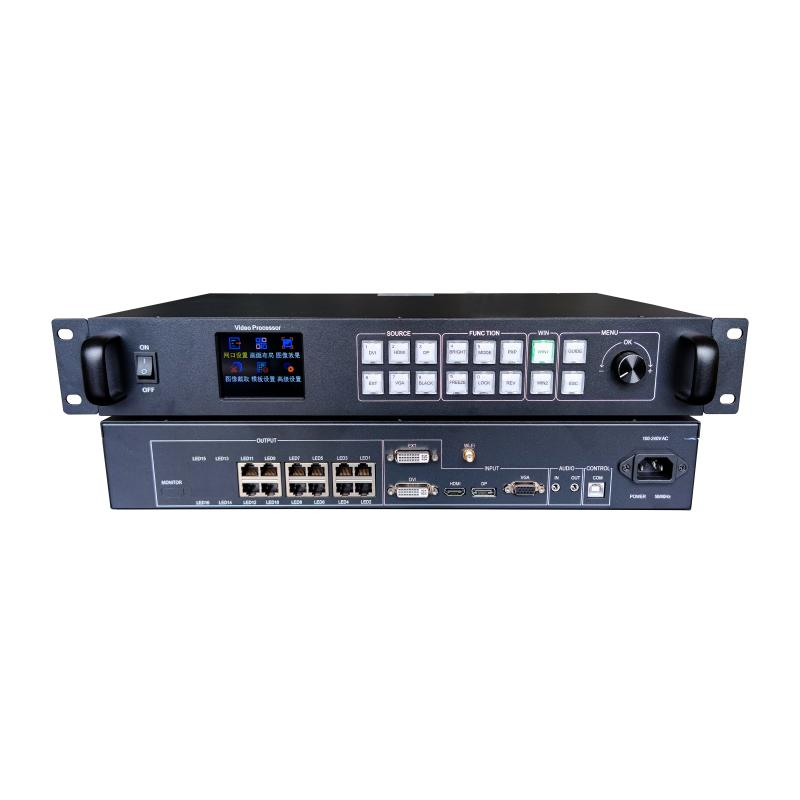

An LED processor works before the controller and improves the original video signal.
Its main functions include:
For creative LED projects, the processor plays an even more important role.
For example, a LED processor for curved LED display applications needs to correct image distortion caused by the curved surface. Without proper processing, images may appear stretched or incorrectly aligned.
Traditional LED screens are usually rectangular, which makes image processing relatively simple.
Custom LED displays are different because they may include:
Each design has a unique pixel arrangement.
The control system must understand the physical shape of the display and correctly match video content with LED pixels.
One of the biggest challenges of custom LED projects is pixel mapping.
A professional LED mapping system for irregular displays converts normal video content into a format that matches the actual LED structure.
Different shapes require different solutions:
A spherical LED screen requires 360-degree mapping because viewers can watch the display from multiple directions.
The controller must calculate pixel positions across the curved surface to avoid image distortion.
Curved screens need image correction because the distance between the viewer and every pixel is different.
The processor helps maintain smooth images and accurate proportions.
Cylinder and bottle-shaped LED screens require special vertical and circular mapping to ensure advertising content fits perfectly around the surface.
This is why creative LED projects require more than a normal LED controller.
When selecting a control system, several factors should be considered.
Higher-resolution LED displays require stronger processing capability.
Small pixel pitch products need accurate data handling to maintain image details.
A high refresh rate provides smoother images and reduces flickering, especially for:
For custom shaped LED projects, mapping functions are essential.
The system should support:
A professional control system should support different video inputs and work with common LED control platforms.
This makes installation and future upgrades easier.
TOOSEN specializes in creative LED display solutions, including Custom Shaped LED Display, spherical LED screens, curved LED displays, and other customized structures.
Compared with traditional LED displays, TOOSEN focuses on providing complete solutions from design to installation.
Main advantages include:
TOOSEN supports customized:
Whether it is a curved wall, spherical display, or creative commercial installation, TOOSEN provides solutions based on project requirements.
TOOSEN products have been supplied to customers in many regions, including the United States, Germany, Denmark, and South Korea.
With overseas warehouses, international offices, and global project experience, TOOSEN helps customers improve delivery efficiency and after-sales support.
Every February, TOOSEN also provides overseas technical service and maintenance support in Europe, helping customers solve installation and maintenance problems.
From LED structure design and control system selection to installation guidance, TOOSEN provides technical support throughout the project.
The LED controller and processor are essential parts of every custom shaped LED display.
While traditional LED screens mainly need stable signal transmission, creative LED displays require advanced control technology for pixel mapping, image correction, and shape adaptation.
Choosing the right controller and processor helps curved, spherical, and irregular LED screens achieve smooth, accurate, and impressive visual performance.
With professional manufacturing experience, global service support, and customized solutions, TOOSEN helps customers turn creative LED ideas into reliable display projects.
The LED processor improves and adjusts video signals, while the LED controller sends the processed data to LED modules.
Both are necessary for stable LED display performance.
Yes. Custom shaped LED displays require advanced controllers because their pixel structures are different from standard rectangular screens.
