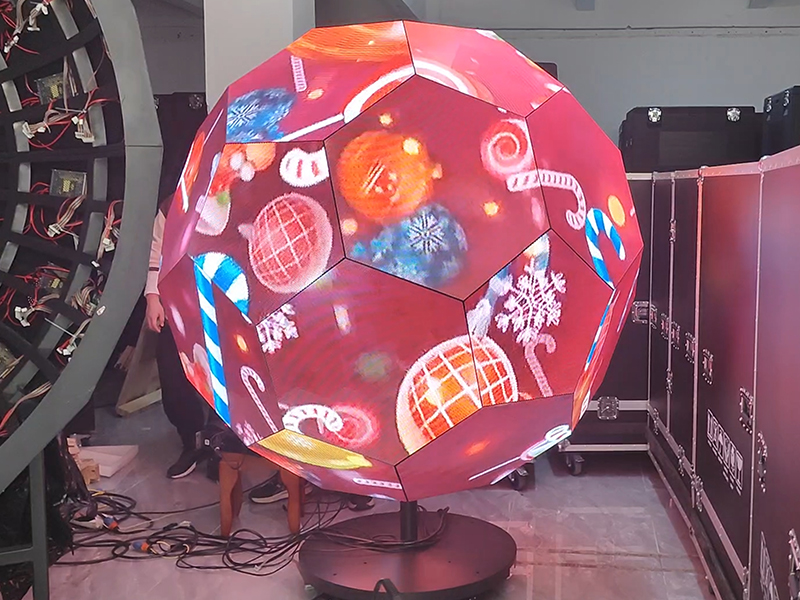

Getting rid of the moiré effect on a spherical LED screen—especially during filming, live streaming, or stage recording—can be a real headache. Because spherical screens have a unique curvature and non-linear pixel alignment, they trap and magnify these distracting artifacts much more than flat screens do.
Moiré happens when the camera’s image sensor grid interferes with the LED pixel grid. To fix this, you need to break that interference.
Here is a comprehensive guide on how to eliminate moiré, focusing on practical adjustments you can make behind the camera, on the screen itself, and in post-production.
1. Adjust Camera Settings
When you cannot change the LED hardware on set, changing how you shoot is your fastest line of defense.
Shift Your Distance and Angle
Move the camera: Try physically stepping forward or backward. Changing your distance changes how large the LED pixels appear on your camera sensor, which instantly breaks the interference pattern.
Tilt the angle: Tilt your camera slightly up, down, left, or right by just a few degrees. Since a spherical screen is constantly changing angles anyway, scanning the space for a “sweet spot” where the lines disappear is crucial.
Tweak Your Focus (Soft Focusing)
Rack your focus slightly in front of or behind the LED screen. For instance, lock your sharp focus onto the speaker standing in front of the ball. This leaves the background screen slightly soft. Once you blur the sharp edges of the individual pixels, the moiré pattern vanishes.
Sync Your Shutter Speed
Utilize your camera’s ECS (Clear Scan) function to fine-tune the shutter speed until it perfectly matches the refresh rate of the LED screen.
Alternatively, try lowering your shutter speed (down to 1/50s or 1/60s). This increases exposure time per frame, which naturally blends the pixels together and reduces banding.
Switch to a Telephoto Lens
Long lenses offer a shallower depth of field. This allows you to easily blur out the background spherical screen, physically isolating your subject and cutting out the moiré entirely.
2. Upgrade or Optimize the Display
If you are still in the design phase or have backend access to the LED control system, you can solve the problem at the source.
Apply an Optical Anti-Moiré Filter (Screen Film)
This is the gold standard for spherical and irregular screens. Technicians apply a specialized polymer optical film directly onto the LED surface.
This film diffuses the harsh point-light from individual LEDs and turns them into smooth, surface-level light. Consequently, it eliminates pixel grain without sacrificing sharpness or viewing angles.
Boost the Screen’s Refresh Rate
Make sure the spherical screen uses high-refresh-rate driver ICs. If you push the refresh rate up to 3840Hz or higher (premium screens can hit 7680Hz), the camera sensor will rarely capture the scan lines or moiré patterns.
Lower the Brightness, Raise the Grayscale
Blindingly bright screens cause camera overexposure, which exaggerates pixel outlines. Instead, use the control software to boost the grayscale levels while dropping the overall brightness. This smooths out color transitions and tames the interference.
3. Plan Ahead with Content and Hardware Selection
Prevention is always better than a cure. You can bypass the issue entirely during the planning phase.
Opt for a Smaller Pixel Pitch (P-Value)
Choose screens with a tighter pixel pitch, like P1.5 or P1.2. High-density pixel layouts pack the dots so closely together that they surpass the camera sensor’s ability to resolve them as individual points, making moiré nearly impossible.
Design Smart Visual Content
Instruct your design team to avoid patterns with dense lines, grids, or high-contrast black-and-white stripes.
Instead, populate the spherical screen with rich colors, smooth gradients, or video assets that feature subtle digital noise or motion blur.
4. Rescue the Footage in Post-Production
If you have already wrapped production and caught moiré in your footage, you will have to fix it in editing suites like Premiere, DaVinci Resolve, or After Effects.
Apply Blur and Noise Reduction Filters
Create a mask over the LED screen area in your timeline. Then, apply a subtle Gaussian Blur or Directional Blur exclusively to that masked zone to dissolve the harsh grid lines.
Deploy Dedicated Anti-Moiré Plugins
Take advantage of DaVinci Resolve’s built-in Denoise and Moiré Removal tools. Alternatively, third-party plugins like RE:Vision Effects offer advanced algorithms that target and erase specific geometric interference frequencies.
Summary Checklist
If you are live on set right now: Soften your background focus and micro-adjust your camera angle.
If you are building a permanent installation: Invest in an optical anti-moiré film or select a high-refresh-rate, low-pitch screen.
