Why Technicians Should Use ESD Protection When Servicing Spherical LED Displays

A spherical LED display contains many electronic components working together in a compact structure. LED modules, driver ICs, receiving cards, connectors, power supplies, and control components all play a part in keeping the screen running correctly.

During normal operation, most of these components are protected inside the structure. During maintenance, however, technicians may need to remove modules, disconnect cables, replace receiving cards, or work directly around exposed electronic components.

This is where ESD protection for spherical LED displays becomes important.

ESD, or electrostatic discharge, can happen in a fraction of a second. A technician may not see or even feel it, but a small discharge can still affect sensitive electronic components.

What Is ESD?

ESD stands for electrostatic discharge. It happens when static electricity moves suddenly from one object to another.

A person can build up static electricity simply by walking across certain flooring, moving clothing, handling plastic packaging, or working in a dry environment.

When the technician touches an electronic component, the stored charge may discharge through that component.

Sometimes the discharge is strong enough to produce a small spark. However, ESD does not need to be visible to cause a problem.

This is why professional LED display maintenance should include basic anti-static procedures.

Why Spherical LED Displays Need Special Attention

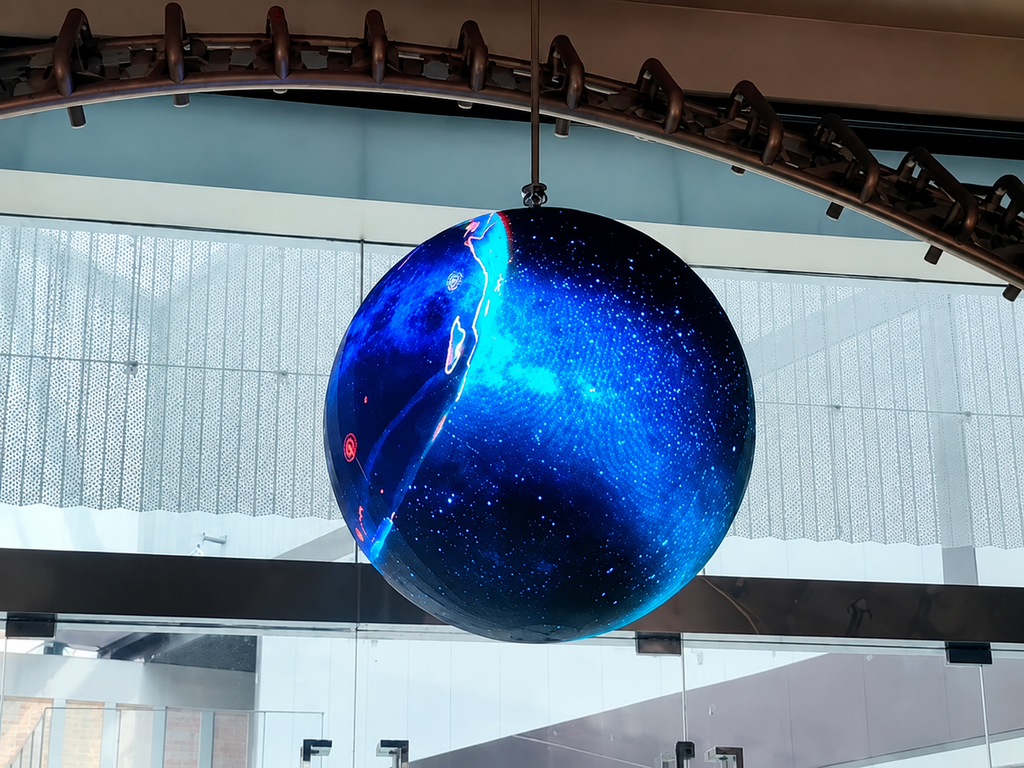

A spherical LED display is different from a conventional flat LED wall.

Instead of arranging standard rectangular cabinets across a flat surface, a sphere uses customized modules and a specially designed internal structure to create a continuous curved display.

During servicing, technicians may need to remove an individual module from the curved surface to reach internal components.

This can expose:

• LED module PCBs
• Driver ICs
• Receiving cards
• HUB boards
• Signal connectors
• Power connectors
• Internal cables

These components should be handled carefully.

The unusual shape can also make servicing less convenient than working on a standard flat cabinet. Technicians may work from different angles or reach through a limited maintenance opening.

Good ESD habits become especially useful in these situations.

For more information about the structure and available sizes, see TOOSEN’s Spherical LED Display solutions.

What Can ESD Damage Inside an LED Sphere?

The LED lamps are not the only parts that need protection.

Modern LED displays contain semiconductor components throughout the system. Driver ICs control the LEDs, receiving cards process display data, and other electronic components manage power and signals.

An electrostatic discharge reaching one of these areas may result in different symptoms.

For example, a module may show dead or abnormal pixels. A section of the display may flicker, show incorrect colors, or behave inconsistently.

In other situations, a receiving card or signal circuit may become unstable.

The difficult part is that ESD damage is not always obvious immediately after maintenance.

ESD Damage May Not Appear Immediately

A technician finishes replacing a module and powers the sphere back on.

Everything looks normal.

Does this mean there was no ESD damage?

Not necessarily.

Some electrical damage can be immediate, while other damage may weaken a component without causing instant failure. The screen may continue operating before intermittent problems appear later.

For example, technicians may later notice:

• Occasional pixel errors
• Intermittent flickering
• Abnormal colors
• Unstable module operation
• Signal interruptions
• Repeated component failures

These problems can be difficult to diagnose because the display may pass an initial test.

Preventing ESD during servicing is therefore usually easier than troubleshooting an unexplained electronic problem afterward.

Grounding the Display Is Not the Same as ESD Protection

One common misunderstanding is that a properly grounded LED display automatically protects every component from technician-generated static electricity.

These are related but different issues.

Electrical grounding provides a safe path for electrical faults and is an important part of a safe LED display installation.

Technician ESD protection focuses on controlling static charge before a person handles sensitive electronics.

A properly grounded spherical LED screen should therefore not replace good ESD servicing procedures.

Both are important.

ESD Protection Technicians Should Use

ESD control does not need to make routine maintenance complicated.

Before opening the spherical display, technicians should prepare a suitable work area and follow several basic precautions.

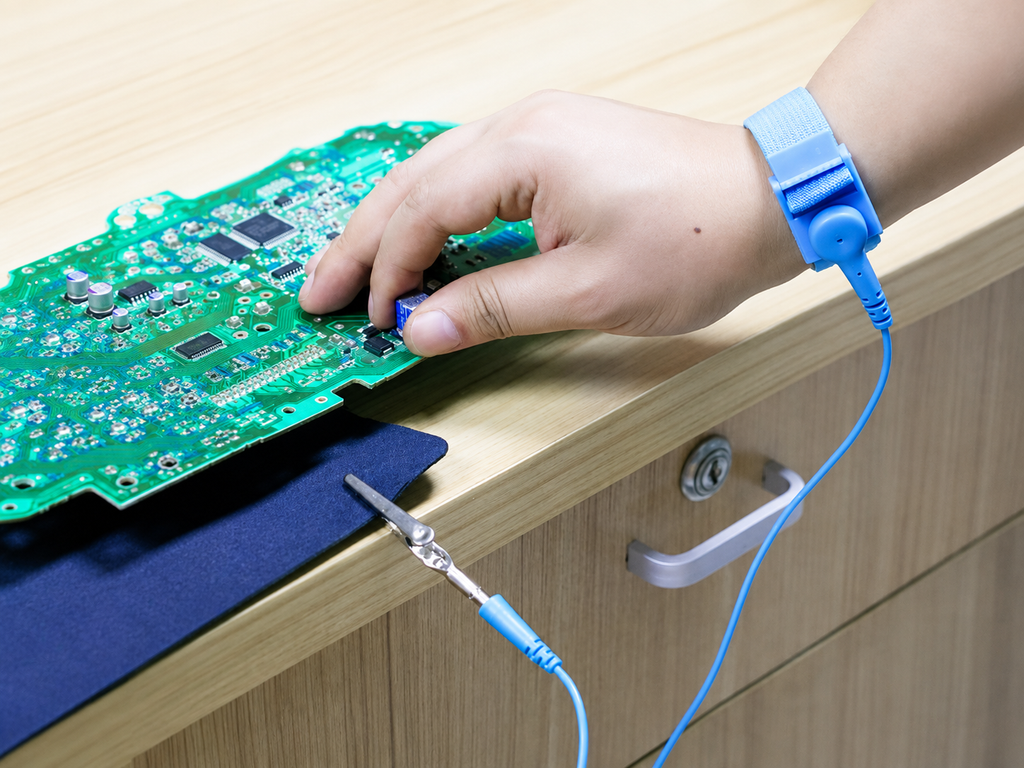

1. Wear an ESD Wrist Strap

A grounded ESD wrist strap helps prevent static charge from building up on the technician.

The strap should be used correctly and connected to an appropriate grounding point according to the site’s ESD procedure.

2. Use an ESD-Safe Work Surface

If an LED module or receiving card is removed from the sphere, avoid placing it directly on carpet, ordinary plastic, or another surface that can generate static electricity.

Use an ESD-safe mat or suitable anti-static working surface.

3. Handle Modules Carefully

Avoid unnecessary contact with exposed PCB components, connector pins, and electronic circuits.

Where practical, hold the module by its edges or structural parts instead of touching sensitive electronic areas.

4. Use Anti-Static Packaging

If a module, receiving card, or PCB needs to be stored or transported after removal, use suitable anti-static packaging.

Do not assume that ordinary plastic packaging provides ESD protection.

5. Keep the Work Area Clean

Loose plastic films, packaging materials, and unnecessary objects should be kept away from the maintenance area.

A clean workspace also makes it easier to organize screws, cables, modules, and replacement parts.

Simple ESD Checklist Before Servicing

Before starting spherical LED display maintenance, technicians can use this quick checklist:

1. Power off the LED display according to the maintenance procedure.
2. Disconnect power where required before opening the screen.
3. Wear a properly connected ESD wrist strap.
4. Prepare an ESD-safe work surface.
5. Remove the spherical LED module carefully.
6. Avoid touching exposed PCB components and connector contacts.
7. Place removed electronics on an anti-static surface.
8. Use anti-static packaging when storing replacement or removed components.
9. Check signal and power connections before reassembly.
10. Reinstall the module and perform a complete display test.

These simple steps can reduce unnecessary risks during routine servicing.

Good Maintenance Protects More Than the LED Module

A spherical LED screen is a complete electronic system, not just a collection of LEDs.

Good maintenance should protect the LED modules, driver electronics, receiving cards, signal connections, power system, and internal structure at the same time.

ESD protection is a small part of the servicing process, but ignoring it can create problems that are difficult to identify later.

For technicians, the basic rule is simple:

Before touching exposed electronics inside a spherical LED display, control static electricity first.

It takes only a few extra steps and helps make module replacement, inspection, and troubleshooting safer and more reliable.
