How to Calculate LED Screen Size

When buying an LED screen for your project, it’s important to understand not only how to install it but also how to measure its size correctly. If you choose the wrong size, it can cause problems with installation, viewing experience, and cost. This guide will help you learn how to measure LED screen size so you can pick the right one for your needs.

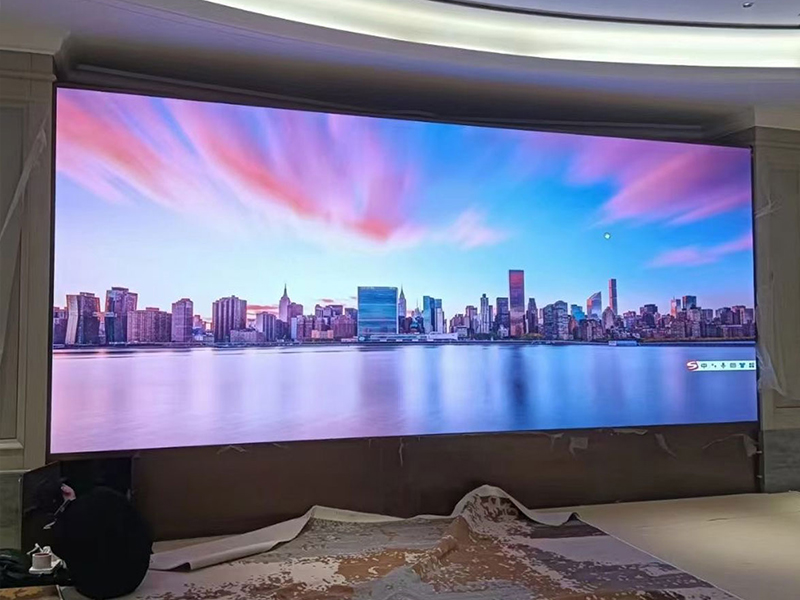

What Is the Size of an LED Screen

The LED screen size refers to its physical width and height.

For example, a screen that measures 4m × 2m means it is 4 meters wide and 2 meters high.

Many people confuse size, resolution, and pixel pitch. While they are related, they mean different things.

Size shows the actual physical dimensions.

Resolution tells you how many pixels the screen has.

Pixel pitch is the distance between two pixels.

For instance, two LED screens both sized 4m × 2m can have different pixel pitches — say P2.5 and P5. The P2.5 screen has twice the pixel density, showing clearer and smoother images.

In short, both the physical LED display dimensions and the pixel pitch affect image clarity and viewing quality.

How to Measure LED Screen Size

Physical Dimension Measurement

This is the basic step of LED display measurement.

First, measure the total width and height of the screen. Don’t forget to include the cabinet thickness if it has one.

Next, measure:

Module size: the smallest LED unit.

Cabinet size: made of multiple modules for easier transport and setup.

What’s important is to always confirm whether you’re measuring only the display area or the total outer size (including the frame). This is critical for installation accuracy.

Resolution and Pixel Density Calculation

Resolution depends on both the screen’s physical dimensions and the pixel pitch.

Example:

A 4m × 2m screen using P2.5 pixel pitch:

Width: 4000 ÷ 2.5 = 1600 pixels

Height: 2000 ÷ 2.5 = 800 pixels

You can also reverse the formula to find physical size from resolution and pixel pitch.

Knowing these numbers helps match your LED screen to the right content resolution.

Factors That Affect LED Screen Size Selection

1. Viewing Distance

Viewing distance is one of the most important factors.

Here is a simple rule:

Minimum viewing distance (m) ≈ Pixel pitch (mm) × 2–3

For example, if viewers stand 5 meters away, choose P2.5 or P3. Smaller pitches, like P1.5, offer better detail but cost much more.

Also, consider the maximum viewing distance — a larger area ensures content remains clear from far away.

2. Content Resolution and Signal Sources

Common video sources include 1920×1080 (Full HD) and 3840×2160 (4K).

Ideally, the screen’s total pixel count should match your content resolution.

For example:

A 4K video looks best when the screen’s horizontal pixels are close to 3840.

If your screen’s resolution is much lower, 4K content will lose its sharpness.

Therefore, always match screen size and resolution to your playback needs to achieve the best performance and cost balance.

3. Application Scenarios

Different environments require different LED screen sizes and pixel pitches. For further information: Common LED Display Types and Application Scenarios

Outdoor Advertising: Go for larger screens with wider pixel pitches (like P6–P10). These offer high brightness and visibility from a distance.

Conference Rooms: Choose smaller pixel pitches (P1.5–P2.5) for clear, detailed visuals at close range.

Broadcast Studios: Match the screen size with your set design and camera angle. High refresh rates prevent flicker on camera.

Stage Events: Large, eye-catching LED walls with custom shapes are popular. Pixel pitch can be larger since viewers are farther away.

Retail Stores: Medium-sized displays with fine pixel pitch create vivid, lifelike product visuals.

Common Mistakes When Measuring LED Screen Size

Even experienced buyers can make simple errors that lead to installation issues or budget waste. Here are the most common LED screen measurement mistakes and how to avoid them.

Mistake 1: Using the Diagonal Measurement

Unlike TVs, LED screens are usually measured by width × height, not the diagonal.

Remember to record the horizontal and vertical measurements, and note the units (meters or millimeters).

Mistake 2: Ignoring Module or Frame Thickness

Some users only calculate the display area, forgetting about bezels and structural parts.

Always include a small allowance for seams and frames (2–5 mm per module).

Mistake 3: Mixing Measurement Units

Millimeters (mm), centimeters (cm), and meters (m) are often confused.

1 meter = 1000 mm = 100 cm.

Noted: For accuracy, measure in millimeters and convert to meters if needed.

Mistake 4: Forgetting the Pixel Pitch Impact

If you use the wrong pixel pitch value, the calculated screen size will be off.

Total width = Horizontal pixels × Pixel pitch

Total height = Vertical pixels × Pixel pitch

Mistake 5: Not Measuring Installation Space

Some installation problems come from measuring only the screen, not the site.

Always check wall width, height, and structure load. Leave 10–20 cm for heat dissipation and cables.

Conclusion

To measure an LED screen correctly, consider module splicing, pixel pitch, frame structure, and installation environment together.

This ensures accurate, safe, and cost-effective installation.
