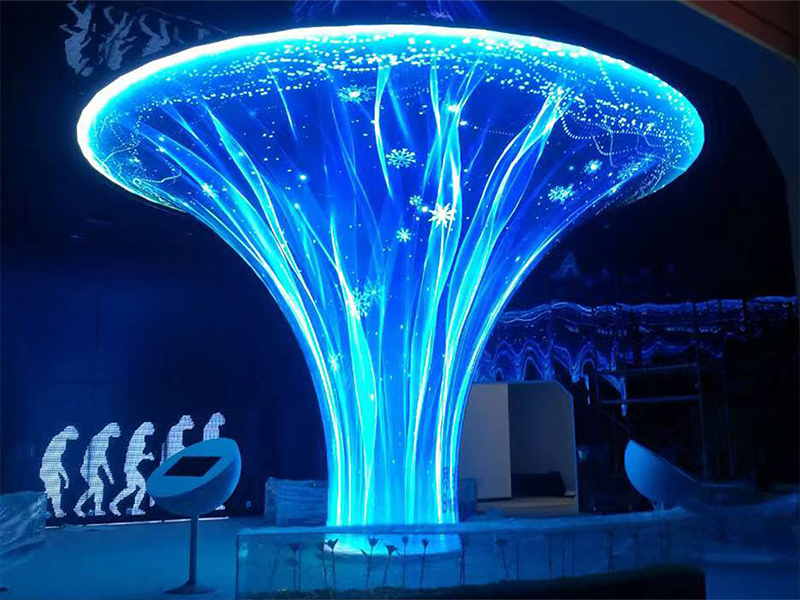

How to Build a Cylindrical LED Display in a Column-Free Hall

In a column-free space, installing a cylindrical LED display requires solving three core challenges:
structural support, visual presentation, and spatial integration.

Below is a systematic approach used in real-world projects.

1. Structural Support Solutions

1.1 Suspended Installation (Recommended for High Ceilings)

Best for: spaces with ceiling height ≥ 6 m and reliable overhead load-bearing structures (beams, trusses, or reinforced systems).

Advantages:

• No floor occupation
• Strong “floating” visual effect

Note:
Always have a structural engineer verify roof load capacity before installation.

1.2 Self-Supporting Base (For Limited Height or No Rigging)

When suspension is not feasible, use a ground-supported solution.

Design tip:
You can integrate the base into the environment—turn it into seating, a planter, or a display platform to hide the structure and add functionality.

2. Visual Content Design

2.1 Adapting Content to Cylindrical Geometry

The key rule is simple: always apply cylindrical projection mapping to avoid distortion.

• Horizontal content (360° loop)
  Ideal for audiences walking around the screen. Use panoramic visuals.
• Vertical content (layered information)
  Works well for viewers standing close and looking upward.
• Glasses-free 3D content
  Use the cylinder’s curvature to create parallax effects and depth perception.

2.2 Audience Flow Planning

The viewing experience depends heavily on how people move through the space.

3. System Integration

3.1 Thermal Management and Acoustics

• Cooling
  For suspended systems, design vertical airflow channels (chimney effect) or use modules with built-in low-noise fans.
• Audio
  Integrate full-range speakers inside the structure, or use directional speakers mounted above.

3.2 Interactive Features (Optional but High Impact)

3.3 Hidden Engineering (Critical but Often Overlooked)

• Power supply
  Route cables internally through the column; feed power from the top or bottom.
• Control system
  Support both standalone (asynchronous) playback and integration with a central control system.
• Maintenance access
  Use front-service modules combined with lifting mechanisms to ensure every pixel is reachable.

Conclusion

A cylindrical LED display in a column-free hall is not just a display—it’s a spatial centerpiece.

Success depends on aligning three layers:

• Structure ensures safety and feasibility
• Content drives immersion and visual impact
• Integration guarantees long-term operation and usability

When these elements work together, the result feels seamless, stable, and visually striking.
