How to Replace a Module on a Spherical LED Display

A faulty module can cause black areas, flickering, abnormal colors, or dead pixels on a spherical LED display. However, replacing the module should not be the first step.

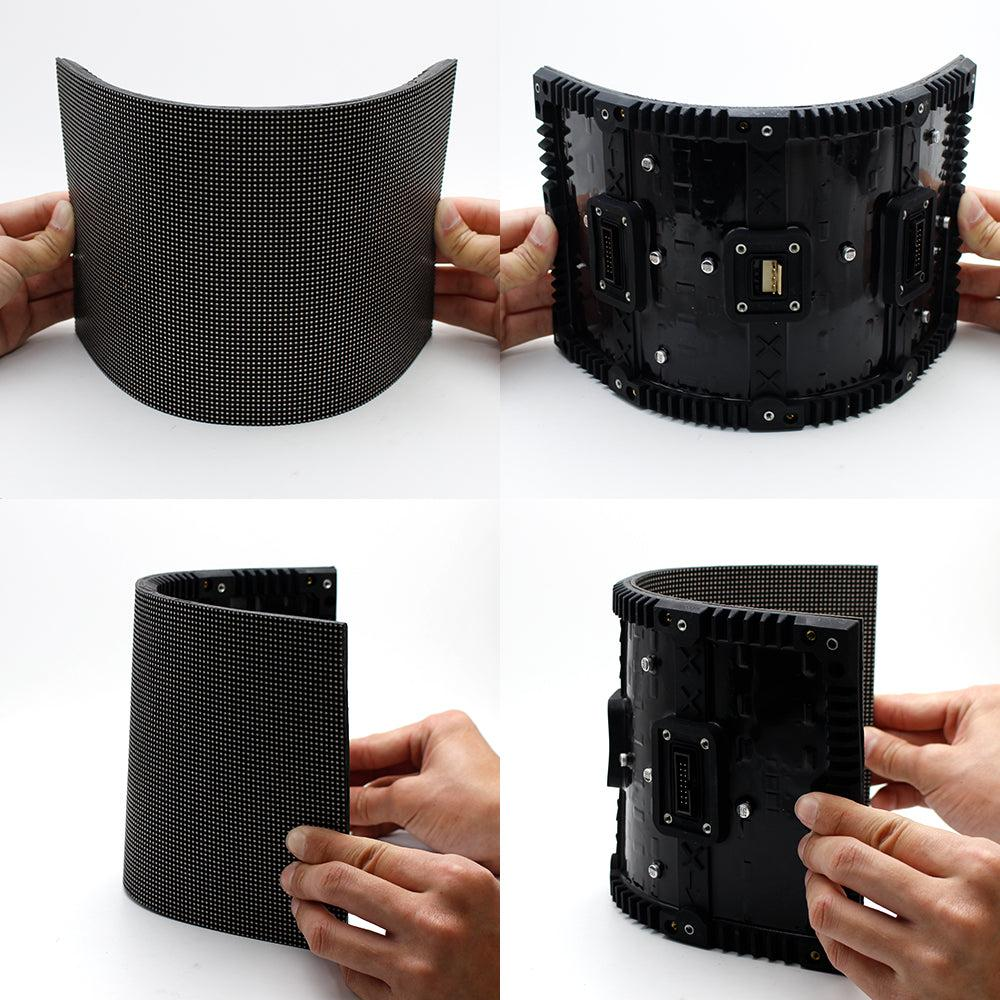

Unlike a normal flat LED screen, a spherical LED display uses a curved structure. Some models may also use flexible, fan-shaped, trapezoidal, or customized LED modules. This means the module position, shape, connector direction, and curvature all need to be checked carefully before replacement.

This guide explains how to replace a module on a spherical LED display safely and correctly.

1. Confirm the Module Is Really Faulty

Before removing anything, make sure the problem comes from the LED module itself.

A black module may also be caused by:

• Loose signal cable
• Poor power connection
• Damaged ribbon cable
• HUB board failure
• Receiving card problem
• Incorrect configuration

Start by running red, green, blue, white, and video test patterns.

If one module remains abnormal while surrounding modules work normally, check its power and signal connections first.

If possible, test the position with a known good compatible module. If the good module works normally, the original module is probably faulty.

For a spherical LED display, do not randomly swap modules from different areas of the sphere. Different positions may use different module shapes or PCB designs.

2. Prepare the Correct Replacement Module

Before replacement, compare the spare module with the original one.

Check:

• Pixel pitch
• Module size
• Module shape
• PCB version
• Connector position
• Mounting method
• Indoor or outdoor specification

For example, a P2.5 spherical LED module cannot simply be replaced with another P2.5 module from a different product.

Even if the pixel pitch is the same, the curvature, connector layout, scan mode, or PCB design may be different.

For customized spherical LED displays, it is best to keep spare modules from the original project.

This also helps reduce color and brightness differences after replacement.

3. Tools You May Need

The exact tools depend on the structure of the LED sphere.

Common tools include:

• Screwdriver
• Magnetic module removal tool
• Anti-static wrist strap
• Spare module
• Spare signal cable
• Soft protective pad
• Laptop with LED control software

Do not use sharp tools to force the module out.

This may damage nearby LEDs or the PCB.

4. Power Off the Spherical LED Display

Before replacing the module, shut down the display completely.

Turn off the LED screen and isolate the relevant power supply.

Do not connect or disconnect LED modules while the system is powered unless the manufacturer specifically allows it.

For large suspended spherical LED displays, technicians should also use safe maintenance platforms or lifting equipment.

5. Record the Module Position

Before removing the faulty module, take photos.

Record:

• Module location
• Orientation
• Cable direction
• Connector position
• Nearby modules

This is especially important for spherical LED screens because some modules may look similar but belong to different areas.

A simple photo can make reinstallation much easier.

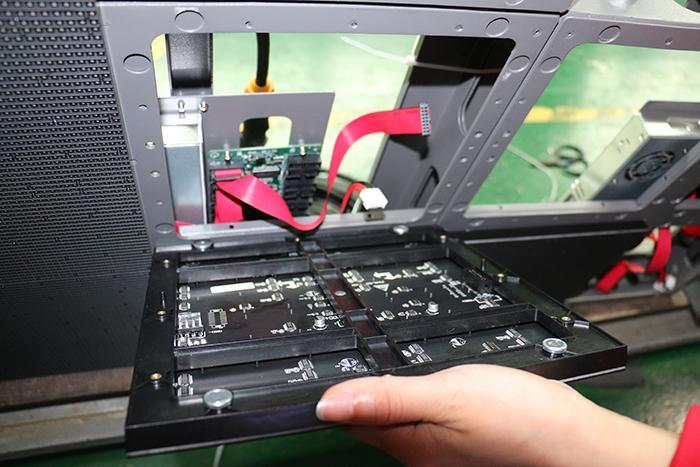

6. Remove the Faulty Module Carefully

First identify how the module is fixed.

It may use:

• Screws
• Magnets
• Magnetic screws
• Clips
• Customized brackets

Release the fixing points evenly.

Do not pull strongly from one corner.

Because the surface is curved, forcing one side outward may damage the edge of the module or neighboring LED lamps.

Pull the module outward slowly.

There may be very little cable length behind it.

Stop once you can reach the signal and power connectors.

7. Disconnect the Signal and Power Cables

Disconnect the signal cable first.

Hold the connector body rather than pulling directly on the ribbon cable.

Then disconnect the power cable.

Check the connectors for:

• Burn marks
• Corrosion
• Loose contacts
• Bent pins
• Damaged wires

If the connector itself is damaged, replacing only the LED module may not solve the problem.

8. Compare the Old and New Modules

Before installation, place the old and new modules side by side.

Confirm that the following match:

• Shape
• Dimensions
• Pixel pitch
• Connector type
• PCB layout
• Mounting points

If anything looks different, stop and confirm the correct spare part.

Do not force an incompatible module into the spherical structure.

9. Install the New Module

Reconnect the signal and power cables according to the original direction.

Make sure all connectors are fully inserted.

Then position the new module on the sphere.

Check that it follows the same curvature as the surrounding modules.

The gaps between modules should also remain even.

Secure the module gradually and evenly.

Do not overtighten screws, as this may bend the PCB or affect surface alignment.

10. Power On and Test the New Module

After installation, restore power and check the replacement module.

Run several test images:

• Red
• Green
• Blue
• White
• Black
• Grayscale
• Moving video

Check for:

• Dead pixels
• Flickering
• Wrong colors
• Brightness differences
• Visible seams
• Mapping errors

Do not only look at the screen from the front.

A spherical LED display can be viewed from many angles, so inspect the repaired area from different positions.

11. What If the New Module Is Brighter?

This is common when replacing a module on an older LED display.

The original LEDs may have operated for thousands of hours, while the replacement module is new.

Different production batches can also create small brightness differences.

If the new module looks brighter, use the LED control or calibration software to adjust its brightness.

Do not replace the module again unless there is a real hardware problem.

12. What If the New Module Has a Different Color?

A replacement module may appear slightly red, blue, green, or yellow compared with surrounding modules.

Possible causes include:

• Different LED batch
• Different aging level
• Calibration data
• Incorrect configuration

First confirm that the replacement module is the correct model.

Then adjust brightness and color calibration if necessary.

Using spare modules from the original project usually gives better color consistency.

13. Common Mistakes to Avoid

During spherical LED display module replacement, avoid these common mistakes:

• Replacing the module without checking cables first
• Using a module from the wrong sphere position
• Pulling the module too quickly
• Pulling cables instead of connectors
• Pressing directly on LED lamps
• Forcing the module into position
• Ignoring surface alignment
• Skipping RGB and white tests
• Forgetting brightness and color calibration

A successful replacement is not only about making the new module light up.

It should also match the surrounding modules mechanically and visually.

14. Keep Spare Modules for Future Maintenance

For spherical LED displays, keeping spare modules is highly recommended.

Customized LED spheres may use special module shapes that are difficult to replace quickly after several years.

Spare modules should be stored in a clean, dry, anti-static environment.

Label each spare with information such as:

• Pixel pitch
• Module type
• Sphere position
• PCB version
• Project name

This can greatly reduce downtime when a fault occurs.

Why Choose TOOSEN Spherical LED Displays?

TOOSEN provides customized spherical LED displays for indoor and outdoor applications.

Different sphere diameters, pixel pitches, installation methods, and maintenance structures can be designed according to project requirements.

TOOSEN spherical LED displays are suitable for applications such as:

• Shopping malls
• Museums
• Exhibition halls
• Retail stores
• Events
• Hotels
• Creative commercial spaces

For customized projects, TOOSEN can also provide spare modules, technical guidance, OEM and ODM services, and after-sales support.

A good spherical LED display should not only look impressive. It should also be designed for easier installation, maintenance, and future module replacement.

FAQs

Can I replace a spherical LED module myself?

If you have LED display maintenance experience and the product supports front maintenance, the process may be relatively simple. Otherwise, it is safer to contact the manufacturer or a professional technician.

Can I use any module with the same pixel pitch?

No. The module shape, PCB design, connector layout, scan mode, and curvature must also match.

Why is the new module brighter than the old one?

The existing screen may have aged while the replacement module is new. Calibration can usually reduce the difference.

Conclusion

Replacing a module on a spherical LED display is not difficult when the correct process is followed.

First, confirm that the module is actually faulty. Then identify the exact module position, prepare a matching replacement, turn off the display, remove the module carefully, reconnect the cables, align the new module with the curved surface, and perform complete RGB, white, grayscale, and video tests.

The most important difference between a spherical LED display and a normal flat LED screen is the structure. Module shape, curvature, position, and mapping all need to match.

With proper spare parts, good maintenance records, and correct calibration, a spherical LED display can be repaired quickly and continue operating with a smooth and consistent visual effect.
