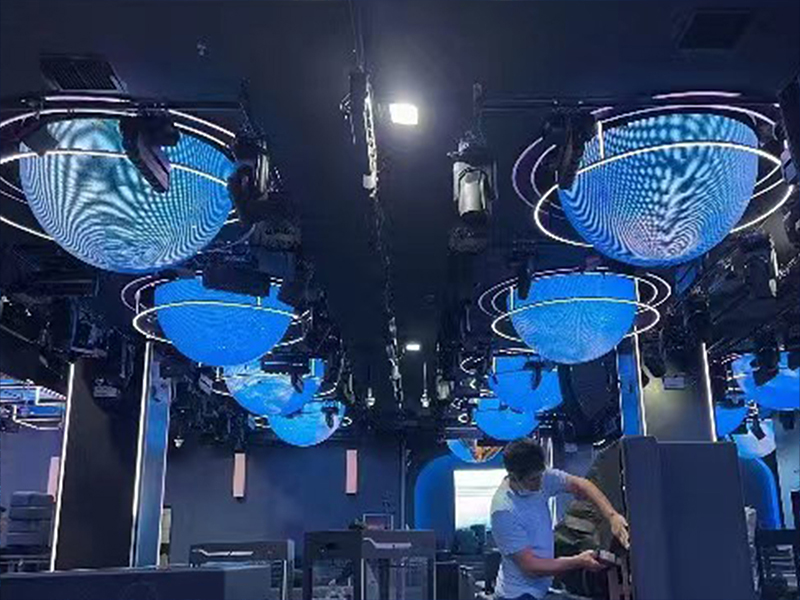

How to Prevent and Fix Electrical Leakage in Irregular LED Screens

Irregular LED screens—also known as custom-shaped or creative LED displays—have become a centerpiece in retail spaces, stage productions, and public art installations. Their unconventional forms create immersive visual impact. However, their complex structures also introduce higher electrical risk, especially when it comes to leakage current.

If you design, install, or maintain these systems, you must treat electrical leakage as a critical safety issue—not a minor fault.

This guide explains why leakage happens, how to detect it, and how to prevent it effectively.

What Causes Electrical Leakage in LED Screens?

Electrical leakage in LED displays falls into two categories: normal leakage and dangerous leakage. You need to understand the difference before taking action.

1. Normal Leakage Current

Every LED screen uses switching power supplies. These power supplies include EMI (Electromagnetic Interference) filters to stabilize current and reduce signal noise.

As a result:

• Each power supply generates a small leakage current (≈ 3.5mA)
• The system may carry an induced voltage of around 110V
• Large screens with dozens of power supplies accumulate leakage current

In large irregular LED setups, the total leakage current can reach tens of milliamps.

This is normal behavior, not a fault.

2. Dangerous Leakage (Fault Condition)

Real risk appears when insulation or wiring fails.

Common causes include:

• Damaged power cables
• Incorrect internal wiring
• Water ingress (rain, condensation)
• High humidity reducing insulation resistance

These conditions allow current to escape unintended paths, which can:

• Trigger breakers
• Damage components
• Create electric shock hazards

Warning Signs of Leakage in Irregular LED Screens

You should act immediately if you notice any of the following:

1. Frequent Circuit Breaker Trips

• Especially during rainy or humid conditions
• Indicates insulation degradation or accumulated leakage

2. Screen Flickering or Partial Blackouts

• Random flashing similar to old TV interference
• Sudden dark sections on the display

3. Overheating Control Box

• Normal temperature: below 50°C (122°F)
• If it feels unusually hot, investigate immediately

How to Prevent and Fix LED Screen Leakage

Now let’s move to the most critical part: practical solutions.

1. Implement Proper Grounding (Most Important)

Grounding is your primary defense mechanism.

A well-designed grounding system will:

• Reduce induced voltage to near 0V
• Safely discharge leakage current into the earth

Grounding Requirements:

• Use single-point grounding for the metal frame
• Ensure grounding resistance ≤ 4Ω

Common Grounding Mistakes to Avoid

Relying on Structural Columns

Outdoor steel columns are often embedded in concrete.

• Concrete resistance: 100–500Ω
• Result: poor current dissipation

Assuming Cabinet Connection Equals Grounding

• Painted surfaces act as insulators
• Screws loosen or oxidize over time
• Electrical continuity becomes unreliable

Sharing Ground with Lightning Protection

• Keep at least 20 meters distance
• Prevent ground potential rise during lightning events

2. Be Careful with RCD (Residual Current Devices)

At first glance, installing an RCD seems like a good idea. In reality, it often creates false tripping issues.

Why?

• LED screens already have normal leakage current
• Startup creates high inrush current

Standard 30mA RCDs may trip unnecessarily.

Recommended approach:

• Do not rely solely on RCDs
• Use:
  • Proper grounding
  • Standard circuit breakers
  • High-quality power distribution design

3. Perform Regular Inspection and Maintenance

Preventive maintenance reduces most leakage risks.

Electrical Testing

• Measure insulation resistance with a digital multimeter
• Expected value: >10MΩ (shell to ground)
• Verify grounding resistance meets standards

Moisture and Waterproofing Control

Irregular LED screens have complex geometries, which create weak points.

Focus on:

• Power entry points
• Panel seams
• Cable interfaces

If water enters the system:

• Cut power immediately
• Wait until the system is completely dry before restarting

Tighten Electrical Connections

Thermal expansion causes screws to loosen over time.

Loose connections lead to:

• Poor contact
• Heat buildup
• Increased leakage risk

Schedule periodic tightening of all terminals.

When to Call a Professional

If you detect leakage but cannot identify the root cause:

• Shut down the system immediately
• Do not operate under load
• Contact a qualified LED technician

Never attempt live maintenance on a suspected leakage system.

Conclusions

Irregular LED screens deliver stunning visuals, but they also demand higher engineering discipline. Their complex structures increase the likelihood of electrical issues, especially leakage.

To stay safe and reliable:

• Design a proper grounding system
• Understand normal vs. dangerous leakage
• Avoid misusing protective devices
• Maintain strict inspection routines

In LED systems, safety is not optional—it is part of the design.
