How to Measure DC Voltage Drop Across a Customized LED Display Before It Causes Brightness Differences

A customized LED display can look perfectly uniform during a short test but develop visible brightness differences after installation.

One section may look slightly darker than another. The modules close to the power supply may appear normal, while modules farther away gradually lose brightness.

Before replacing LED modules or adjusting calibration, one important value should be checked:

DC voltage at different points of the display.

Voltage drop can happen when DC power travels through long cables, multiple connectors, narrow internal wiring paths, or several modules connected to the same power branch.

For customized LED displays, this problem is especially important because the power route is rarely as simple as it is in a standard rectangular cabinet.

Why DC Voltage Drop Creates Brightness Differences

Most LED display modules operate from a low-voltage DC power supply, commonly around 5V DC.

The power supply may output the correct voltage, but this does not guarantee that every module receives the same voltage.

For example:

Power supply output: 5.0V

First module: 4.96V

Middle module: 4.87V

Last module: 4.68V

The voltage slowly decreases as current moves through cables, connectors, terminals, and PCB power paths.

When the voltage reaching one section becomes too low, the LED driver circuit may no longer operate under the same electrical condition as the rest of the screen.

The result can be:

• lower brightness;
• unstable grayscale;
• color differences;
• flickering under high brightness;
• modules that appear normal with dark content but become darker during a full-white image.

This is why brightness calibration should not be the first solution.

The electrical condition should be checked first.

Why Customized LED Displays Are More Sensitive

A conventional LED wall normally uses repeated cabinet layouts.

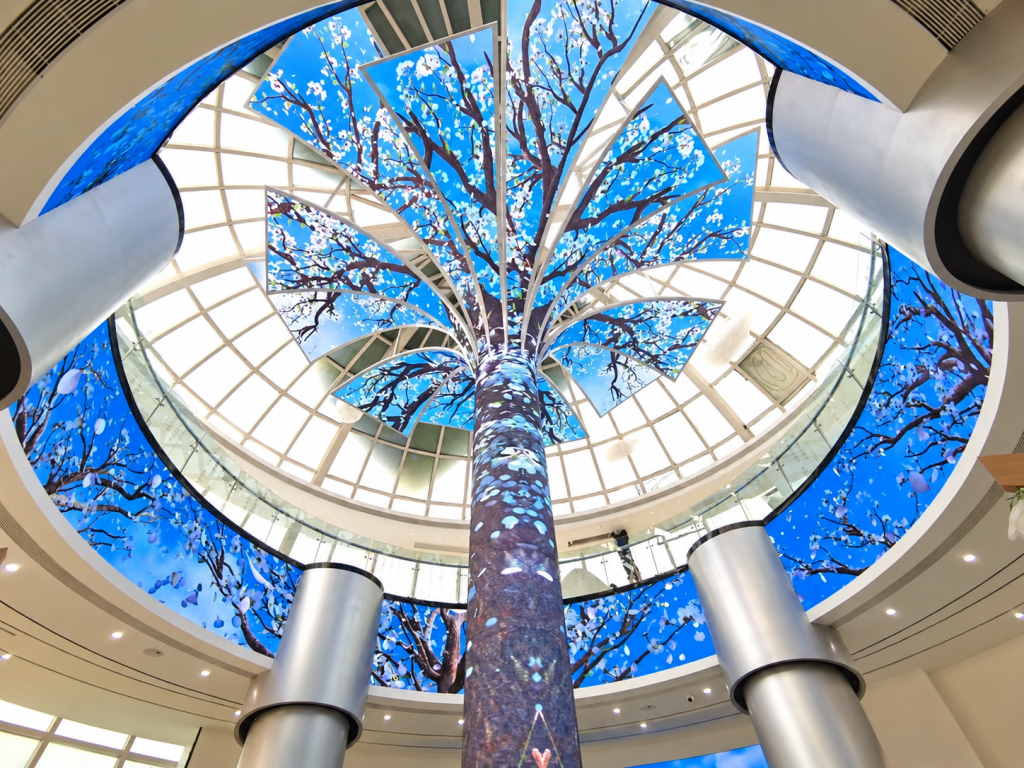

A customized LED display may include curves, spheres, cylinders, letters, narrow sections, corners, or irregular structures.

Inside these shapes, DC cables may need to travel around frames or through narrow spaces.

Some modules may also be physically much farther from the power supply than others.

The power route may look like:

Power supply → connector → cable → module → cable → module → cable → final module

Every connection introduces some resistance.

The longer the cable and the higher the current, the more important voltage drop becomes.

Connector condition also matters. A loose, damaged, or high-resistance connector may create both voltage loss and abnormal heating.

Measure Voltage Under Real Load

One common testing mistake is measuring voltage while the screen is showing dark content.

The result may look completely normal because current demand is low.

Instead, measure DC voltage under a controlled high-load condition.

A practical sequence is:

Black screen → normal video → 50% white → full white

The full-white image is especially useful because many LED modules draw significantly more current.

If a voltage-drop problem exists, it usually becomes easier to detect under this condition.

Keep the screen at the intended test brightness while measuring.

Do not change the brightness between different measurement points.

Where Should DC Voltage Be Measured?

Do not measure only at the power supply output.

The purpose of the test is to understand how voltage changes across the complete power path.

Measure at several points:

Point A – Power supply DC output

This confirms the actual source voltage.

Point B – First module on the branch

This shows the voltage loss between the PSU and the first load.

Point C – Middle module

This helps identify gradual voltage loss.

Point D – Last or farthest module

This is often the most important measurement.

ToosLED’s existing troubleshooting guidance also recommends comparing voltage near the power input with modules farther along the distribution path when investigating uneven brightness.

For irregular displays, label the measurement points directly on the wiring drawing.

For example:

PSU-01 → M01 → M02 → M03 → M04

Then record the voltage at each position.

Calculate the Actual Voltage Drop

The basic calculation is simple:

Voltage Drop = Source Voltage − End Voltage

If the power supply outputs:

5.05V

and the farthest module receives:

4.76V

then:

5.05V − 4.76V = 0.29V

The percentage voltage drop is:

Voltage Drop % = Voltage Drop ÷ Source Voltage × 100

So:

0.29 ÷ 5.05 × 100 ≈ 5.7%

This value gives engineers a much clearer picture than simply saying that the module “looks slightly darker.”

The acceptable operating range should always follow the module, power supply, and system specification rather than relying on one universal number.

Find Where the Voltage Is Being Lost

If the farthest module voltage is too low, do not immediately increase the power supply voltage.

First locate the section where the loss occurs.

Compare each measurement point.

For example:

PSU output: 5.03V

Module 1: 5.00V

Module 2: 4.98V

Module 3: 4.70V

Module 4: 4.67V

The large drop between Module 2 and Module 3 gives a useful diagnostic direction.

Inspect:

• DC connector condition;
• cable length;
• cable conductor size;
• terminal tightness;
• crimp quality;
• oxidation;
• excessive daisy-chaining;
• damaged cable;
• overloaded power branch.

If one connector has unusually high resistance, a thermal camera test may also show that location running hotter than neighboring connectors.

Improve the Power Distribution

If cable resistance or branch length is causing the problem, several changes may help.

Instead of feeding too many modules from one long power route, divide the screen into shorter electrical branches.

A better arrangement may be:

PSU A → Modules 1–3

PSU B → Modules 4–6

instead of:

One PSU → Modules 1–6

Other improvements may include:

• shorter DC cables;
• larger conductor cross-section;
• fewer unnecessary connectors;
• better-quality terminals;
• separate feeds for distant sections;
• better power supply load balancing.

For large customized LED displays, the physical shape should be considered when designing the electrical layout.

The shortest mechanical route is not always the best electrical route.

Re-Test After Changing the Wiring

Never finish the repair immediately after replacing a cable.

Repeat exactly the same test.

Use:

same test image → same brightness → same measurement locations → same operating condition

Then compare the before-and-after readings.

For example:

Before adjustment:

5.02V → 4.71V

After adjustment:

5.02V → 4.91V

This confirms whether the electrical change actually reduced the voltage loss.

After the voltage test, display white, gray, red, green, and blue screens again.

Check whether the brightness difference has disappeared.

Application Example

Consider a curved customized LED display with several narrow sections.

During factory testing, the screen looks uniform while playing normal video.

However, when a full-white image is displayed, the modules at one end appear slightly darker.

Technicians measure:

Power supply: 5.04V

Near module: 5.00V

Middle module: 4.89V

End module: 4.69V

Inspection shows that the final section uses a long DC cable passing around the curved frame.

The power branch is redesigned with a shorter independent feed.

After modification, the end module measures 4.92V under the same full-white test.

The brightness difference is no longer visible.

The LED modules themselves did not need replacement.

The problem was power distribution.

FAQ

Can I measure voltage only at the power supply?

No. The PSU voltage may be correct while the farthest module receives a much lower voltage.

Should voltage be measured while the screen is running?

Yes. Measuring under real load is much more useful than testing an unloaded circuit.

Why does the problem appear mainly on a white screen?

Bright content increases current demand, making resistance-related voltage drop easier to expose.

Can calibration fix voltage-drop brightness differences?

Calibration may hide small visual differences temporarily, but it does not correct the electrical cause.

Should I simply increase the PSU output voltage?

Not before checking the wiring. Excessive voltage may create another problem for modules closer to the power supply.

Test Power Distribution Before Shipment

For a customized LED display, electrical inspection should include more than checking whether the screen powers on.

At ToosLED, customized display projects can be checked according to the actual structure, module layout, power supply distribution, cable route, connector condition, and operating load.

A practical inspection can include:

Power supply output → first module → middle module → farthest module → full-white test → brightness comparison → wiring adjustment → re-test

Finding voltage drop during factory testing is much easier than discovering it after the display has already been installed inside a curved wall, ceiling structure, exhibition feature, or other custom installation.

Stable DC power distribution helps keep the customized LED display consistent, reliable, and easier to maintain over long-term operation.
