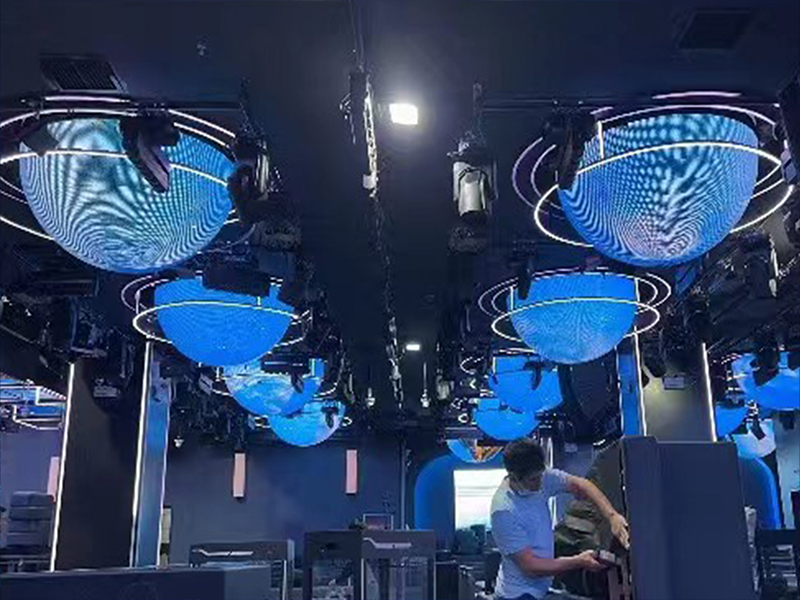

How to Install a Ceiling LED Screen

Ceiling LED screens—also known as sky screens or dome displays—are large-format visual systems suspended overhead. They consist of modular LED panels, a dedicated mounting structure, power supplies, and a control system. You’ll often see them in shopping mall atriums, pedestrian streets, and entertainment venues, where they enhance visual impact, increase foot traffic, and keep visitors engaged.

For example, some of the largest installations in Europe span up to 1,000 square meters, creating immersive, almost cinematic environments.

However, installing a ceiling LED screen is not a simple task. It requires careful structural planning, electrical safety compliance, and precise system calibration. Below is a step-by-step breakdown of the process.

1. Pre-Installation Planning

Before you begin, assess the structural conditions of the ceiling. This step determines whether the installation is feasible and safe.

Evaluate Ceiling Structure and Load Capacity

First, identify the type of ceiling:

• Concrete structure
• Steel framework
• Suspended (false) ceiling

LED screens typically weigh 20–50 kg per square meter, so you must confirm that the structure can support the combined weight of:

• LED modules
• Mounting frame
• Power and control components

If necessary, consult a structural engineer to validate load-bearing capacity.

2. Site Survey and System Design

Next, conduct a professional site inspection to define the technical approach.

Key Tasks:

• Measure the installation area precisely
• Determine power supply and network access points
• Plan cable routing paths

Choose Pixel Pitch and Screen Size

Select the appropriate pixel pitch based on viewing distance:

• Smaller pitch = higher resolution (for close viewing)
• Larger pitch = more cost-efficient (for long distances)

At the same time, ensure the screen dimensions match the available ceiling space and desired aspect ratio.

3. Tools and Materials Preparation

Before installation starts, gather all required equipment:

Core Components:

• LED modules
• Power supplies
• Receiving cards
• Control system

Structural Materials:

• Steel or aluminum mounting frame
• Expansion bolts / embedded anchors
• Suspension rods (≥ 8 mm diameter recommended)

Tools:

• Laser level
• Electric drill
• Fasteners and alignment tools

Proper preparation reduces delays and prevents on-site errors.

4. Mounting Structure Installation

The mounting system forms the backbone of the entire LED installation.

Build the Support Frame

Install expansion bolts or pre-embedded anchors into the ceiling. Then assemble or weld the custom steel structure according to the design drawings.

If you’re working with a suspended ceiling:

• Use threaded rods (minimum 8 mm diameter)
• Keep spacing within 50 cm intervals
• Add anti-fall safety devices for redundancy

Leveling and Alignment

Use a laser level to calibrate:

• Horizontal alignment
• Vertical positioning

Keep tolerance extremely tight. Even minor deviations will affect screen flatness and visual quality.

5. Electrical Wiring and Module Assembly

Now move on to wiring and panel installation.

Proper Cable Management

Separate power and signal lines:

• Maintain at least 30 cm
• Use independent conduits

This separation minimizes electromagnetic interference and ensures stable signal transmission.

Install Power Supplies and Receiving Cards

Secure these components to the rear side of the frame. Make sure they are accessible for maintenance.

Assemble LED Modules

Start from one corner or edge and proceed systematically:

• Fix modules using magnets or screws
• Adjust height and alignment in real time
• Ensure seamless joints and a flat surface

Precision here directly affects the final display quality.

6. System Testing and Calibration

Before final delivery, conduct a full system check.

Pre-Power Safety Inspection

• Verify all wiring connections
• Check for short circuits or polarity errors
• Measure grounding resistance

Power-On and Display Calibration

Once powered:

• Configure resolution and refresh rate via control software
• Test solid colors (red, green, blue, white)
• Identify dead pixels, color inconsistencies, or brightness issues

Fine-tune brightness, contrast, and color uniformity to achieve optimal performance.

7. Finishing and Handover

Finally, complete the installation with finishing touches.

Final Steps:

• Add decorative trim around the screen edges
• Clean the installation site
• Provide operational training to the client

Once completed, the system is ready for content deployment.

Conclusions

Installing a ceiling LED screen involves more than just mounting panels overhead. It’s a multidisciplinary engineering project that combines structural mechanics, electrical systems, and digital display technology.

If you approach each step methodically—from structural assessment to final calibration—you can deliver a safe, visually stunning installation that transforms any space into an immersive experience.
