How to Handle LED Screen Corners for Seamless Splicing

When you design LED screens around corners, your goal is straightforward: create a visually seamless transition and maintain content continuity across surfaces. To achieve this, you need to coordinate three layers of execution—custom hardware, precision installation, and software calibration.

1. Core Technical Solutions: Custom Modules & Cabinets

The most reliable way to solve corner splicing challenges is to adapt the hardware to the geometry.

Angled Modules (for 90° corners)

For right-angle corners, use modules with pre-designed angled housings—typically 45° beveled edges.

• These modules align perfectly at the corner
• They eliminate physical interference caused by module thickness
• They minimize visible seams and ensure a clean edge

Result: A sharp, well-defined corner with strong visual continuity.

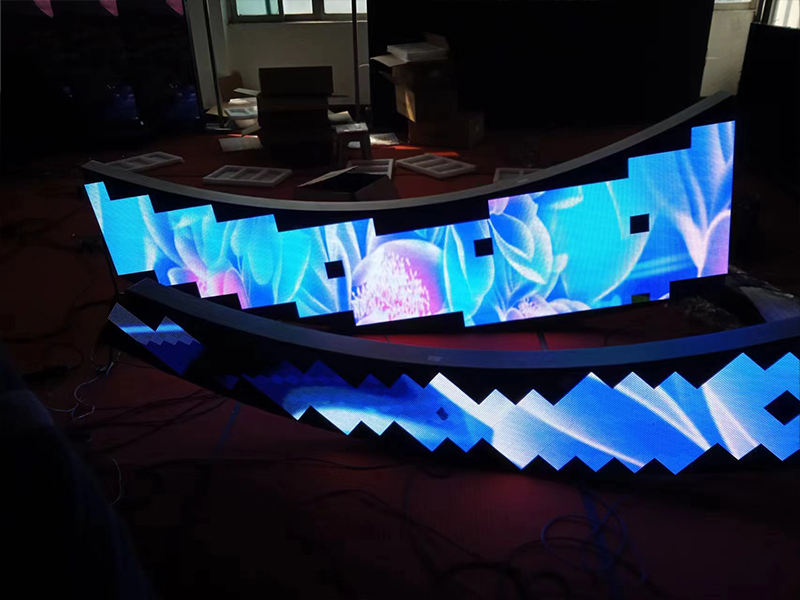

Flexible Modules (for curved corners)

For arcs or irregular transitions, flexible LED modules provide the best solution.

• They bend to match calculated curvature
• They support continuous, gap-free assembly
• They handle tight radii and complex geometries effectively

Result: Smooth, flowing transitions—ideal for creative or organic designs.

Adjustable-Angle Cabinets (for flexibility on-site)

Some high-end systems—such as the Absen FL Series—feature adjustable connection mechanisms.

• Installers can fine-tune cabinet angles (e.g., ±45° range)
• Rotation handles or locking systems simplify adjustments
• One system can support multiple corner configurations

Result: Faster installation and greater adaptability across different designs.

2. Key Implementation Workflow

Even the best hardware won’t deliver clean results without disciplined execution.

Design Phase: Model First, Build Later

• 3D Modeling
  Engineers simulate the installation environment and calculate:
  • Exact corner angles or curvature
  • Module layout and quantity
  • Structural alignment
• Factory Pre-Assembly
  For complex corners:
  • Pre-install and test modules in the factory
  • Label each unit for precise on-site positioning
  • Eliminate cumulative installation errors

Installation Phase: Precision is Critical

• Accurate Structural Alignment
  Use tools like laser levels to ensure:
  • Flatness of mounting surfaces
  • Exact corner angles
• Mechanical Fine-Tuning
  Adjust each module using:
  • Micro-adjustment screws
  • Locking clips or brackets
  This step removes gaps and ensures that the entire surface—especially at the corner—remains flush and continuous.

3. Final Optimization: Software Calibration

After hardware installation, software refinement ensures visual perfection.

Pixel-Level Brightness & Color Calibration

Corners often appear inconsistent due to viewing angles. Calibration tools:

• Adjust brightness pixel by pixel
• Correct color deviations
• Equalize visual output across flat and angled surfaces

Result: Uniform brightness and color across the entire display.

Content Geometry Correction

When content spans across angles or curves, distortion can occur. Control systems:

• Apply pre-distortion (inverse mapping) to the content
• Maintain correct proportions when displayed
• Prevent stretching or warping at corners

Result: Natural, undistorted visuals regardless of screen shape.

Conclusion

To achieve high-quality corner splicing:

• Start with geometry-matched hardware (angled, flexible, or adjustable systems)
• Execute with precision during installation
• Refine with software calibration

When these three layers align, the corner transitions disappear visually—leaving a continuous, immersive display surface instead of segmented panels.
