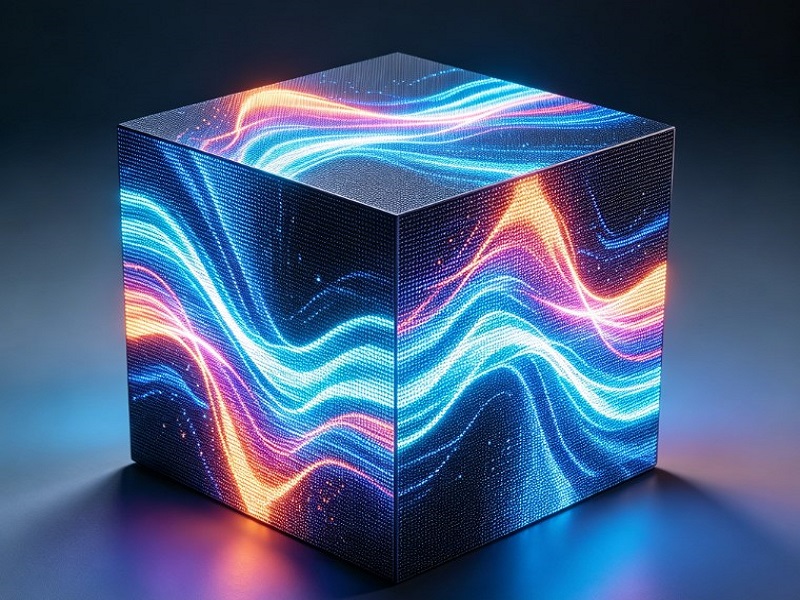

How to Fix Lag and Black Rubik’s Cube LED Screen?

Imagine this: You design a stunning, high-budget video for your new 3D Rubik’s Cube LED display. On your computer monitor, the footage plays flawlessly. But the moment you output the signal to the actual cube screen, catastrophe strikes. The video stutters, lags, and suddenly, the screen goes completely black.

Because a Rubik’s Cube LED screen uses six interconnected faces, its data routing and power distribution are incredibly complex. When your computer behaves but the big screen glitches, you are likely dealing with a bottleneck in signal transmission, data processing, or power supply.

Fortunately, you can fix this. Follow this step-by-step troubleshooting guide to get your 3D display running smoothly again.

1. Optimize Your Video Resolution and Bitrate

The Problem: People often forget that a Rubik’s Cube display requires a unique layout. To map video onto six squares, software often stitches the footage into one massive, unusually shaped canvas. If your video resolution or bitrate is too high, your media player will struggle to decode the file. This creates a bottleneck at the sending card, which drops frames and causes severe lagging.

The Solution:

• First, compress your video. Convert your footage into a highly efficient format like MP4 (H.264 or H.265) and lower the bitrate.
• Next, open your computer’s graphics card settings. Ensure that both your primary monitor and the LED sending card share the exact same refresh rate (typically 60Hz).

2. Check Your Network Cable Bandwidth

The Problem: Standard LED control systems (like NovaStar or Colorlight) have limits. A single Gigabit Ethernet cable can only carry about 650,000 pixels at 60Hz. Because a Rubik’s Cube screen has six sides, your total pixel count can easily push this limit. When you play a fast-moving, colorful video, the data surge overloads the cable, resulting in dropped packets, lag, and sudden blackouts.

The Solution:

• Open your LED configuration software and check the “Screen Connection” map. Calculate the exact pixel load on each cable.
• If you are nearing the limit, split the load. Run two or four separate network cables from the sending card to different faces of the cube.
• Always upgrade to high-quality, pure copper Cat6 cables to guarantee a stable data flow.

3. Audit the Internal Daisy-Chain Wiring

The Problem: To power a closed, six-sided cube, engineers must daisy-chain the internal receiving cards together using short network cables. If you chain too many cards together, the signal degrades as it travels around the loop. Furthermore, if a single loose ribbon cable or network port glitches on side three, every single face down the line will start stuttering or drop to black.

The Solution:

• Pop open the cube access panel and inspect the internal cables. Firmly reseat every network plug and ribbon connector.
• To permanently fix signal degradation, reduce the chain length. Instead of running one long wire through all six faces, run multiple main lines directly from the controller to individual sections.

4. Test for Power Supply Overload

The Problem: Does your screen only go black during bright, white, or highly dynamic scenes? If so, you have a power problem, not a software bug. White screens demand maximum electrical current. If your internal switching power supplies are aging or underpowered, a bright flash will trigger their over-current protection, causing the screen to instantly black out. Once the video switches to a darker scene, the power resets, and the screen pops back on.

The Solution:

• Run a diagnostic test by playing a solid black video, followed by a solid white video. If the white screen triggers an immediate blackout, your power supplies are failing.
• Grab a multimeter and measure the voltage at the LED modules during a heavy visual load. If the voltage drops below 4.5V (it should sit around 5V), you need to replace the faulty power supply units.

5. Adjust Graphics Card and Software Settings

The Problem: Just because a video looks smooth on your desktop doesn’t mean your graphics card is sending a clean signal to the LED sending card. Driver conflicts or incorrect hardware acceleration settings can cause the media player to output an incredibly low frame rate to your external display.

The Solution:

• Update your computer’s graphics card drivers to the latest version.
• Open your LED playback software settings and experiment with the GPU Hardware Acceleration toggle. Turn it off if it is on, or vice versa, to see if the playback stabilizes.

Quick Diagnostic Cheat Sheet

• If the entire cube goes black simultaneously: Focus your attention on the main sending card, the primary network cable, or the main power breaker.
• If only one or two faces lag or go black: The issue lies inside the cube. Inspect the receiving cards, internal jump cables, or local power supplies for those specific faces.
