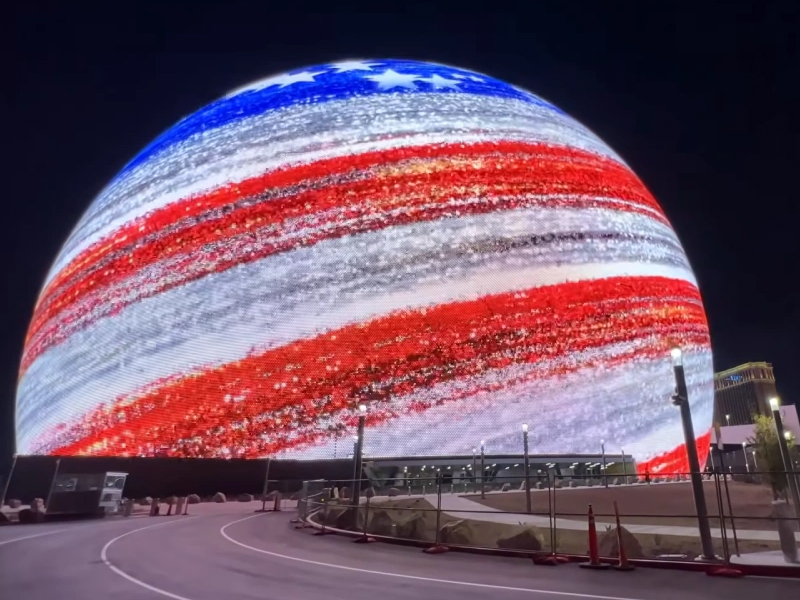

How to Build a Curved LED Display—and Achieve a Seamless Result

Architectural projects with artistic or irregular forms often demand more than standard rectangular LED screens. Traditional flat displays tend to clash with flowing architectural lines and can disrupt the overall aesthetic. To address this, curved LED displays have become the preferred solution because they conform naturally to complex surfaces.

However, achieving a clean and seamless curved display requires careful planning. Two factors matter most: the radius of the structure and the physical design of the LED modules—especially the shape of the module housing.

Understanding Curved LED Types

Curved LED displays can take several forms, including:

• Concave (inward curve)
• Convex (outward curve)
• Circular
• Elliptical
• Semi-circular

To match these shapes, engineers design LED cabinets with specific curvature using geometric calculations. They then assemble these cabinets into a complete screen, while the supporting steel structure follows the display’s exact curvature—not the other way around.

Why Module Orientation Matters

If you use traditional horizontal modules, several issues tend to appear:

• Visible gaps between modules
• Uneven curvature
• Poor adaptability to tighter curves

To solve this, most modern projects use vertical modules. This configuration improves surface continuity, reduces visible seams, and makes it easier to achieve smooth large-radius curves.

Three Common Construction Approaches

In practice, the construction method depends largely on the curvature radius:

1. Radius > 1 meter

For larger curves, the solution is relatively straightforward.
You can use vertically oriented, strip-shaped cabinets and assemble them directly. This approach is cost-effective and easy to install.

2. Radius < 1 meter

As the curve tightens, standard cabinets no longer suffice.
You need to design cabinets with a built-in curvature. During installation, ensure precise alignment between modules to maintain a smooth arc.

3. Radius < 0.5 meters

For very tight curves, customization becomes essential.
You must create specialized units—typically narrow vertical modules—and design a fully curved steel structure to support them. At this level, both the modules and the structural system must work together precisely.

How to Evaluate Feasibility

Before committing to a curved LED installation, you should verify whether the design is achievable:

1. Check the module housing design
   Ask the manufacturer for the module’s draft angle (demolding angle). This determines how much the module can physically bend.
2. Calculate the structure’s radius
   Measure or derive the radius of the architectural curve.
3. Compare the values
   • If the structure’s radius is greater than the minimum supported radius, you can achieve a smooth, seamless curved or circular display.
   • If the radius is smaller than the minimum, gaps or visible segmentation will occur.

Conclusion

A high-quality curved LED display depends on aligning three elements: module capability, structural design, and geometric constraints. When these factors match, the result is a visually continuous, immersive surface. When they don’t, even small mismatches can lead to visible defects.

By prioritizing proper module selection, using vertical layouts, and validating curvature limits early, you can consistently achieve clean and professional curved LED installations.
