How Signal Redundancy Works in an LED Sphere Screen

A large LED sphere screen may contain thousands or even millions of pixels working together. Behind the visual effect is a network of controllers, signal cables, receiving cards, and LED modules.

If one part of this signal chain fails, a section of the sphere may lose its image, freeze, flicker, or turn black.

For a small decorative LED sphere, a short interruption may not be a major problem. But for a large spherical LED display used at an exhibition, shopping mall, museum, stage, or public installation, unexpected signal loss can be much more serious.

This is why signal redundancy is often considered for projects where display stability is important.

But how does LED sphere signal redundancy actually work?

What Is Signal Redundancy?

Signal redundancy means creating a backup path for display data.

In a basic LED display system, the signal may travel through a path like this:

Video Source → LED Controller → Ethernet/Fiber Cable → Receiving Cards → LED Modules

The receiving cards distribute the image data to the LED modules. As long as every part of the signal chain works correctly, the screen displays the content normally.

The problem appears when one important connection fails.

For example, if a signal cable between two sections is damaged or disconnected, receiving cards farther down that signal chain may stop receiving data.

A redundant system provides another route for the signal.

The basic idea is simple:

Primary Signal Path → Normal Operation

Backup Signal Path → Available When the Primary Path Fails

Depending on the control system and redundancy configuration, the display can use the backup route when the primary signal path has a problem.

Why Signal Routing Is Different on an LED Sphere

A conventional LED video wall has a relatively simple physical layout.

Cabinets are normally installed in straight rows and columns. Signal cables can therefore follow a predictable path from one cabinet to the next.

An LED sphere screen is different.

Its modules are arranged around a three-dimensional curved structure. Depending on the diameter and structural design, the modules may be divided into several sections around the sphere.

The receiving cards and signal cables must follow this physical structure.

Instead of thinking only from left to right, engineers may need to consider areas such as:

• upper section
• middle section
• equatorial area
• lower section
• separate hemispheres

This becomes more important as the sphere becomes larger.

If too many receiving cards depend on one long signal chain, one connection problem could affect a large area of the display. For this reason, signal routing should be considered during the design stage rather than after the sphere has already been assembled.

How Primary and Backup Signal Paths Work

Imagine that one section of a spherical LED display contains several receiving cards.

Under normal conditions, display data travels through the primary signal path:

Controller → Primary Port → Receiving Card 1 → Receiving Card 2 → Receiving Card 3

The receiving cards continue passing data through the assigned section of the display.

With redundancy, another signal route is prepared according to the capabilities of the selected control system.

Conceptually, the arrangement becomes:

Primary Port → Main Signal Path → Receiving Cards

and

Backup Port → Backup Signal Path → Receiving Cards

During normal operation, the primary path carries the display data.

If the supported control system detects a qualifying problem in the primary route, the redundant connection can provide another route for the affected receiving-card chain.

The exact switching method and redundancy topology depend on the controller, receiving cards, software, and system configuration used in the project.

That is why redundancy should be designed as part of the complete control system rather than treated as simply adding another Ethernet cable.

What Happens If One Signal Cable Fails?

Consider a large sphere installed in an exhibition hall.

Without redundancy, several receiving cards may be connected in sequence:

Controller → A → B → C → D → E

If the connection between B and C fails, C, D, and E may no longer receive the expected signal.

The result can be a noticeable dark or abnormal area on the sphere.

This is particularly obvious on a spherical display because visitors can view the screen from many directions.

With a properly configured redundant path, another connection can provide signal access to the affected section.

Instead of depending completely on one direction, the system has an alternative route.

This does not mean that redundancy can prevent every possible LED display failure. A damaged LED module, failed power supply, incorrect configuration, or damaged receiving card can still cause problems.

Signal redundancy mainly reduces risks related to the signal path it is designed to protect.

Why Large LED Spheres Can Be Divided Into Signal Zones

For larger spherical displays, one useful approach is to divide the screen into manageable signal areas.

For example, an engineering plan might separate the sphere into several receiving-card groups rather than creating one very long chain around the entire structure.

This provides several practical advantages.

First, troubleshooting becomes easier. If one section has a signal problem, technicians can identify the affected group more quickly.

Second, the impact of a fault can be limited. A problem in one signal area does not necessarily need to involve the complete sphere.

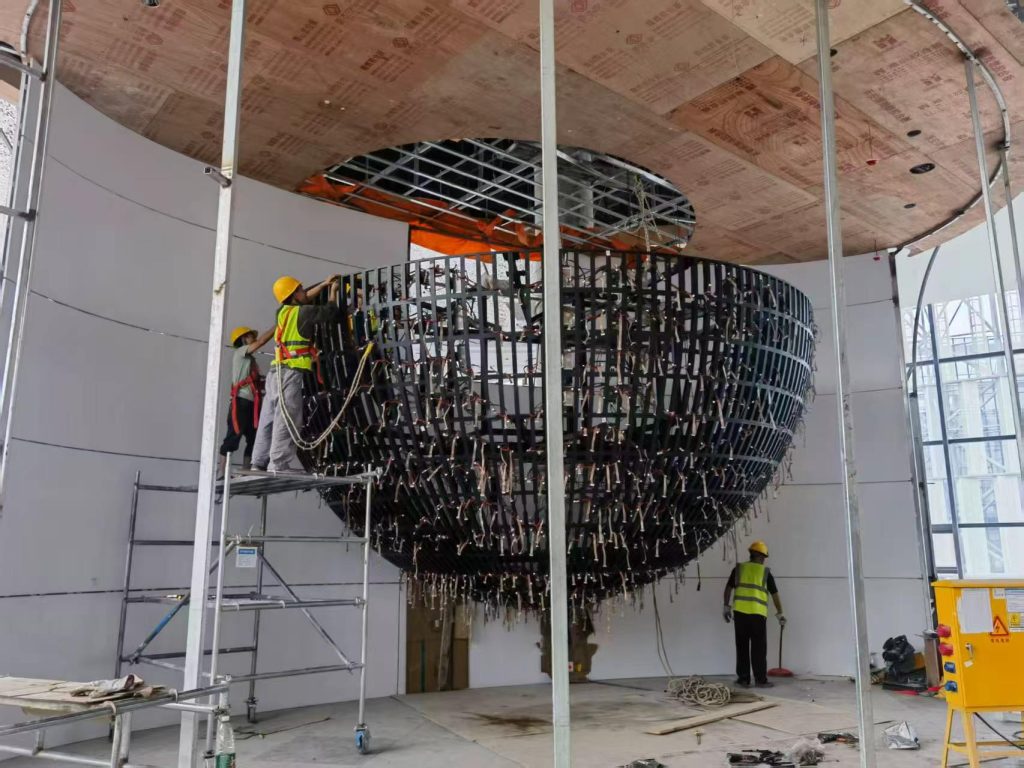

Third, cable routing can be planned around the actual internal structure.

The exact number of signal groups depends on factors such as sphere diameter, total resolution, receiving-card capacity, controller loading, module arrangement, and installation structure.

There is no single redundancy layout that is correct for every LED sphere.

Signal Redundancy Is More Than an Extra Cable

One common misunderstanding is that redundancy simply means connecting two network cables.

In reality, redundancy can exist at different levels of an LED display system.

A project may consider backup arrangements for the signal cable, Ethernet output, sending device, video processor, or other critical parts of the control chain.

This distinction matters.

For example, two signal cables may provide protection against one cable failure, but they cannot automatically solve a problem caused by a failed device upstream unless that part of the system also has an appropriate backup design.

When reliability is important, engineers should look for possible single points of failure across the complete signal chain.

The goal is not to add as many backup devices as possible. The goal is to decide which failures would seriously affect the display and design the system accordingly.

Does Every LED Sphere Need Signal Redundancy?

Not necessarily.

A small indoor sphere used as a decorative display in a retail store may not require the same level of redundancy as a large suspended sphere used for a major event.

Redundancy becomes more valuable when the screen is difficult to access, must operate for long periods, or cannot easily be shut down for troubleshooting.

It may be worth considering for:

• large exhibition LED spheres
• suspended spherical LED displays
• stage and live-event installations
• shopping mall atrium displays
• museums and science centers
• outdoor landmark spheres
• other important public installations

For these projects, the cost of additional signal protection can be small compared with the disruption caused by a visible display failure.

Plan Redundancy Before Production

Signal redundancy works best when it is included during system design.

Before production, the manufacturer and system integrator should confirm the sphere diameter, pixel pitch, total resolution, controller model, receiving-card layout, signal-port loading, cable routes, and maintenance access.

This information helps determine how signal groups should be arranged and where backup paths may be useful.

It is also important to test the system before shipment.

A practical redundancy test can include disconnecting the intended primary signal connection and checking whether the designed backup path operates as expected.

This type of testing is more useful than simply confirming that the screen works under normal conditions.

TOOSEN Spherical LED Display Solutions

TOOSEN manufactures spherical LED displays for indoor and outdoor applications, with different diameters and pixel pitches available for project requirements.

Unlike a standard flat display, an LED sphere requires the module structure, control system, signal routing, installation method, and content format to work together.

For larger or more demanding projects, signal layout can be considered during the design stage according to the sphere size, resolution, installation environment, and control requirements.

TOOSEN also provides special-shaped LED display solutions for projects that require customized structures beyond conventional rectangular LED screens.

Conclusion

Signal redundancy is not simply about adding another cable to an LED sphere screen.

Its real purpose is to reduce dependence on a single signal path.

For a large spherical LED display, this requires understanding how the receiving cards are distributed, how data travels through different sections of the sphere, and what happens when part of the signal chain is interrupted.

A good redundancy design starts before installation.

By planning signal zones, primary and backup paths, controller loading, cable routing, and maintenance access together, it is possible to build a spherical LED display system that is easier to manage and better prepared for signal-related failures.
