How Is a Heart-Shaped LED Screen Designed and Manufactured?

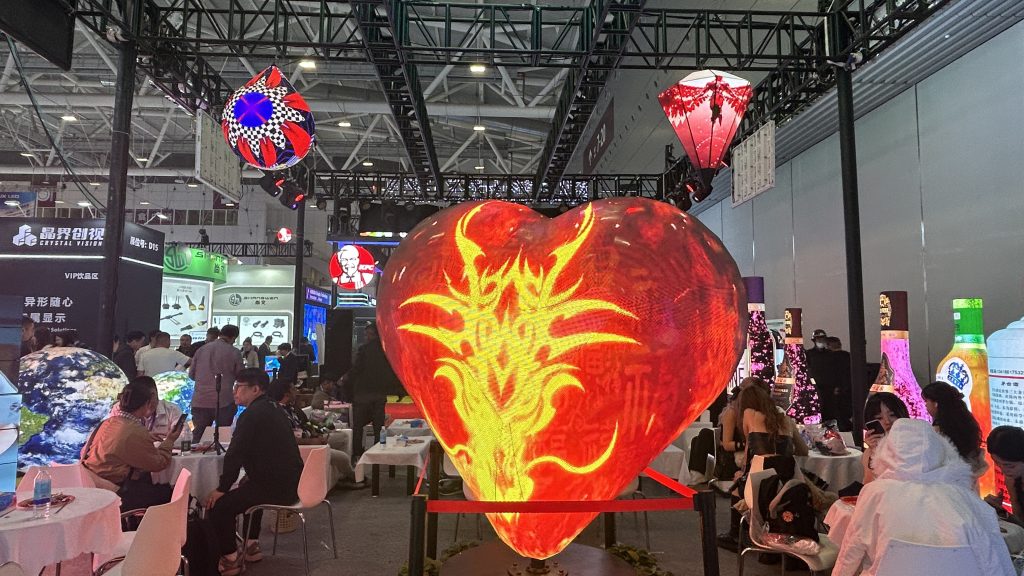

A heart-shaped LED screen is a creative LED display often used to create emotional and visually striking environments. Designers frequently install these displays in shopping malls, wedding stages, theme parks, retail stores, exhibitions, and brand promotion events. Because the heart shape naturally symbolizes love and celebration, it easily attracts attention and encourages audience interaction, especially in social media photo spots.

However, building a heart-shaped LED screen involves more than simply cutting a display into a new shape. Engineers must carefully plan the design, structure, electronics, and control system to ensure stable performance and seamless visuals.

1. Define the Design Requirements and Shape

The process begins by defining the technical specifications and visual design.

First, determine the key parameters, including:

• Screen size
• Pixel pitch (such as P2, P3, or P4)
• Brightness level
• Installation environment (indoor or outdoor)
• Viewing distance

Next, designers create a precise heart-shaped vector outline using professional drawing software. This outline determines the curvature, proportions, and segmentation plan for LED module installation.

Meanwhile, engineers perform structural and thermal simulations. These simulations verify the strength of the frame and ensure the display can dissipate heat effectively during long-term operation.

2. Select LED Modules and Structural Components

Once the design is finalized, the next step focuses on selecting the appropriate LED modules and structural framework.

LED Module Selection

The module type mainly depends on the screen size.

• Small heart-shaped displays usually use flexible LED modules with FPC (flexible printed circuit) boards. These modules can bend easily and fit along curved edges.
• Large heart-shaped displays typically use custom-shaped LED modules, such as fan-shaped, triangular, or trapezoidal modules. In some cases, manufacturers cut standard modules to match the outline.

In both cases, engineers carefully arrange the LED pixels along the heart-shaped contour to ensure smooth and continuous image display.

Structural Frame

The internal structure supports the modules and maintains the shape of the display.

Manufacturers usually build the frame using:

• Aluminum profiles
• Sheet metal structures
• Carbon fiber materials

To ensure accurate assembly, the manufacturing tolerance typically remains within ±0.5 mm.

For outdoor installations, the structure must also include:

• Waterproof protection (usually IP65 or IP66)
• Internal cable routing channels
• Ventilation and heat dissipation pathways

These features help the screen operate reliably in outdoor environments.

3. Design the Power and Control System

After completing the mechanical structure, engineers move on to designing the electrical system and control architecture.

Power Distribution

Because the heart-shaped display contains multiple curved sections, engineers often divide the screen into several independent power zones. Each zone receives separate power supply lines to prevent voltage drops and maintain uniform brightness.

Signal Transmission

The display system uses LED sending cards and receiving cards that support irregular resolutions and non-rectangular pixel mapping. This capability allows the system to adapt video content to the heart-shaped layout.

Display Control

The control system supports multiple visual functions, including:

• Video playback
• Animated graphics
• Dynamic lighting effects
• Interactive visual content

All visual content automatically adjusts to the heart-shaped display area without distortion.

4. Debugging and Quality Testing

Before delivery, technicians perform comprehensive testing and calibration to ensure stable performance.

Lighting and Calibration

First, the screen undergoes a full lighting test to identify issues such as:

• Short circuits
• Poor solder joints
• Dead pixels

Next, technicians perform brightness and color calibration using professional instruments. This process adjusts each pixel individually to eliminate color or brightness differences across the heart-shaped display.

Finally, the control system loads the custom heart-shaped pixel mapping, ensuring images appear correctly without stretching or distortion.

Reliability Testing

After calibration, the display undergoes several reliability tests:

• Aging test: continuous operation for over 72 hours
• Environmental tests: high/low temperature, humidity, and vibration (for outdoor models)
• Final inspection: brightness, contrast ratio, color gamut, refresh rate, and waterproof rating

Only after passing these tests does the heart-shaped LED screen move to final delivery and installation.

In short, designing and manufacturing a heart-shaped LED display requires precise engineering, customized modules, and advanced control technology. When executed properly, this creative display can transform ordinary spaces into engaging visual experiences that attract attention and strengthen brand engagement.
