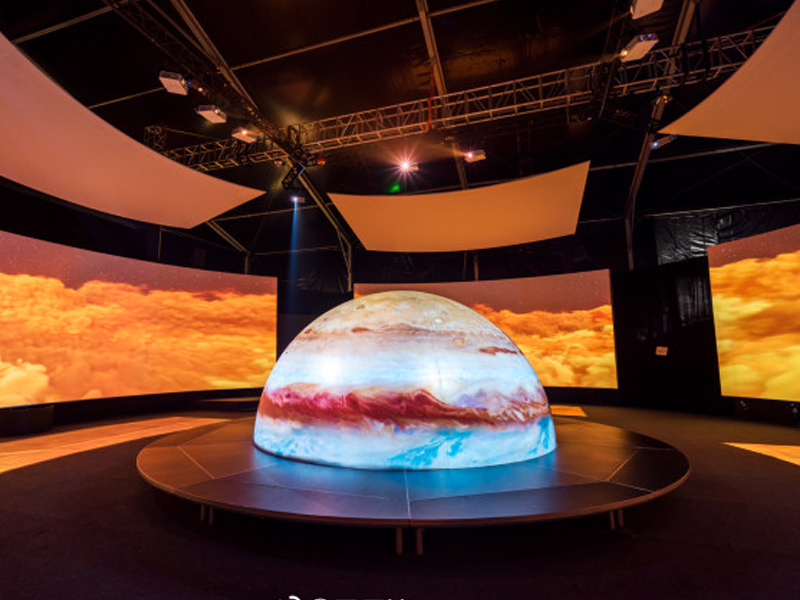

How Does a Spherical LED Display Work? A Complete Guide

Spherical LED displays immediately capture attention. Unlike traditional flat screens, they wrap visuals around a three-dimensional surface, creating a fully immersive viewing experience. However, this unique form factor also introduces a different operating logic. In this guide, we break down how a spherical LED screen works—from hardware structure to content processing—using clear, native English expression and practical insights.

What Makes a Spherical LED Screen Different?

At its core, a spherical LED display still relies on standard LED technology. However, instead of arranging modules in a flat grid, engineers assemble them into a curved, three-dimensional structure. As a result, both the hardware design and the signal processing workflow must adapt to the sphere’s geometry.

1. Customized LED Modules: The Building Blocks

First, manufacturers design specialized LED modules to form the spherical surface. Unlike rectangular modules used in flat LED screens, these modules often take shapes such as hexagons, pentagons, or triangles—similar to the panels of a soccer ball.

More importantly, each module includes a slight curvature. This design allows all modules to fit together seamlessly, minimizing gaps and ensuring a smooth, continuous surface. Without this curvature, the sphere would appear faceted rather than fluid.

2. Structural Frame: Ensuring Stability and Precision

Next, a high-strength supporting framework holds the entire structure together. Typically made from aluminum alloy, this frame provides both durability and precise alignment.

For example, advanced manufacturing techniques divide the sphere into equal segments—often described as a “watermelon slice” structure. Engineers then laser-cut, roll, and rivet these segments into shape. This process delivers three key advantages:

• High cutting precision
• Accurate curvature control
• Consistent structural integrity

As a result, the final sphere maintains a smooth surface and resists deformation over time, whether installed as a hanging feature or a ground-based display.

3. Control System: The Brain of the Display

Meanwhile, the control system manages all signal processing and distribution. It typically includes:

• A central controller
• Sending cards
• Receiving cards

Together, these components receive video input from external sources such as media players or computers. They then process and distribute the signal across every LED module on the sphere.

4. Signal Input and Processing

To begin the workflow, the system receives standard video signals—such as HDMI or DVI. However, these signals are originally designed for flat displays. Therefore, they cannot directly map onto a spherical surface without distortion.

This limitation leads to the most critical step in the process.

5. Spherical Mapping and Image Correction

At this stage, specialized video processors and software take over. They apply advanced mapping algorithms to transform a 2D image into a format suitable for a 3D sphere.

In practice, the system “wraps” the flat content around the spherical coordinate system. It calculates the exact position of every pixel on the curved surface in real time. Consequently, the final image appears natural and distortion-free, even when viewed from multiple angles.

Without this step, visuals would stretch, compress, or warp significantly—especially near the edges.

6. Pixel-Level Control and Display Output

Finally, the processed signal reaches each LED pixel on the sphere. The system precisely controls:

• Brightness
• Color (via RGB mixing)
• Refresh rate

By synchronizing millions of individual LEDs, the display produces smooth, vibrant, and dynamic visuals across the entire spherical surface.

Why Content Design Matters

Even with advanced hardware and mapping technology, content still plays a crucial role. Standard flat videos rarely perform well on spherical displays without optimization.

Therefore, designers often create custom content specifically for spherical formats. They use techniques such as:

• Fisheye projection
• 3D animation workflows
• Real-time rendering adjustments

These methods ensure that visuals fully leverage the immersive potential of the sphere rather than fighting against its geometry.

Final Thoughts

Spherical LED displays combine mechanical engineering, electronic control systems, and advanced visual processing into one integrated solution. From custom-shaped modules to real-time spherical mapping, every step works together to deliver a seamless 360-degree viewing experience.

As demand for immersive and eye-catching installations grows, spherical LED screens continue to stand out in retail spaces, exhibitions, and entertainment venues. When designed and executed correctly, they do more than display content—they transform how audiences experience it.
