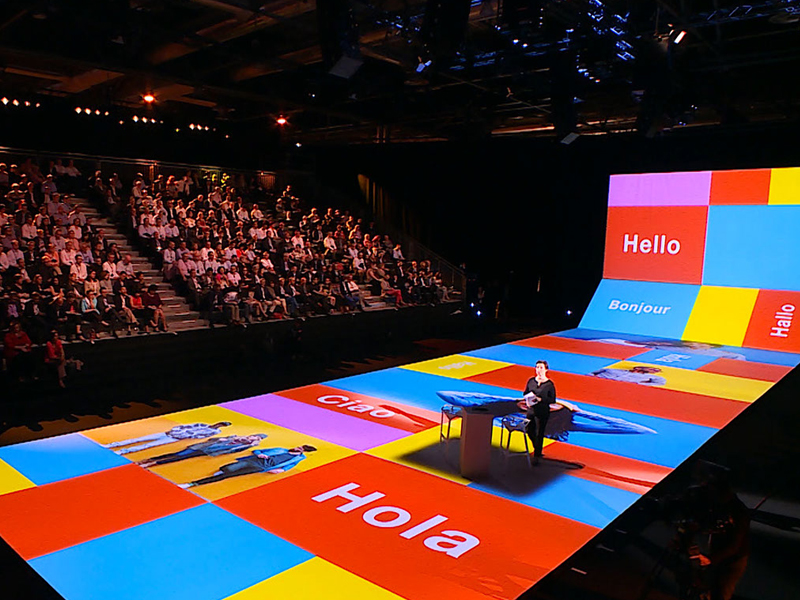

How Does a Sealed LED Floor Screen Dissipate Heat Effectively?

Since LED floor displays must withstand heavy foot traffic, equipment loads, and liquid spills, they are engineered with a fully sealed structure. While this airtight design ensures durability and an IP65 or IP66 waterproof rating, it raises a critical technical question: How does a sealed LED floor screen dissipate heat effectively?

To maintain peak performance and prevent hardware degradation, manufacturers employ a combination of thermal conduction, specialized materials, and clever structural engineering.

1. High-Thermal Conductivity Materials

Because a sealed unit lacks internal airflow, engineers rely on physical conduction to move heat away from sensitive components.

• Die-Cast Aluminum Chassis: High-end floor screens replace standard plastic shells with die-cast aluminum. Aluminum’s superior thermal conductivity allows it to act as a massive heat sink, rapidly absorbing heat from the internal modules and transferring it to the outer surface.
• Thermal Interface Materials (TIM): Designers apply thermal grease or high-performance silicone pads between the power supply, driver ICs, and the metal casing. These materials eliminate microscopic air gaps, ensuring a “seamless” path for heat to escape the internal circuitry.

2. Structural Heat Dissipation Fins

While the top surface remains flat for safety, the underside of the chassis is far from basic.

• Integrated Cooling Fins: The bottom of the aluminum cabinet often features a series of extruded cooling fins. These ridges significantly increase the surface area exposed to the air, allowing the metal to shed heat much faster than a flat surface would.
• The “Chimney Effect” via Elevated Installation: Most LED floor displays sit on adjustable pedestals. This creates a hollow plenum or air gap between the concrete floor and the screen. Even though the individual cabinet is sealed, the ambient air moving through this sub-floor cavity constantly whisks away the heat radiating from the cooling fins.

3. Energy-Efficient Circuit Design

The most effective way to manage heat is to prevent it at the source. Modern displays utilize “cool” technology to minimize the thermal load.

• Common Cathode Technology: By utilizing a common cathode drive architecture, the system provides precise voltage to the Red, Green, and Blue chips separately. This reduces unnecessary power waste and lowers the overall heat output by 20% to 30% compared to traditional common anode screens.
• High-Efficiency Power Supplies: By selecting industrial-grade power units with high conversion efficiency, manufacturers ensure that more electricity turns into light rather than wasted thermal energy.

4. Forced Air Cooling for Extreme Environments

In scenarios involving high-brightness outdoor displays or massive stage installations, passive cooling might need a boost.

• External Ventilation Systems: For large-scale setups, engineers often install industrial fans within the supporting steel framework. This forces active airflow through the installation cavity, preventing heat build-up during prolonged use.
• Smart Temperature Monitoring: Integrated sensors constantly track internal thermals. If the temperature hits a specific threshold, the system can automatically adjust brightness levels or trigger external cooling units to protect the hardware.

Conclusion

Thermal management in sealed LED floor displays follows a logical three-step process: conduct the heat away from the chips using aluminum, spread it across external fins, and remove it via the air gap beneath the screen. This robust engineering ensures that your visual floor stays cool to the touch and operates reliably for years, regardless of the environmental pressure.
