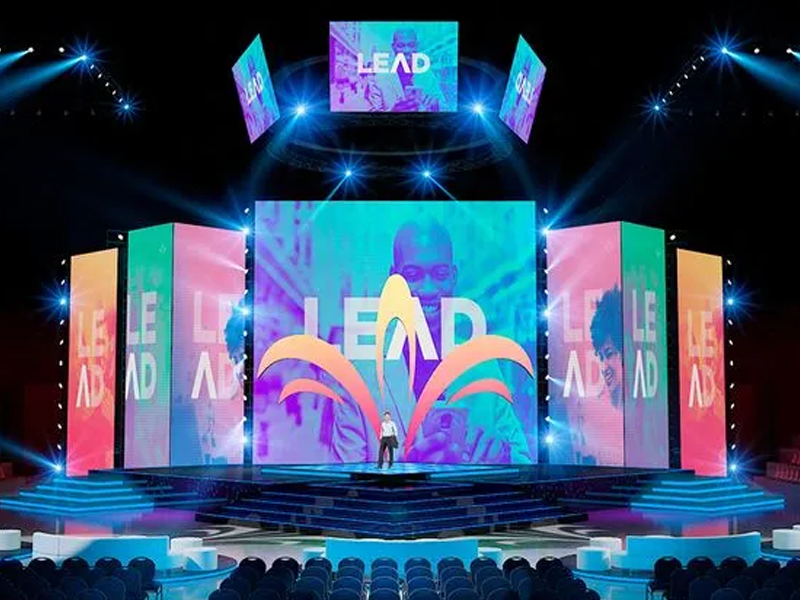

How Do Large LED Video Wall Work?

Large LED displays look impressive. You see bright colors, smooth video, and massive screens in stadiums, billboards, and events. But behind that clean image sits a surprisingly structured system—not millions of individually controlled lights.

What Is a Large LED Screen, Really?

At its core, a large LED screen is not one single display. Instead, it’s a collection of smaller sections working together.

Each screen consists of:

• Thousands (or millions) of LEDs
• Small modules that group those LEDs
• Driver chips that control them
• A central system that sends video data

So rather than controlling every LED one by one, the system manages them in organized groups.

Step 1: The Screen Is Built in Modules

First, manufacturers divide the display into smaller blocks called modules.

Each module:

• Contains a fixed number of pixels (for example, 64×64)
• Has its own circuitry and driver chips
• Connects to other modules to form a larger screen

Because of this modular design:

• You can scale screens to almost any size
• Maintenance becomes easier
• Data handling stays manageable

In short, the system stays efficient by breaking a big problem into smaller ones.

Step 2: Driver Chips Handle the LEDs

Next, driver ICs (integrated circuits) take control.

Instead of assigning one controller per LED, each driver chip:

• Controls multiple LEDs (often 16–24 channels or more)
• Regulates brightness using PWM (pulse-width modulation)
• Ensures consistent current for uniform color

This approach reduces complexity while maintaining precise control.

Step 3: Data Flows in a Chain

Now let’s talk about how data moves.

Large LED displays often use a daisy-chain (serial) data system:

• The controller sends a stream of data
• The first driver chip reads its portion
• Then it passes the rest to the next chip
• This continues across the entire module

Because of this:

• Wiring stays simple
• Synchronization improves
• The system scales easily

Think of it like a relay race—each chip takes what it needs and passes the rest forward.

Step 4: The Screen Uses Scanning (Not All LEDs at Once)

Here’s something that surprises most people:

👉 The screen does not light up all LEDs at the same time.

Instead, it uses row-by-row scanning:

• One row turns on briefly
• Then the next row
• Then the next

This happens extremely fast—so fast that your eyes see a continuous image.

This method:

• Reduces power consumption
• Cuts down required wiring
• Keeps hardware costs lower

However, it also means brightness depends on how long each row stays on (duty cycle).

Step 5: A Controller Processes the Video Signal

Before anything reaches the LEDs, the system processes the input signal.

Here’s the typical flow:

1. The display receives a video signal (HDMI, DVI, etc.)
2. The controller scales it to match screen resolution
3. It splits the image into sections for each module
4. Data gets sent to receiving cards or control boards
5. Driver chips convert that data into light output

Because of this pipeline, large LED displays can handle:

• Live video
• Animations
• High refresh rates

Step 6: Bandwidth and Refresh Rate Matter

As screens get bigger, data requirements grow fast.

A large LED display must handle:

• High pixel counts
• Fast refresh rates (to avoid flicker)
• High grayscale levels (for smooth gradients)

So designers must balance:

• Data bandwidth
• Processing power
• Signal integrity

If any of these fall short, you’ll see flickering, tearing, or lag.

Step 7: Power and Heat Are Major Challenges

Interestingly, control is only part of the challenge.

Power management often becomes the bigger issue:

• Large screens consume significant electricity
• Voltage drops can affect brightness consistency
• Heat buildup can damage components

That’s why real-world systems include:

• Distributed power supplies
• Cooling systems (fans or ventilation)
• Careful electrical design

Conclusion

A large LED display works because of smart system design, not brute force.

Instead of controlling millions of LEDs individually, it relies on:

• Modular construction
• Driver chips
• Serial data flow
• High-speed scanning
• Centralized video processing

Put simply:

A giant LED screen is not one device—it’s a coordinated network of smaller systems working together in real time.

If you’re planning to work with LED displays—whether for events, advertising, or installations—understanding this structure will help you make better decisions about resolution, cost, and performance.
