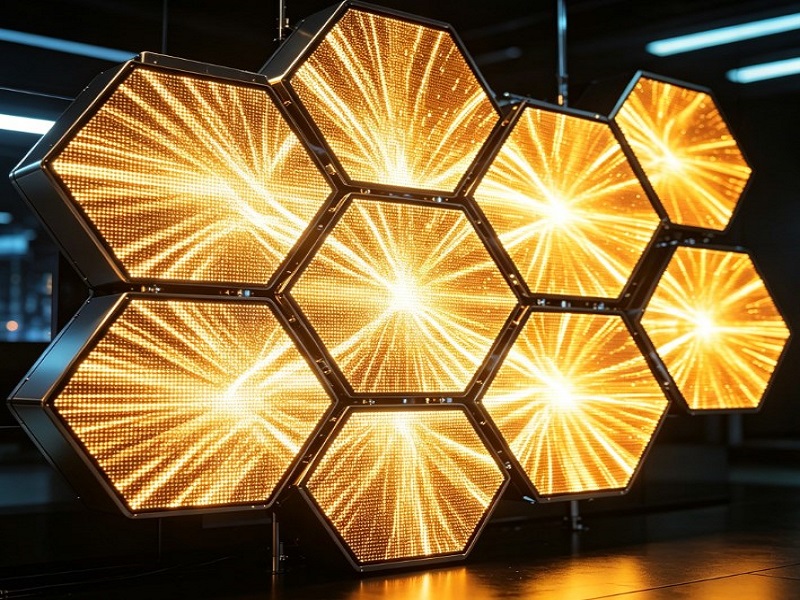

Custom Modular Honeycomb LED Display Solution

In a crowded exhibition hall, capturing attendee attention requires a departure from standard rectangles. A honeycomb-shaped LED display offers a visually stunning, futuristic centerpiece. Because trade show environments demand tight turnaround times and flawless execution, this solution replaces permanent installation methods with a modular, rapid-deployment system engineered for frequent transport and high reliability.

1. Hardware Selection & Enclosure Engineering

To ensure seamless alignment and fast setup, we move away from traditional steel framing and introduce custom-engineered components:

• Die-Cast Aluminum Enclosures: We house each hexagonal module in a precision-machined aluminum cabinet. This eliminates the need for on-site welding, complies with strict venue weight limits, and provides the structural rigidity needed for perfect geometric alignment.
• Quick-Lock Mechanism: Technicians can connect cabinets using integrated, heavy-duty industrial quick-locks. This allows a two-person crew to securely lock modules together with a simple twist, drastically reducing labor hours.
• All-Magnetic Front Maintenance: We employ top-tier magnetic LED tiles. If a module suffers damage during the show, a technician can use a magnetic tool to snap the compromised tile out from the front and replace it within seconds, without disturbing the rest of the wall.
• Integrated Flight Cases: To protect the vulnerable edges of the hexagonal tiles during transit, we pack the modules into custom flight cases equipped with CNC-cut EVA foam slots.

2. Power and Signal Topology

Exhibition floors are notorious for unexpected power surges and cable disconnections. To mitigate these risks, we build redundancy into the core infrastructure:

• One-Cable Dual Loop (Aero-Plugs): We utilize integrated, heavy-duty aerospace connectors that carry both power and data in a single cable. These plugs support hot-swapping, allowing immediate replacement of a single unit without interrupting the surrounding display.
• Coordinate Offset Mapping: Because hexagonal pixels do not align to a standard rectangular grid, our engineers pre-configure the receiving cards using specialized coordinate mapping. This ensures that the controller recognizes the irregular layout perfectly.
• Current Distribution: We design the power routing to distribute voltage evenly across the honeycomb clusters, keeping any potential voltage drops below $3\%$ to guarantee uniform brightness across the entire installation.

3. On-Site Installation Strategies

Depending on your booth layout and spatial design, you can deploy the honeycomb system using one of two proven structural methods:

Option A: The Integrated Backdrop (Wall-Mounted)

• How it works: If your booth features a custom timber wall or a heavy-duty aluminum truss background, we attach custom mounting brackets to the back of the LED cabinets.
• The benefit: Technicians simply “hang” the hexagonal cabinets onto the pre-built wall, creating a clean, flush look that blends seamlessly into your overall booth design.

Option B: The Standalone “Honeycomb Tree” (Focal Point)

• How it works: We anchor a heavy, counter-weighted steel base (T-shaped or H-shaped) to the floor, extending a central load-bearing pillar upward.
• The benefit: The hexagonal cabinets branch out from this central pillar like a crystal growth. This creates a floating, semi-transparent aesthetic that serves as a high-traffic island centerpiece.

4. Content Creation & Visual Optimization

Standard $16:9$ video content will stretch and distort on a hexagonal canvas. Therefore, the creative team must design content specifically for this unique geometry:

• 3D UV Mapping: Our content creators build a digital 3D replica of your exact honeycomb layout. By applying precise UV maps, we ensure that motion graphics flow smoothly across the hexagonal joints without any jarring breaks.
• Edge Feathering & Alpha Channels: We apply an Alpha channel blur to the outer edges of the content. This softens the transition between the active screen and the booth background, making the display look like an organic, integrated feature rather than a harsh electronic screen.
• Visual Highlights: We recommend using geometric animations, flowing data-lines, or a “shattering honeycomb” effect where individual tiles appear to break away to reveal your core product branding.
