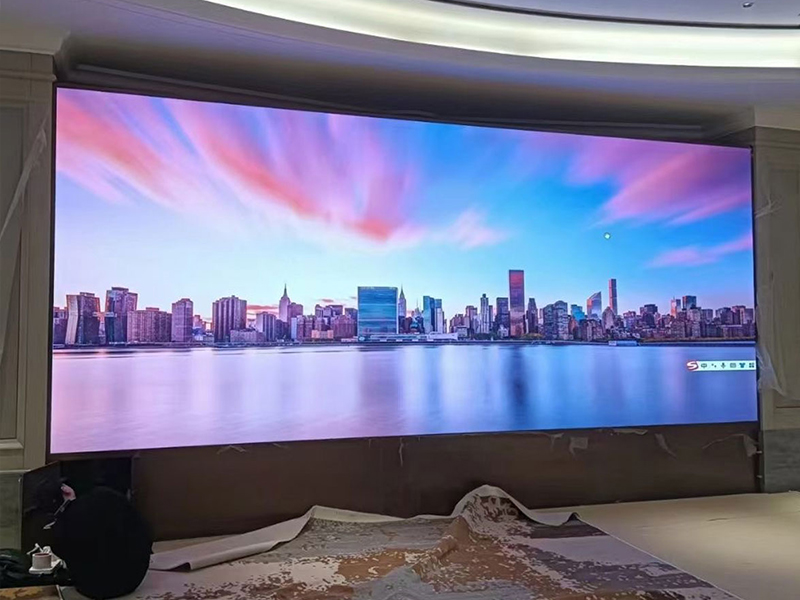

The 3 Core Technologies Behind Fine-Pitch LED Video Wall Processors

When working with fine-pitch LED displays (especially below P2.0), the processor becomes the “brain” of the system. Its capabilities directly determine whether your video wall looks seamless, smooth, sharp, and stable. Three core technologies make the difference.

1. Multi-Output Signal Synchronization

(Prevents tearing, misalignment, and motion artifacts)

First, the processor must keep all output channels perfectly synchronized. It needs to align frames, scan lines, and pixels across multiple DVI/HDMI outputs.

Why it matters

If synchronization fails, you will immediately notice:

• Screen tearing during fast motion
• Visible layer shifts or “break lines”
• Motion trails or ghosting
• Misaligned seams between cabinets

These issues become especially obvious on fine-pitch displays viewed at close range.

How it works

High-end processors achieve synchronization through:

• A unified clock source (e.g., PTP or hardware phase-locked loops)
• Frame buffer alignment with low-latency distribution
• Near-zero delay differences across outputs (typically <1 microsecond)

Bottom line

Even micro-level timing errors can degrade the viewing experience. Tight synchronization ensures fluid, artifact-free visuals.

2. Ultra-HD Image Processing Algorithms

(Preserve clarity, eliminate artifacts, optimize color)

Next, advanced image processing defines how clean and natural the content appears. The processor handles scaling, cropping, layering, edge blending, and color correction in real time.

Key capabilities

• High-precision scaling
  Uses multi-phase interpolation and anti-aliasing to keep text sharp and edges clean after resizing
• Low-latency processing
  FPGA or ASIC architectures deliver real-time performance, typically under 40 ms
• Pixel-level calibration & edge blending
  Smooth transitions in brightness and color across seams eliminate visible gaps
• Color gamut, contrast, and grayscale optimization
  Fine-tuned for the high contrast and density of fine-pitch LEDs

Why it matters

At pixel pitches below P2.0, the human eye easily detects even minor imperfections. Without strong algorithms, you will see blur, jagged edges, or inconsistent colors.

3. Non-Standard / Custom Resolution Output

(Matches LED physical layouts perfectly)

Finally, the processor must adapt to the unique structure of LED displays. Unlike LCD panels, LED walls rarely follow standard resolutions like 1080p or 4K.

The challenge

LED screens are built from standard cabinets (e.g., 320×160 or 256×128 pixels). When combined, they often produce non-standard resolutions such as:

• 1920 × 1152
• 3840 × 2160 ± custom offsets
• Irregular dimensions for creative shapes

Core capabilities

• Arbitrary resolution output (any width and height)
• Multi-window layout, roaming, and layering
• Pixel-level cropping and mapping
• Support for curved, cylindrical, or irregular LED designs

Why it matters

Custom resolution support enables:

• True pixel-to-pixel mapping (no scaling distortion)
• Reduced need for additional controllers
• Perfect alignment with complex or creative display shapes

Final Takeaway

In essence:

• Synchronization ensures smooth motion
• Image processing ensures visual quality
• Custom resolution ensures perfect physical alignment

Miss any one of these, and the display will fall short. Master all three, and you unlock the full potential of fine-pitch LED video walls.
