Common Flexible LED Screen Problems and How to Fix Them

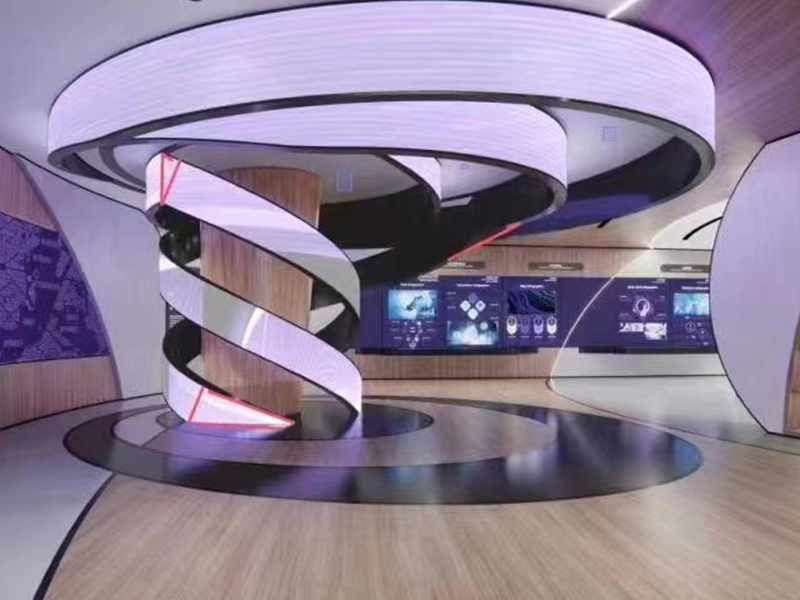

In recent years, flexible LED screens have rapidly gained market share and become a go-to solution for creative displays. You’ll see them everywhere—on curved building facades, immersive stages, transportation hubs, and retail environments.

However, like any advanced display system, flexible LED screens can run into technical issues during operation. If you don’t address these problems quickly, they can lead to downtime, poor performance, and even hardware damage.

This guide breaks down the most common flexible LED screen problems and shows you exactly how to troubleshoot them efficiently.

1. “Please Connect LED Display Controller” Error

What’s happening?

You install the LED control software and run it successfully at first. But after about 20 minutes, a message appears:
“Please connect LED display controller.”

Why it happens

This usually occurs because the software is running in trial mode and cannot detect the control hardware.

How to fix it

Follow these steps to establish a proper connection:

• Connect one end of the LED controller hardware to your computer
• Connect the other end to the HUB distribution board
• Link the HUB board to each LED module using ribbon cables

Then:

1. Open the software
2. Go to Settings → Screen Parameters
3. Configure the correct display parameters
4. Restart the software

Once done, you should see a “Connected Successfully” message. At this point, the system will run without time limits.

2. Bright Lines or “Glitch Screen” on Startup

What’s happening?

When you power on the system, the screen briefly shows:

• Bright lines
• Random noise patterns (“flower screen”)

Why it happens

This is normal behavior during system initialization. The controller runs a quick self-check before entering stable operation.

How to fix it

No action needed. Just make sure:

• The controller receives a stable +5V power supply
• You do NOT connect it directly to 220V AC

The screen will stabilize automatically within a few seconds.

3. Auto vs. Manual Brightness Adjustment

What’s the difference?

Auto Brightness

• The system adjusts brightness based on time schedules or ambient conditions
• Ideal for outdoor or day/night environments
• Reduces power consumption and glare

Manual Brightness

• You set a fixed brightness level via the control system
• Useful for controlled indoor environments like studios or exhibitions

Key insight

Brightness adjustment refers to the range between minimum and maximum luminance, not sensor-based light detection unless configured.

4. Controller Works Fine, But No Display Output

What’s happening?

Everything seems properly connected, but the screen shows nothing.

Likely causes and fixes

Check the following step by step:

• Power supply
  • Ensure the LED screen is powered on
• HUB board connections
  • Verify that ribbon cables are not reversed
• Content issues
  • Confirm that you actually sent content to the screen
  • Make sure the program is not empty

Pro tip

This issue often comes down to signal flow errors, not hardware failure. Always validate the content pipeline first.

5. Entire Module Not Lighting or Appears Dim

What’s happening?

A full LED module:

• Does not light up at all
• Appears unusually dim

How to diagnose and fix

Step 1: Visual inspection

• Check power cables
• Inspect 26-pin ribbon cables
• Confirm indicator lights on the power supply

Step 2: Measure voltage

Use a multimeter to check:

• Input voltage to the module
• Output voltage from the power supply

Step 3: Identify the issue

• No voltage output → Replace power supply
• Low voltage → Adjust trim potentiometer

The adjustment knob is typically located near the indicator light on the power module.

Conclusion: Reduce Downtime with Structured Troubleshooting

Flexible LED screens offer unmatched design freedom, but they also require systematic troubleshooting when issues arise.

To minimize downtime:

• Always verify power → signal → content flow in that order
• Use proper measurement tools like a multimeter
• Avoid guesswork—diagnose step by step
• Keep spare power modules and cables on hand

By following these best practices, you can quickly isolate faults, restore performance, and keep your LED display running at full efficiency.
