Can an LED Cabinet Fail? Common Issues and Expert Troubleshooting Tips

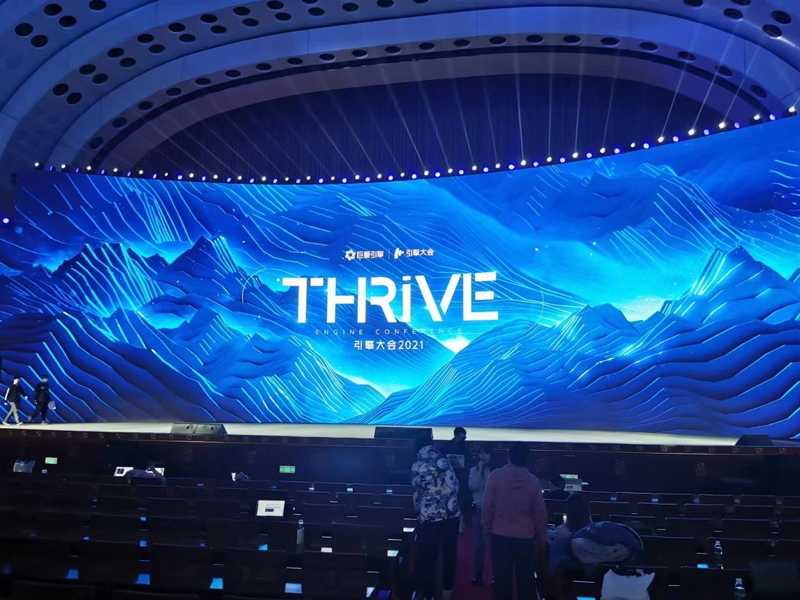

When a giant LED video wall suddenly malfunctions, most people immediately blame the pixels on the screen.

An LED cabinet is not just a metal frame; it serves as the power and data engine room for your entire display system. Packed with sensitive electronic components, these enclosures can—and do—fail. When your screen experiences a sudden blackout, flickering, or distorted colors, a cabinet component is likely acting up.

Understanding why these hardware hubs fail will help you diagnose problems quickly and keep your display running smoothly. Here are the five most common hardware failures inside an LED cabinet and how to fix them.

1. Power Supply Unit Burnout

The power supply units are the hardest-working components inside the cabinet. They take high-voltage AC power from the wall and convert it into the low-voltage DC power (usually 4.2V or 5V) that LED modules require. Because they run hot and bear heavy electrical loads, they represent the most common point of failure.

• The Symptom: An entire cabinet section goes completely black, while the surrounding cabinets continue to display images perfectly.
• The Root Cause: Power surges, unstable voltage, or poor ventilation can easily overheat and fry the power supply’s internal capacitors.
• The Solution: Use a digital multimeter to test the voltage at the PSU output terminals. If you detect zero voltage, simply swap out the dead unit with a matching power supply model.

2. Receiving Card Failures

Think of the receiving card as the brain of the cabinet. It accepts video data from your master controller computer and translates that information for the individual LED pixel modules.

• The Symptom: The cabinet section displays scrambled images, massive static, frozen frames, or completely chaotic colors—even though the unit clearly has power.
• The Root Cause: Electrostatic discharge (ESD) can easily fry the receiving card’s microchips. Alternatively, the card can corrupt its own internal firmware during sudden power outages.
• The Solution: First, try reloading the cabinet’s configuration file (RCFG file) using your LED software. If the hardware remains unresponsive, replace the receiving card and flash the new card with the correct parameters.

3. Loose or Damaged Internal Ribbon Cables

Dozens of flat ribbon cables connect the receiving card to the LED modules, while heavy-gauge wires distribute power throughout the enclosure.

• The Symptom: Specific rows or individual modules start flickering, drop colors (such as losing all red or green hues), or display bright horizontal or vertical lines.
• The Root Cause: Constant thermal expansion and contraction can loosen the plastic connectors over time. Furthermore, technicians can easily pinch or snap these delicate wires during routine maintenance.
• The Solution: Reseat the loose connectors firmly into their slots, or replace the damaged ribbon cable entirely. Replacing a cheap cable solves roughly 90% of local flickering issues.

4. Cooling Fan Malfunctions

High-power outdoor displays and large indoor video walls generate massive amounts of heat. To counter this, manufacturers install internal cooling fans to keep air moving through the cabinets.

• The Symptom: The cabinet works perfectly for 20 to 30 minutes, but then suddenly goes black. After the screen cools down, it inexplicably turns back on.
• The Root Cause: Dust and grime can seize the fan blades or burn out the fan motor. Deprived of airflow, the cabinet triggers its internal thermal protection loop, shutting down the power supply to prevent a fire.
• The Solution: Clean the dust buildup out of your cabinets regularly and immediately replace any dead cooling fans to maintain proper airflow.

5. Faulty Aviation Plugs and Signal Cables

Cabinets connect to one another in a daisy chain using external, heavy-duty aviation plugs for power and Ethernet cables for data.

• The Symptom: A single cabinet goes black, and every single cabinet after it in that row or column also loses power or signal.
• The Root Cause: Technicians might fail to twist the aviation plugs tightly during installation. Over time, moisture can oxidize the pins, or physical vibrations can loosen the network cable connector.
• The Solution: Locate the first dead cabinet in the chain. Inspect the incoming power and data cables from the previous working cabinet, clean any oxidized pins, and lock the connections back into place.

The Golden Rule of LED Ownership: Maintain a Spare Parts Inventory

Because electronic failures are a matter of “when” rather than “if,” you must protect your investment from day one. When buying an LED video wall, always purchase a 2% to 5% spare parts buffer directly from the factory batch.

When a cabinet component inevitably fails, do not waste time soldering chips on-site. Instead, practice modular replacement. Swap out the faulty power supply, receiving card, or module in minutes to get your screen back online, and send the broken component back to the factory for repair. This proactive approach minimizes system downtime and protects your business from extended outages.
