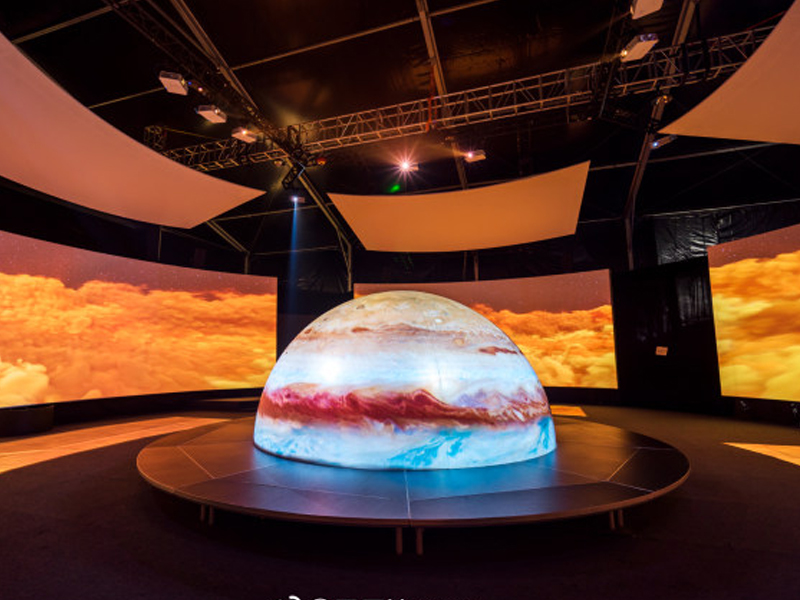

Backup Modes for Irregular LED Screens

Irregular LED displays usually require far more advanced backup systems than conventional flat LED screens.

Because these creative LED structures feature complex shapes, dense internal layouts, and difficult maintenance access, even a small hardware failure can seriously affect the entire visual experience.

Therefore, backup systems play a critical role in ensuring continuous operation and uninterrupted display performance.

The core purpose of a backup mode is simple: when one component fails, the system automatically switches to a backup path or backup device so the screen can continue operating without visible interruption.

1. Signal Loop Backup

Signal loop backup, also called loop redundancy, is currently the most common backup solution for irregular LED displays.

How It Works

In this design, the signal path forms a closed loop:

Sending Card → Receiving Cards → LED Modules → Back to the Sending Card

If one signal cable breaks or one section fails, the system automatically reroutes the signal from the opposite direction.

Why It Matters for Irregular LED Screens

Irregular LED displays usually contain complicated cable routing because their module layouts do not follow standard rectangular structures.

As a result, a single cable failure could otherwise cause a large section of the screen to go black.

Signal loop backup prevents this problem by providing an alternate signal path automatically.

Main Advantages

• Automatic fault bypass
• No visible interruption during switching
• Improved reliability for complex structures
• Ideal for hard-to-maintain installations

Typical Applications

This solution has become the standard configuration for:

• Spherical LED screens
• Dome displays
• Ceiling LED canopies
• Immersive LED rooms
• Large curved LED walls

Especially in installations with minimal maintenance space, loop backup becomes extremely important.

2. Dual Receiving Card Backup

Dual receiving card backup adds another layer of protection to critical display areas.

How It Works

Each display section uses:

• One primary receiving card
• One backup receiving card

If the primary card fails, the backup card immediately takes over.

Switching Speed

The transition usually occurs within milliseconds, allowing viewers to experience virtually no visible interruption.

Applications in Irregular LED Screens

Large immersive LED projects often use dual-card redundancy in critical viewing zones, including:

• Giant sphere screens
• Broadcast studios
• Immersive exhibition halls
• High-end stage productions

Main Characteristics

3. Power Supply Backup

Power redundancy protects the LED display against power supply failures.

How It Works

The system uses:

• Dual power supplies
• Parallel power configurations
• UPS backup systems
• N+1 redundant power architectures

If one power supply fails, the secondary unit immediately continues providing power.

Why It Is Important for Irregular LED Screens

Irregular LED cabinets often contain:

• Compact internal spaces
• Limited airflow
• Higher operating temperatures

Because of these conditions, power supplies may experience greater thermal stress compared with conventional flat screens.

Therefore, power backup becomes especially critical.

Benefits

• Prevents partial blackouts
• Improves system stability
• Supports continuous operation
• Reduces maintenance risks

4. Pixel-Level Backup

Pixel-level redundancy represents one of the most advanced backup technologies in the LED display industry.

How It Works

During PCB design, engineers reserve:

• Backup LED chips
• Extra driver channels
• Redundant signal paths

If one LED or driver channel fails, the backup component automatically replaces it.

Technical Implementations

Manufacturers may use:

• Dual-chip LED packaging
• Redundant driver IC channels
• Automatic failover circuits

Typical Applications

Because of the extremely high cost, pixel-level backup mainly appears in:

• Television studios
• Premium stage rental systems
• Permanent artistic LED installations
• Mission-critical visual systems

Main Advantage

This solution can achieve near “zero-visible-failure” performance, even at the single-pixel level.

Special Backup Design Considerations for Irregular LED Screens

Irregular LED displays require more customized redundancy designs than standard flat screens.

Complex Signal Routing

Because module layouts are irregular, engineers must carefully design loop backup paths to avoid signal latency differences and synchronization issues.

Limited Maintenance Access

Many sphere screens and immersive installations cannot support rear maintenance access.

Therefore, backup systems must support:

• Front maintenance
• Hot-swappable components
• Fast replacement procedures

Customized Cabinet Structures

Triangle cabinets, trapezoid cabinets, and curved modules leave very limited internal space.

As a result, engineers must custom-design the physical placement of:

• Dual power supplies
• Backup receiving cards
• Redundant cables

Brightness and Color Consistency

Before switching occurs, the primary and backup systems must already share identical calibration data.

Otherwise, brightness or color shifts may appear during failover switching.

Recommended Backup Configurations

Conclusion

Signal loop backup serves as the core redundancy solution for most irregular LED displays. When combined with dual receiving card systems and power redundancy, it creates a multi-layer protection architecture that greatly improves system reliability.

For irregular LED screens, uninterrupted operation matters even more than it does for conventional flat screens. A local blackout on a sphere screen, curved wall, or immersive display can severely damage the entire visual effect.

Therefore, modern irregular LED projects increasingly rely on comprehensive backup systems to ensure stable, continuous, and seamless visual performance.
