A Practical Acceptance Checklist for Custom-Shaped LED Displays Before Client Handover

所有文章

A custom-shaped LED display can be fully powered on and still not be ready for handover.

The picture may look bright and clear from the front, but a seam may become visible from the side. A sphere may have a small closing gap. A cylinder may have a correct physical shape but the content may jump at the vertical seam. Maintenance access may also become difficult after decorative panels are installed.

For this reason, final acceptance should not simply ask, “Does the screen work?”

The better question is:

Can the completed display operate, look correct and be maintained in the same condition the client approved?

Before the client signs the final handover document, several areas should be checked.

1. Compare the Finished Shape With the Approved Drawing

Start with the approved project drawings rather than judging the display only by eye.

For a conventional LED wall, installers mainly check width, height and flatness. A custom-shaped LED display may require more measurements.

Depending on the design, check:

• Overall dimensions
• Diameter or radius
• Height
• Main angles
• Center position
• Circumference
• Symmetry
• Mounting height

For a sphere or other 360° display, special attention should be given to the final closing section. Small positioning errors between individual structural sections may accumulate around the complete shape and become a visible gap at the end.

For a curved screen, the radius should also remain continuous. A sudden change in curvature can make one section look pushed outward even when every LED module is working normally.

2. Inspect Seams From More Than One Direction

Do not accept a custom LED screen from one viewing position.

Walk around it.

A seam that is almost invisible from the main viewing area may become obvious from another angle. This is especially important for spherical LED displays, cylinders, columns, wave screens and LED sculptures.

Use several simple test images:

• Full white
• Full red, green and blue
• Medium gray
• Black background
• Grid pattern

A white image is useful for finding dark gaps and alignment problems. Gray can reveal brightness or color differences between modules. Grid patterns make geometric distortion easier to see.

For a sphere, inspect the equator, upper and lower transition areas and final closing seam.

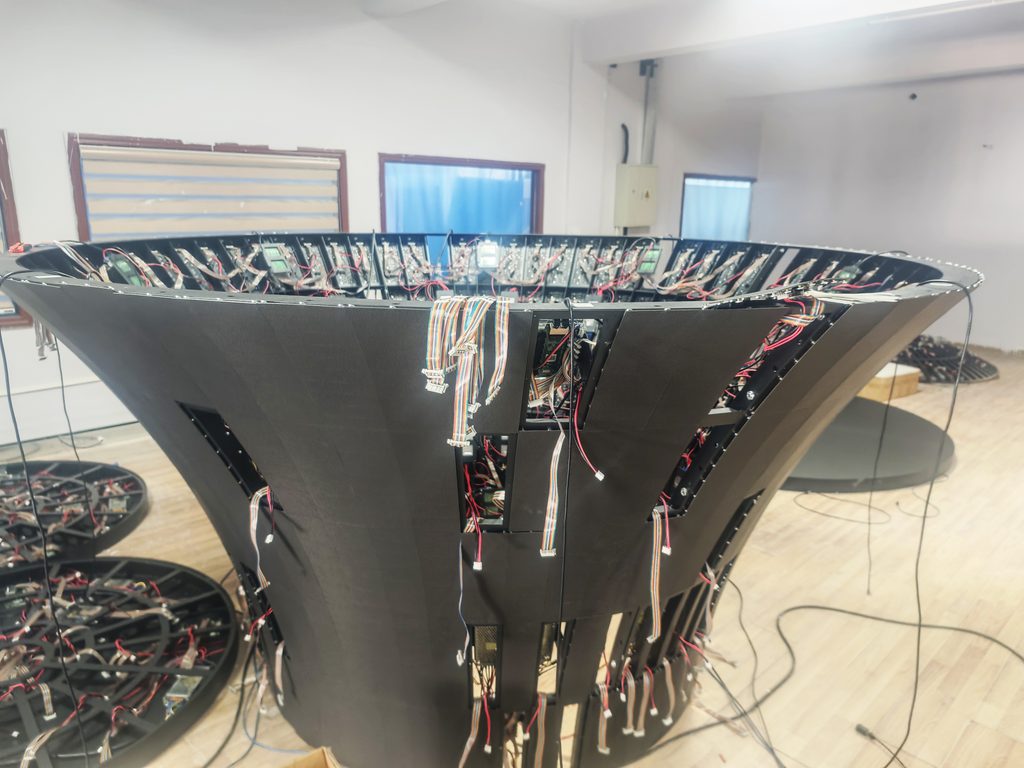

For a bottle-shaped screen, check the transition between the main body, shoulder and neck.

The acceptance method should follow the actual shape of the product.

3. Check Pixel Mapping With Diagnostic Content

A physical installation can be correct while the digital mapping is wrong.

This happens more often on a custom-shaped LED display because receiving cards and LED modules are not always arranged in simple horizontal rows.

Before playing advertising content, run a numbered grid or directional test file.

Check whether:

• Each screen section appears in the correct position
• No area is mirrored
• No receiving-card area is reversed
• Content crosses structural sections correctly
• The start and end positions of a 360° image connect correctly

For a spherical LED display, slowly move a line around the complete screen. If it suddenly jumps, disappears or changes direction, the physical cable order or software coordinates may not match.

The final receiving-card and mapping files should be saved after this test.

4. Run the Screen Before Making a Final Judgment

Do not complete acceptance immediately after a cold start.

Allow the display to operate under normal content and brightness settings. Some problems only become visible after the screen has been working for a period of time.

Check again for:

• Uneven brightness
• Color differences
• Flickering
• Signal interruption
• Abnormal module temperature
• Power instability
• Unusual fan or power-supply noise

This is particularly important when components are installed inside a closed sphere, cylinder or decorative structure where heat has fewer paths to escape.

A screen that performs correctly only during a short test is not enough.

5. Test a Real Maintenance Operation

“Front maintenance” or “rear maintenance” should not remain only a specification on paper.

During acceptance, remove at least one representative LED module.

Then check whether the technician can actually reach the:

• Module
• Power cable
• Signal cable
• Receiving card
• Power supply
• Internal connector

The module should be removable without damaging the surrounding modules or decorative structure.

This test is especially useful for custom installations built into walls, ceilings, reception desks or narrow architectural spaces.

Future maintenance becomes much easier if access problems are discovered before handover instead of several months later.

6. Test Power and Signal Recovery

Normal operation is only one part of acceptance.

The system should also recover correctly after a simple failure.

Useful tests include:

• Restarting the controller
• Restarting the display power
• Disconnecting and reconnecting the video source
• Testing backup signal paths if redundancy is installed
• Reloading the saved configuration

After restarting, the screen should return to the correct resolution, mapping and playback condition.

A system that works only while the installation engineer’s laptop is connected is not ready for the client.

7. Play the Client’s Real Content

Factory demo videos are designed to look good.

Final acceptance should include the content the client actually plans to use.

Play logos, text, advertisements, animations or live video in the expected operating format.

Then inspect the display from the main viewing positions.

A flat video may become stretched or compressed when it is mapped onto a sphere, cylinder or irregular surface. Important text can also cross a seam or disappear around a curved edge.

Content testing confirms whether the physical display and the final media workflow work together.

8. Close the Punch List Before Signing

Every remaining problem should be recorded clearly.

Instead of writing:

“Screen seam needs adjustment.”

Record:

Location: Section A6-A7
Condition: 50% white test image
Problem: Visible opening between sections
Action: Structure realigned
Retest: Pass

Photos can also be added before and after correction.

This avoids disagreements later and gives both the supplier and client a clear record of what was checked.

9. Complete the Handover Package

Before final sign-off, the client should receive the files needed to operate and maintain the system.

Depending on the project, these may include:

• Final resolution and pixel map
• Receiving-card configuration
• Controller backup
• Wiring diagram
• Installation drawings
• Spare-parts list
• Maintenance instructions
• Warranty information
• Basic operator training

The final configuration should always match the screen actually installed on site, not an earlier factory version.

Final Check Before Client Handover

A custom-shaped LED display should not be accepted simply because every LED lights up.

The final inspection should confirm the shape, seams, mapping, image quality, operating stability, maintenance access and system files.

For spheres, cylinders, curved screens and other irregular structures, these checks are even more important because a small mechanical or mapping error can affect the complete visual result.
