Why Is the Bottom of a Large LED Sphere Hotter?

When checking a large spherical LED display with a thermal camera, you may notice something unexpected: the lower part of the sphere is hotter than the top.

At first, this seems strange. Hot air rises, so shouldn’t the upper section be warmer?

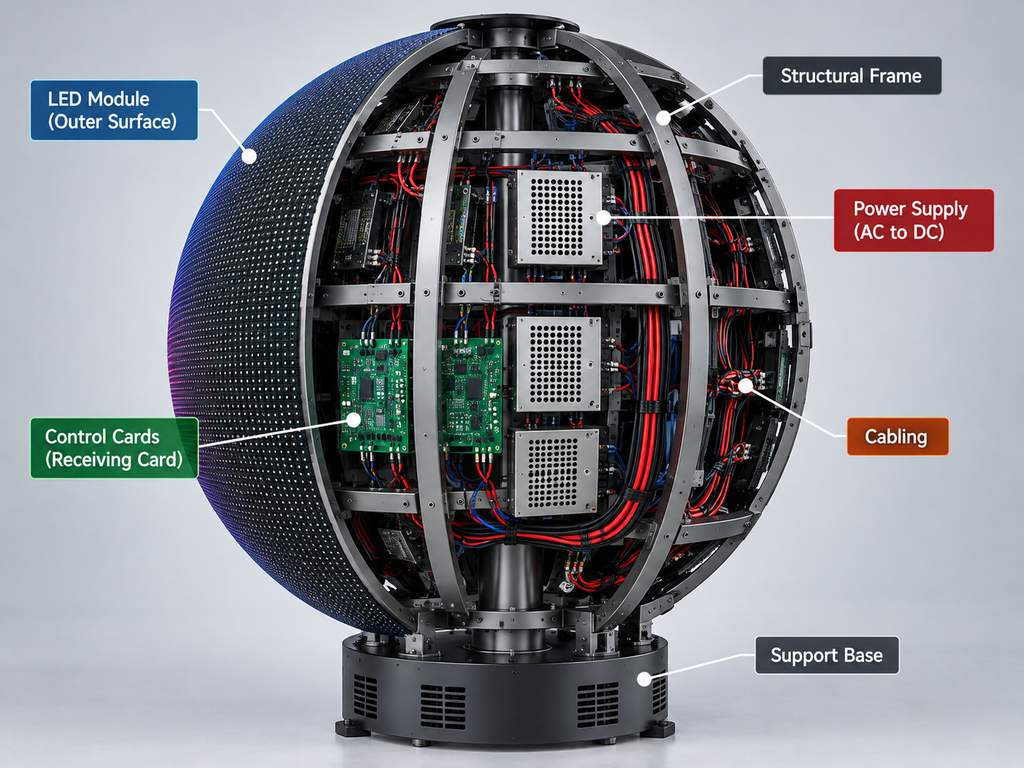

Under normal natural convection, yes. Warm air tends to move upward. But a large LED sphere is not an empty shell. Inside it are power supplies, receiving cards, cables, structural frames and mounting components. Their positions can completely change the actual temperature pattern.

If the bottom is consistently hotter, it can be a useful diagnostic sign rather than simply a normal result of LED operation.

A Hotter Bottom Does Not Always Mean the Screen Is Overheating

A small temperature difference between different areas of a sphere is not automatically a problem.

What matters is the pattern.

For example, if the complete screen becomes warmer after running for an hour but the temperature remains relatively even, the heat dissipation system may be working normally.

The situation deserves more attention when one lower section stays much hotter than the middle and upper sections.

This local hot spot may place additional thermal stress on LED modules, driver ICs, power supplies and connectors. Over long operating periods, it may also contribute to brightness inconsistency or unstable components.

Instead of asking only, “Is the screen too hot?”, technicians should also ask:

Why is this particular area hotter than the rest of the sphere?

1. Power Supplies May Be Concentrated Near the Base

One of the first things to check is the position of the power supplies.

Large LED spheres require multiple power supplies to convert incoming AC power into the low-voltage DC power used by LED modules.

Depending on the structural design, some power supplies and electrical components may be installed closer to the lower part of the sphere or inside the supporting base. These components produce their own heat during operation.

This means the bottom area can have two heat sources at the same time:

• heat from the LED modules;
• heat from power and control components behind them.

If several power supplies are installed close together without enough space for air movement, a local hot zone can develop even though warm air naturally rises.

2. The Base Can Block the Cool-Air Path

The installation method matters too.

A spherical LED display can be suspended, installed on a supporting base or integrated into a customized structure.

For a floor-standing sphere, the lower support structure may occupy part of the area where cool air would otherwise enter.

Imagine a large sphere with ventilation openings near the bottom. If a decorative base, steel frame or mounting plate covers part of those openings, less cool air can enter the screen.

The problem is therefore not that hot air is moving downward. The problem is that not enough cooler air is entering from below.

This distinction is important when diagnosing the screen.

3. Cable Bundles Can Create an Airflow Bottleneck

Power and signal cables are easy to overlook during thermal inspection.

On many large installations, cables enter the sphere through the lower structure. They then branch out to power supplies, receiving cards and LED modules.

A few cables are not a major problem. But in a large sphere, a dense group of cables can occupy a surprising amount of internal space.

If cable bundles cross an intended ventilation path, airflow resistance increases. Warm air around nearby electronics is then removed more slowly.

Simply adding another fan may not solve this problem.

Sometimes the better solution is to reorganize the cable route and reopen the original airflow channel.

4. The Lower Structure Can Trap Heat

The internal frame of a large LED sphere is much more complicated than that of a flat LED wall.

Flexible or customized LED modules follow the curved surface, while the internal metal frame keeps the complete sphere stable. TOOSEN’s spherical LED displays, for example, use specialized modules to create the curved 360-degree display surface.

Near the bottom, the structure may also need to carry more mechanical load or connect to a supporting column or base.

This can create small enclosed spaces behind the LED modules.

If warm air enters these spaces but cannot escape easily, a local hot pocket forms.

This is why thermal design should be considered together with mechanical design. A structurally strong base is necessary, but it should not unintentionally become a thermal barrier.

5. Check Whether the Load Is Really Equal

Not every temperature difference comes from ventilation.

The electrical load should also be checked.

A section of the sphere may be operating under a different load because of module configuration, power distribution or hardware conditions. Content can also affect short-term power consumption.

For thermal testing, avoid comparing different sections while they are showing completely different images.

A better approach is to display the same controlled test content across the sphere and allow the screen to reach a stable operating condition.

Then compare temperatures.

This makes it easier to separate an airflow problem from a load-related problem.

Use a Three-Zone Temperature Test

A simple three-zone test can make troubleshooting much faster.

Divide the sphere into:

Zone A – Upper section

Zone B – Middle/equator section

Zone C – Lower section

Run the display under a controlled test pattern for about 30–60 minutes. Keep the brightness and test conditions stable.

Then use a thermal camera or suitable infrared measuring device to record the temperature of comparable points in all three zones.

For example:

These numbers are only an example, not a universal temperature limit.

The important information is the difference between comparable locations.

If the lower section repeatedly shows a clear temperature rise, inspect the components behind that zone.

A useful checking order is:

Power supply position → air inlet → cable route → base structure → fan direction → electrical load

This is more effective than immediately installing more cooling fans.

Fix the Cause, Not Just the Temperature

Once the hot area has been located, the solution should match the cause.

If the air inlet is blocked, increase the open ventilation area.

If cable bundles are restricting airflow, reroute or secure them away from the main ventilation path.

If several heat-producing components are concentrated in one small area, consider redistributing them when the electrical and structural design allows it.

For large or high-brightness projects, active ventilation may also be necessary. Fans should create a complete airflow path rather than simply move warm air around inside the sphere.

Cool air needs somewhere to enter, and hot air needs somewhere to leave.

Thermal Design Should Start Before Production

The best time to solve a lower hot-spot problem is before the sphere reaches the installation site.

During the design stage, engineers can review the location of the power supplies, receiving cards, support frame, cable channels, ventilation openings and maintenance access.

This is especially important for large custom spheres because their internal layouts can vary greatly from project to project.

TOOSEN manufactures LED ball screens for indoor and outdoor applications with customized diameters, pixel pitches and installation structures. Thermal management, power distribution and internal structural layout can therefore be considered according to the actual project rather than treating every sphere as the same product.

FAQ

Is it normal for an LED sphere to feel warm?

Yes. LEDs, driver ICs and power supplies generate heat during operation. The more useful question is whether the temperature is stable and reasonably uniform across comparable sections.

Shouldn’t the top always be hotter because hot air rises?

Not necessarily. Natural convection moves warm air upward, but component placement and restricted airflow can create a stronger local heat source near the bottom. A hotter lower section is therefore worth investigating.
