Why Is One LED Module Not Working? 7 Troubleshooting Steps

When one LED module is not working but the rest of the LED display operates normally, it is easy to assume that the module is broken.

However, this is not always the case.

A black LED module can be caused by a loose power connector, damaged ribbon cable, signal interruption, HUB board problem, receiving card failure, or an internal PCB fault.

Replacing the module without checking these parts may not solve the problem.

The fastest way to troubleshoot the issue is to start with the visible symptom and then check the power and signal path step by step.

1. Identify the LED Module Failure

Before removing anything, look carefully at the faulty area.

Different symptoms can point to different problems.

The number of affected modules is especially important.

If only one module is black, the fault is usually local. If several modules connected in sequence stop working, check the signal and power distribution before assuming several modules have failed at the same time.

2. Check the LED Module Power Connection

Power is one of the first things to check when an LED display module is not working.

Turn off the LED display before reconnecting or removing cables.

Inspect the power connector behind the faulty module. Look for:

• Loose connectors
• Damaged terminals
• Burn marks
• Corrosion
• Broken wires
• Poor contact

Reconnect the power cable firmly and restart the display.

If trained to do so safely, use a multimeter to compare the input voltage of the faulty module with a nearby working module. Always use the voltage specified for your particular LED display rather than assuming every module uses the same value.

If there is no correct power input, continue checking the power cable and power supply.

If the module receives normal power but remains black, move to the data connection.

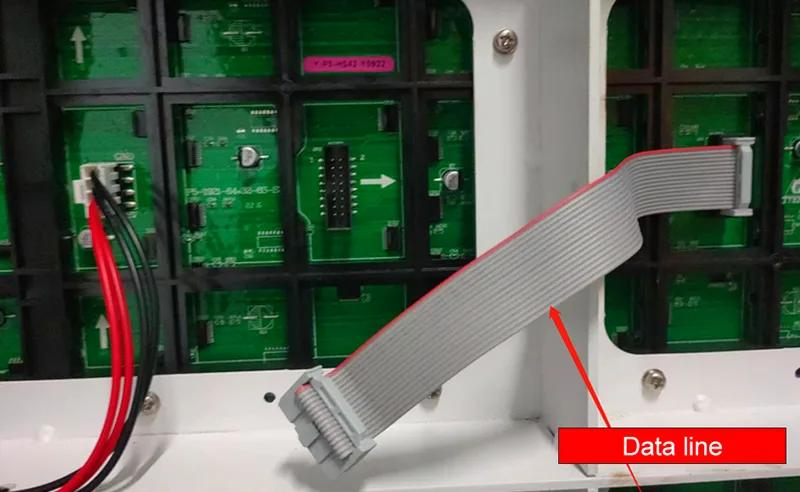

3. Check the Ribbon or Data Cable

A damaged or loose ribbon cable is a common cause of an LED module black screen.

The data cable carries display information from the HUB board or signal distribution system to the LED module.

Turn off the screen and carefully reconnect the ribbon cable.

Check for:

• Loose connections
• Bent connector pins
• Damaged cables
• Incorrect cable direction
• Dirty or damaged interfaces

If possible, replace the suspected cable with a known-good cable.

If the LED module starts displaying normally, the original cable or connection was the likely cause.

The position of the black modules can also provide useful information.

For example, if one module and several modules after it are black, the first module may not be the only problem. A broken signal connection can interrupt data transmission to the modules farther down the signal chain.

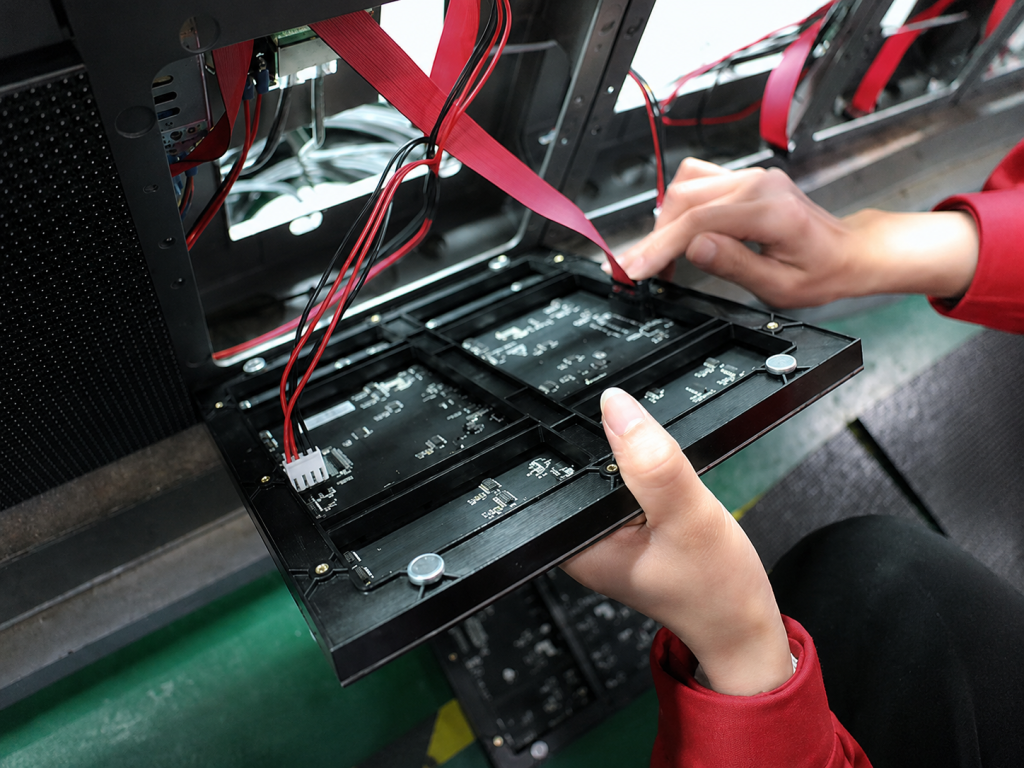

4. Swap the Faulty LED Module With a Working Module

The module swap test is one of the most useful steps in LED display module troubleshooting.

Choose a nearby working module with the same specifications and temporarily install it in the faulty position.

There are two possible results.

The Replacement Module Works

If the known-good module works normally in the same position, the original module is probably faulty.

Possible internal problems include:

• Driver IC failure
• Damaged PCB
• Poor solder joints
• Damaged connectors
• Moisture damage
• Electronic component failure

The Replacement Module Is Still Black

If a working module also becomes black in the same position, the module itself is probably not the problem.

Continue checking the:

Power connection → Data cable → HUB board → Receiving card

You can also install the suspected module in a known-good position.

If the black-screen problem follows the module, this is strong evidence of an internal LED screen module failure.

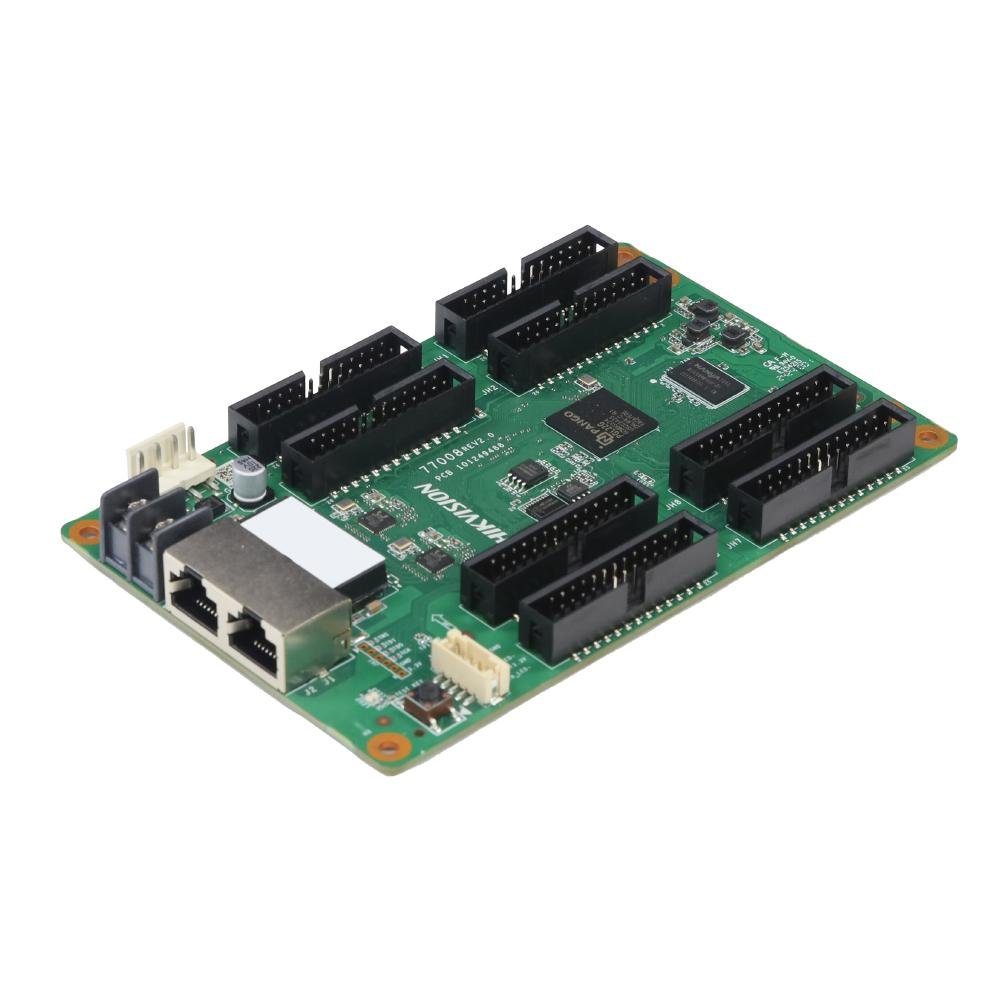

5. Check the HUB Board and Receiving Card

If power and cables are normal, check the upstream signal system.

A simplified LED display signal path is:

Controller → Receiving Card → HUB Board → LED Module

The receiving card processes display data and distributes it to LED modules through the HUB board.

A damaged HUB output, loose connector, or receiving card problem can cause one or several modules to stop displaying.

This is why technicians should not immediately replace multiple LED modules when several neighboring modules suddenly go black.

Look at the failure pattern.

One module black:
Focus first on its connector, cable, and module.

Several modules black in sequence:
Focus on the HUB board, signal path, receiving card, and power distribution.

Entire cabinet black:
Check the cabinet power supply, receiving card, network cable, and main input.

This simple distinction can significantly reduce troubleshooting time.

6. Inspect the PCB and Driver IC

If the fault follows the module during the swap test, inspect the LED module itself.

An LED module contains LEDs, driver ICs, PCB circuits, connectors, and other electronic components.

Internal problems may include:

• Driver IC damage
• PCB circuit damage
• Cold or broken solder joints
• Connector damage
• Short circuits
• Moisture or corrosion
• Physical damage

The failure pattern can provide additional clues.

For example, one missing row or column may indicate a driver circuit problem, while half of the module being black may point to a scan circuit, IC, or PCB issue.

Professional PCB repair normally requires suitable testing and soldering equipment.

For many commercial LED displays, replacing a confirmed faulty module is faster than repairing the PCB on site.

7. Decide Whether to Repair or Replace the LED Module

Not every black LED module needs replacement.

Consider replacing it when:

• The failure follows the module during the swap test
• The PCB is visibly damaged
• Multiple driver circuits have failed
• There is serious corrosion or water damage
• Many LEDs have failed
• Previous repairs have not solved the problem

A replacement module should match the original module specifications, including pixel pitch, dimensions, scan mode, interface, LED type, and electrical requirements.

After installation, brightness and color calibration may be necessary to make the new module visually match the surrounding modules.

For creative displays, curved screens, spheres, cylinders, and other irregular structures, using compatible replacement modules is especially important because module shapes and installation structures may be customized.

Quick LED Module Troubleshooting Checklist

If one LED module is black, follow this order:

Step 1: Turn off the LED display safely.
Step 2: Check the module power connector.
Step 3: Reconnect the ribbon/data cable.
Step 4: Test with a known-good data cable.
Step 5: Swap the faulty module with a working module.
Step 6: Check the HUB board and receiving card.
Step 7: Inspect or replace the module if the failure follows it.

Following this sequence helps identify the real problem without replacing unnecessary components.

How to Prevent LED Module Problems

Good maintenance can reduce LED module failures and unexpected black screens.

Keep power and signal connectors secure, avoid excessive pulling when removing modules, maintain proper ventilation, and regularly inspect outdoor displays for moisture and corrosion.

It is also useful to keep compatible spare LED modules, ribbon cables, power supplies, and receiving cards available for important installations.

For custom-shaped or flexible LED displays, maintenance planning should begin during the screen design stage. A modular structure and accessible installation design make it easier to remove and replace individual modules without dismantling large parts of the display.

Conclusion

When one LED module is not working, do not replace it immediately.

Start with the power connection and data cable. Then perform a module swap test. If the problem stays in the same position, inspect the HUB board, receiving card, and signal path. If the problem follows the module, inspect the PCB and driver circuit or replace the module.

This step-by-step approach makes LED display module troubleshooting faster, reduces unnecessary replacement costs, and helps minimize screen downtime.

TOOSEN provides modular indoor, outdoor, flexible, and custom-shaped LED display solutions. For customized displays in particular, spare modules and accessible maintenance structures can make future repairs much easier.

If you need help identifying an LED module fault, provide the screen model, module specifications, photos or videos of the faulty area, and a description of when the problem started.

FAQs

Why is only one LED module not working?

A single black LED module can be caused by a loose power connection, damaged ribbon cable, faulty HUB output, PCB problem, or driver IC failure. Check the connections and perform a module swap test before replacing it.

Why does my LED module have power but no display?

If the module has normal power but shows no image, check the data cable, HUB board, receiving card, configuration, and module PCB.
