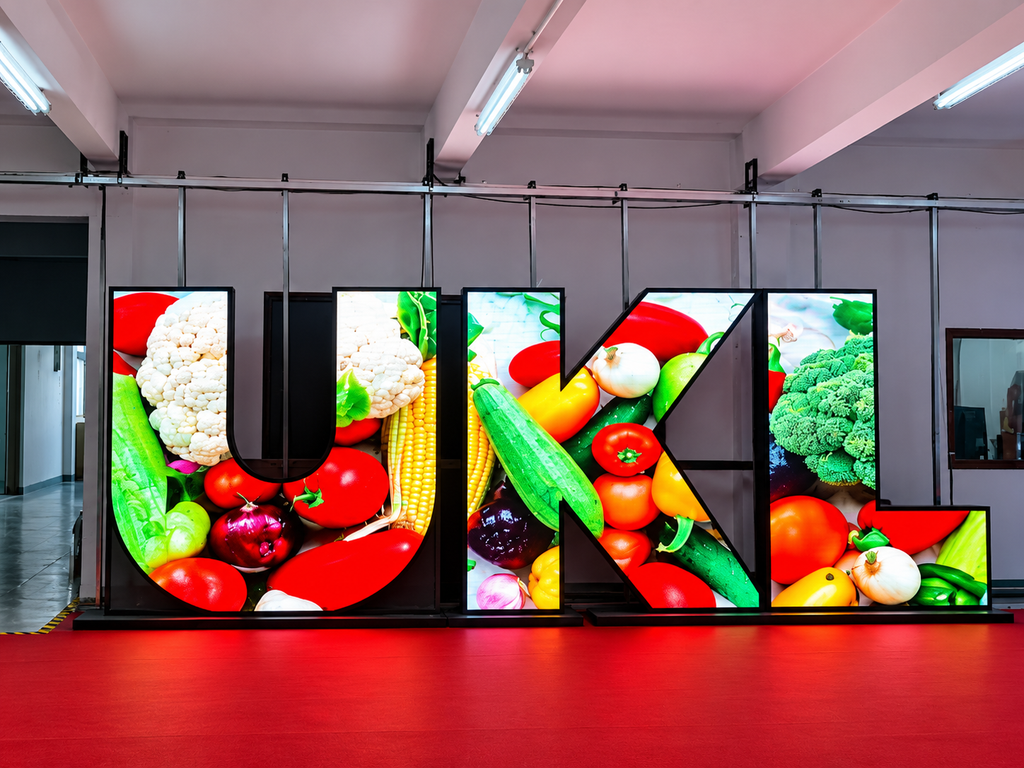

LED Letter Display Ribbon Cable Insertion Cycle Test: Why Repeated Service Causes Intermittent Module Faults

An LED letter display may work perfectly when it leaves the factory but develop strange faults after several maintenance operations.

A technician removes one module, disconnects the ribbon cable, finishes the repair and reconnects everything. The screen works again.

After another service, the same area may suddenly flicker. A module may become black for several seconds and then return to normal. Sometimes pressing the cable connector lightly makes the image appear again.

The LED module itself may not be damaged.

The real problem can be the ribbon cable connection after repeated insertion and removal.

For this reason, a ribbon cable insertion cycle test can be useful before an LED letter display is shipped.

Why Intermittent Faults Are Difficult to Find

A completely broken cable is usually easy to diagnose.

An intermittent connection is different.

The display may work normally during inspection. After vibration, temperature change or another maintenance operation, the same module may lose signal again.

Typical symptoms include:

• one LED module flickering randomly;
• a module becoming black and then recovering;
• abnormal colors appearing for several seconds;
• several pixels or rows responding incorrectly;
• a fault appearing only after the module is removed and installed again.

Because the problem is not continuous, technicians may first suspect the LED module, receiving card or software configuration.

This can increase troubleshooting time.

Why Repeated Service Can Damage the Connection

Ribbon cables inside an LED display carry signal data between the control system and LED modules.

Every time maintenance is performed, the connector may be unplugged and inserted again.

One operation usually causes little change. Repeating the process many times can gradually affect the connection.

Possible reasons include connector contact wear, slightly bent pins, reduced terminal pressure, cable deformation and incorrect insertion angle.

The problem can be more important in an LED letter display because the internal space is often narrower than inside a standard rectangular cabinet.

Letters such as A, E, M, S or R contain narrow sections, corners and irregular internal structures.

Technicians may need to work in limited space, increasing the possibility of pulling or twisting the ribbon cable during maintenance.

Do Not Test Only a New Connection

A common factory check is simple:

Connect the cable, power on the display and confirm that the module works.

This proves that the connection works at that moment.

It does not show how the connector will perform after repeated servicing.

A better method is to simulate maintenance before shipment.

For example, engineers can select several representative modules and repeatedly:

1. switch off the test unit;
2. disconnect the ribbon cable;
3. inspect the connector;
4. reconnect the cable;
5. power on the module;
6. run test patterns;
7. record any abnormal behavior.

The purpose is not to destroy the connector.

The purpose is to check whether repeated normal service changes the stability of the signal connection.

How to Perform a Ribbon Cable Insertion Cycle Test

The test should use the same ribbon cables, connectors and LED modules that will be used in the final product.

First, record the initial condition.

Check that the module displays red, green, blue, white and low-gray images correctly.

Then begin the insertion cycles.

A project may define its own test quantity according to the connector specification and expected maintenance frequency. The important point is that every cycle should use the same controlled method.

Do not pull the cable sideways.

Do not force the connector into the socket.

After a group of cycles, run the display again.

Check for:

• black modules;
• image flickering;
• unstable colors;
• missing signal lines;
• faults appearing when the cable is moved gently;
• connectors that feel noticeably looser than before.

Record the cycle number when any abnormal behavior first appears.

This makes the test measurable instead of relying only on visual judgment.

Add a Gentle Movement Test

Some intermittent faults appear only when the cable moves.

After the insertion cycle test, keep the screen powered and carefully move the ribbon cable near the connector.

The movement should be small.

You are not trying to pull the cable out.

If the module flickers when the cable is moved slightly, inspect the connector immediately.

A stable connection should not lose the image during normal cable movement inside the structure.

This simple step can reveal weak contacts that may remain hidden during a static test.

Check the Cable Routing Inside LED Letters

The cable itself is only one part of the problem.

Routing also matters.

Inside a custom LED letter display, cables may pass through narrow strokes or turn around structural supports.

Avoid routing that creates:

• sharp folds;
• continuous tension on the connector;
• cables pressed against metal edges;
• extremely short cable lengths;
• excessive cable loops behind the module.

After installing the module, the ribbon cable should remain relaxed.

The connector should not carry the mechanical load of the cable.

If the cable is constantly pulling against the socket, repeated maintenance can make the connection less reliable.

Example: Intermittent Fault After Module Replacement

Consider a large LED letter installation inside a retail space.

During factory aging, every module operates normally.

Several months later, one module inside the letter “A” is replaced during maintenance.

After the repair, the module works correctly.

A few days later, the customer reports occasional flickering.

The module is tested again and appears normal.

Further inspection shows that the ribbon cable connection becomes unstable when the cable is moved slightly.

Instead of replacing another LED module, the technician replaces the ribbon cable and checks the connector position.

The fault disappears.

This example shows why intermittent module problems should not automatically be treated as LED module failures.

FAQ

Can a ribbon cable cause only one module to fail?

Yes. Depending on the signal path and connection design, a loose or damaged ribbon cable may affect one module or several modules downstream.

Should ribbon cables be reused during maintenance?

They can be reused if the cable and connector remain in good condition. However, damaged contacts, bent cable ends or unstable connectors should be replaced.

Why does the screen work after reconnecting the cable?

Removing and reinserting the cable can temporarily restore electrical contact. If the connector is worn or loose, the fault may return later.

Should this test replace the normal aging test?

No. The tests check different risks. Aging testing checks long operating periods, while insertion cycle testing focuses on repeated service and connector reliability.

Building Easier-to-Service LED Letter Displays

Reliable LED letter displays depend on more than pixel pitch and brightness.

The internal connection system also needs to survive real maintenance.

At Toosled, custom LED display projects can be evaluated from the module structure, cable routing, connector position and maintenance access before production.

For LED letters with narrow strokes or complex shapes, leaving enough service space can reduce unnecessary pulling and bending of ribbon cables.

Testing the connection before shipment also helps identify unstable connectors before the display reaches the installation site.
