How Engineers Prevent Connector Failures in Custom-Shaped LED Displays

A custom-shaped LED display may pass every factory test and still develop an unexpected problem months after installation.

The screen suddenly flickers. One section goes black for a few seconds and then returns. A technician checks the LED modules and receiving cards, but they appear normal.

The real problem may be much smaller: a cable connector hidden deep inside the structure.

In a conventional flat LED wall, cables usually follow relatively straight and predictable routes. Inside a sphere, cylinder, bottle, curved wall, or irregular LED structure, the situation is different. Cables may turn around frames, pass between narrow spaces, cross structural sections, and connect modules at different angles.

This makes connector design an important part of custom-shaped LED display reliability.

Why Connectors Become Hidden Failure Points

A connector does not need to completely disconnect to cause trouble.

A slightly loose signal connector can create intermittent image errors. A power connector with poor contact may generate heat. A cable under constant tension may slowly pull against its connector until the connection becomes unstable.

The difficult part is that these problems are often hidden.

During factory testing, the display may operate normally. After transportation, installation, temperature changes, vibration, and months of operation, the weak connection may finally begin to fail.

This is why experienced engineers do not only ask:

“Is the connector connected?”

They also ask:

“Will this connection remain stable after the display has been installed and operated for a long time?”

1. Never Let the Connector Carry Cable Tension

One common mistake is using a cable that is only just long enough to reach the next component.

It may look clean during assembly, but a tight cable creates continuous pulling force on the connector.

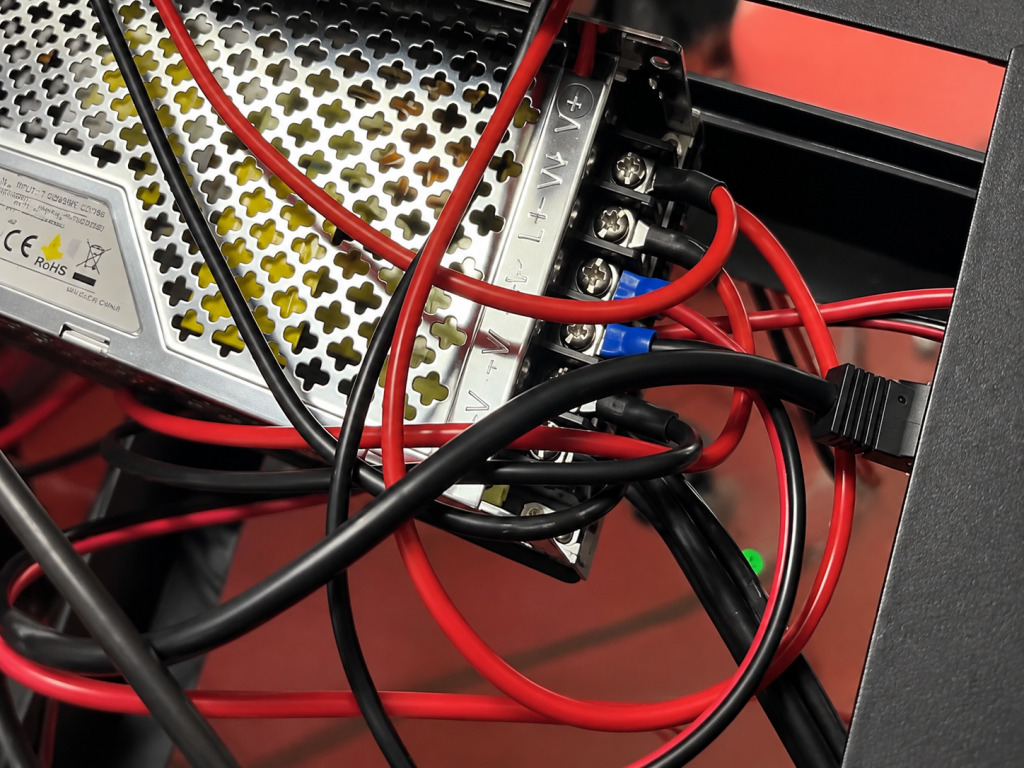

This is especially risky inside curved and irregular LED displays. A cable may need to bend around a metal frame before reaching a receiving card, power supply, HUB board, or LED module.

A better design leaves controlled service slack and adds strain relief where necessary.

The connector should make the electrical connection. It should not be used as the mechanical support for the cable.

Cable clips, ties, routing channels, and suitable fixing points can transfer the cable load to the internal structure instead of the connector.

However, more cable is not always better. Excess cable packed into a small space can interfere with ventilation and maintenance. Engineers need enough slack for safe movement and servicing without creating a messy cable bundle.

2. Check the Bend Before Choosing the Connector Position

Another hidden problem appears when a connector fits, but the cable cannot leave the connector naturally.

Imagine a straight connector installed only a few centimeters from an internal frame. The cable plugs in correctly, but immediately has to make a sharp turn.

The display may still pass its first test.

Over time, however, the tight bend can place stress close to the connector and cable termination.

Engineers should therefore evaluate three things together:

connector position + connector orientation + cable routing

In some structures, changing the direction of the connector or using a more suitable routing path can remove unnecessary stress without changing the electrical design.

This is particularly important in compact spherical and other custom-shaped LED displays, where internal space is limited.

3. Keep Important Connections Out of Maintenance Dead Zones

A connector can be electrically perfect but still be poorly designed if nobody can reach it after final assembly.

Consider a connector located behind an LED module, a steel support, and another internal component. During production, workers can easily connect it because the structure is still open.

After the display is completed, that same connector may become almost impossible to reach.

If it fails later, technicians may have to remove several modules just to replace one cable.

For this reason, connector accessibility should be reviewed before the structure is closed.

Critical power and signal connections should be placed where technicians can inspect, disconnect, and replace them with reasonable effort.

This is particularly valuable for large custom-shaped LED displays, where the internal structure may contain many different sections.

4. Protect Connectors From Movement and Vibration

Not every custom LED display remains completely still throughout its life.

Hanging spheres, stage displays, rental structures, movable installations, and mechanical LED projects can experience movement during transportation, installation, or operation.

Even small repeated movement can expose a weak connection.

Engineers should therefore check whether connectors are properly seated and whether their locking mechanisms are fully engaged. Cable harnesses should also be secured so movement in one part of the harness is not transferred directly to the connector.

This does not mean every cable should be fixed as tightly as possible.

The goal is controlled movement: enough flexibility to avoid excessive stress, but enough support to prevent cables from repeatedly pulling against their terminals.

5. Separate Cable Routing From Sharp Structural Edges

Custom shapes often require custom metal frames.

These structures can create narrow passages and unusual cable routes that do not exist in standard rectangular LED cabinets.

A cable should not be pressed tightly against a sharp metal edge. During transportation or long-term vibration, repeated contact may damage the cable jacket.

Engineers can change the routing path, smooth the contact area, add protective sleeves, or use suitable cable-management components where required.

The route should also remain clear enough that technicians can identify power and signal lines during maintenance.

Good cable management is not mainly about making the inside of the screen look neat. It is about reducing mechanical and maintenance risks.

6. Label Connections Before the Structure Is Closed

Finding one faulty connection inside a complex display can take much longer than replacing it.

That is why labeling becomes important.

For a large custom project, engineers can create a simple connector map and assign identification numbers to important connections.

For example:

C01 – Main Signal Input
C02 – Receiving Card A
C03 – Module Group A
P01 – Power Supply 1
P02 – Power Supply 2

If a problem appears later, the technician can follow the documented signal or power path instead of opening the display and guessing which cable goes where.

This becomes increasingly useful as the shape and internal structure become more complicated.

7. Do More Than a Simple Power-On Test

A display showing a normal picture for ten minutes does not prove that every connector is mechanically reliable.

Before shipment, connector-related testing can include:

• Visual inspection of plugs and terminals
• Locking and seating checks
• Light pull checks on cable connections
• Controlled movement of cable harnesses
• Full-screen image and video testing
• Power and signal stability checks
• Reinspection after aging or extended operation

During a controlled movement test, technicians can gently move the cable harness while the display is operating.

If the image flickers, a receiving section disappears, or the signal becomes unstable, the connection should be investigated before shipment.

For custom displays, this small test can reveal problems that a normal static screen test may miss.

A Practical Example: Inside a Spherical LED Display

A spherical LED display is a good example because modules and internal components are arranged around a curved structure rather than a flat plane.

Power and signal cables may need to travel between different curved sections while avoiding the internal support frame.

If engineers simply choose the shortest possible cable route, some connectors may end up under tension or hidden behind structural parts.

A better approach is to plan the cable path together with the module layout and supporting structure.

The final design should allow the cables to follow the sphere naturally, keep important connectors accessible, provide appropriate strain relief, and make future troubleshooting easier.

FAQ

Can a loose connector cause an LED display to flicker?

Yes. An unstable signal connection can cause intermittent flickering, missing sections, image errors, or temporary signal loss. Power-side connection problems can also affect individual sections of the display.

Should cables inside an LED display be pulled tight?

No. A cable should not continuously pull against its connector. Controlled service slack and proper cable support help reduce mechanical stress.

Why are cable connectors more difficult to manage in custom-shaped LED displays?

Irregular structures create more turns, different module angles, narrow internal spaces, and non-standard cable paths. Connector position therefore needs to be considered together with the mechanical structure.

Can Toosen customize the internal structure of a special-shaped LED display?

Yes. Toosen develops custom LED solutions for different shapes, sizes, pixel pitches, installation methods, and indoor or outdoor applications. The product range includes spherical, cylindrical, curved, cube, bottle-shaped, and other irregular LED structures.

For custom projects, engineering work can include module layout, supporting structure, cable routing, installation design, and maintenance planning instead of simply changing the outside shape of a standard LED screen.

Final Thoughts

Cable connectors are small components, but inside a custom-shaped LED display they can affect the reliability of an entire section.

The best solution is not waiting until a connector becomes loose and then replacing it.

Engineers should reduce the possibility of failure during the design and production stages by controlling cable tension, avoiding sharp bends, protecting cable routes, keeping critical connections accessible, securing cable harnesses, labeling connections, and testing them before shipment.

At Toosen LED, custom-shaped displays are developed around the complete project rather than shape alone. Toosen supports customized spherical and special-shaped LED screens with different pixel pitches, dimensions, structures, and installation methods for indoor and outdoor projects.

By combining customized module layouts, structural engineering, factory assembly, inspection, and testing, the goal is simple: make a creative LED display not only impressive when it is switched on, but also practical to install, maintain, and operate over the long term.
