Grounding vs. Bonding in Spherical LED Display Installations

Electrical safety is an important part of every spherical LED display installation, but two terms are often confused: grounding and bonding.

They are related, but they are not the same.

Grounding connects an electrical system to earth. Bonding connects conductive metal parts together so they remain at nearly the same electrical potential and provide a reliable path for fault current.

For a standard flat LED wall, this difference is already important. For a spherical LED display with a curved metal frame, multiple power supplies, removable sections, and different support structures, it deserves even more attention.

What Is Grounding in a Spherical LED Display?

Grounding provides a connection between the electrical system and earth through the protective grounding system.

Inside a spherical LED display, AC power is normally converted into low-voltage DC power for LED modules, receiving cards, and other components.

If an electrical fault occurs, proper protective grounding works together with the protective devices in the electrical system to reduce the risk of dangerous touch voltage.

A typical installation may include:

• Power distribution equipment
• Switching power supplies
• Protective earth conductors
• Metal electrical enclosures
• LED control equipment

These components should be installed according to the electrical design and local electrical codes.

One common mistake is assuming that connecting one ground wire somewhere on the sphere makes the entire installation safe. This is where bonding becomes important.

What Is Bonding?

Bonding means electrically connecting conductive metal parts together to create electrical continuity and an effective fault-current path.

A spherical LED screen may contain many separate metal components:

• Internal steel frame
• Module mounting brackets
• Power supply enclosures
• Distribution boxes
• Support columns
• Suspension brackets
• Removable maintenance sections

These parts may look mechanically connected, but that does not always mean they have a reliable electrical connection.

For example, two steel sections may be joined with bolts. However, paint, powder coating, oxidation, dirt, or a loose connection can increase resistance between them.

This is why installers should not automatically treat every mechanical connection as an effective bonding connection.

Why Bonding Matters More for Spherical LED Screens

The structure of a sphere is different from a conventional flat LED display.

A large sphere may be divided into several curved sections for production, transportation, and installation. Each section may contain separate modules, brackets, power supplies, and structural components.

After assembly, these parts form one complete sphere visually, but their electrical continuity still needs to be considered.

Imagine that an AC conductor inside the sphere becomes damaged and touches a metal power supply enclosure.

If the enclosure and the relevant metal structure are correctly bonded into the protective system, fault current has a designed low-impedance return path so the protective device can operate.

If the metal parts are electrically isolated because of coating, corrosion, or poor connections, an accessible part could remain at a dangerous potential.

This is why spherical LED display grounding should be considered together with proper bonding.

Hanging vs. Floor-Standing LED Sphere Installations

The installation method also changes how engineers should evaluate the structure.

Hanging Spherical LED Display

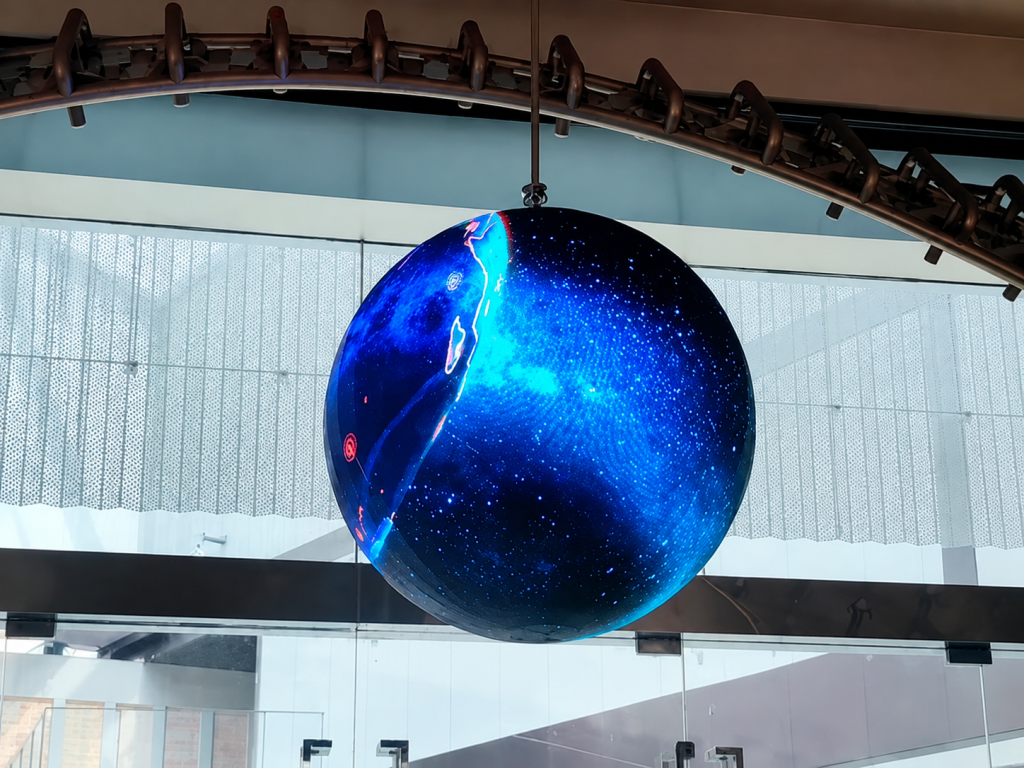

A hanging LED sphere may use suspension brackets, steel cables, trusses, or other structural hardware.

Installers should identify which accessible conductive parts form part of the electrical installation and determine the required bonding method according to the system design and local regulations.

The suspension structure should never be assumed to provide electrical bonding simply because it is made of metal.

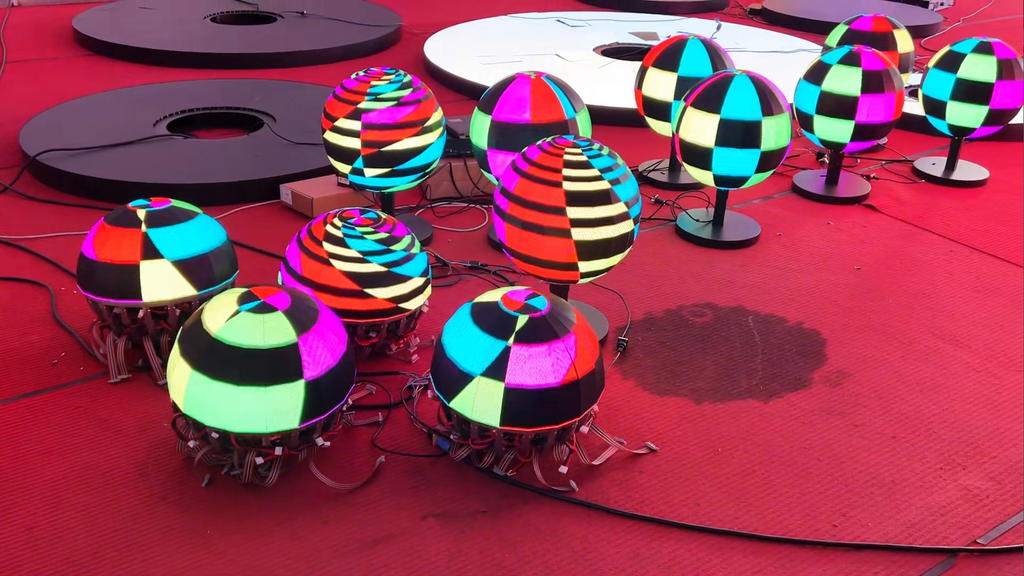

Floor-Standing Spherical LED Display

A floor-standing sphere normally uses a steel base or support column.

A common misunderstanding is that a metal base touching the floor means the display is grounded.

It does not.

Mechanical contact with a floor is not a substitute for a properly designed protective grounding and bonding system.

Grounding, Bonding, and DC Ground Are Different

Another common source of confusion is DC ground.

LED modules normally operate on low-voltage DC power, such as 5V. The DC negative connection used by the LED system is not automatically the same as protective earth.

These terms should not be mixed:

Protective Earth (PE) is part of the electrical safety system.

Bonding connects relevant conductive metal parts to maintain electrical continuity and provide a fault-current path.

DC Ground or DC Negative is part of the low-voltage DC circuit.

Understanding this difference helps avoid incorrect wiring during installation and maintenance.

Common Grounding and Bonding Mistakes

Several problems can appear during installation:

Relying only on the metal frame: A steel structure does not automatically guarantee electrical continuity.

Bonding over painted surfaces: Paint and powder coating can interfere with metal-to-metal contact.

Ignoring removable sections: Maintenance doors and detachable frame sections may require special attention.

Confusing DC negative with protective earth: They perform different functions.

Checking only after a problem occurs: Grounding and bonding should be included in the installation inspection before the display is energized.

What Should Be Checked Before Power-On?

Before powering on a spherical LED display, the installation team should inspect the protective earth connection, bonding of relevant conductive parts, power distribution equipment, cable condition, and metal enclosures.

Connections should be secure and protected against accidental loosening.

Where required, installers should also verify electrical continuity and other safety parameters with suitable test equipment.

For outdoor LED spheres, additional factors such as moisture, corrosion, surge protection, and lightning protection may also need to be considered.

The exact requirements depend on the installation environment and local electrical regulations, so final electrical work should be completed or verified by qualified personnel.

Final Thoughts

Grounding and bonding solve different parts of the same electrical safety problem.

For a spherical LED display, grounding the power supply alone does not automatically mean every conductive part of the structure has a reliable fault-current path.

The curved frame, separate structural sections, power supply enclosures, brackets, and support system should all be considered during installation.

TOOSLED provides spherical LED display for indoor and outdoor projects, with different pixel pitches, diameters, and installation methods including hanging and floor-standing configurations.

When planning a custom LED sphere, electrical safety should be considered together with structural design, power distribution, installation, and future maintenance—not treated as a final step after the screen has already been assembled.
