GOB LED vs SMD LED Display: Which Is Better?

Choosing between a GOB LED display and an SMD LED display is not simply about choosing the newer technology. Both solutions are widely used in LED display projects, but they solve different problems.

SMD is a mature LED technology used in indoor video walls, outdoor advertising screens, rental displays, stages, and commercial installations. GOB adds a protective layer over the LED module, making the screen more resistant to impact, dust, moisture, and frequent handling.

So, what is the real difference between GOB LED vs SMD LED display, and which one should you choose?

What Is an SMD LED Display?

SMD stands for Surface Mounted Device.

In an SMD LED display, LED packages are mounted directly onto the PCB. Red, green, and blue light work together to produce full-color images.

SMD technology has become one of the most common solutions in the LED display industry because it provides good image quality, wide viewing angles, multiple pixel pitch options, and relatively convenient maintenance.

A traditional SMD indoor LED display can be used for conference rooms, shopping malls, churches, hotels, control rooms, exhibitions, retail stores, and many other fixed installations.

For projects where the screen is installed permanently and rarely touched, SMD remains a practical and cost-effective solution.

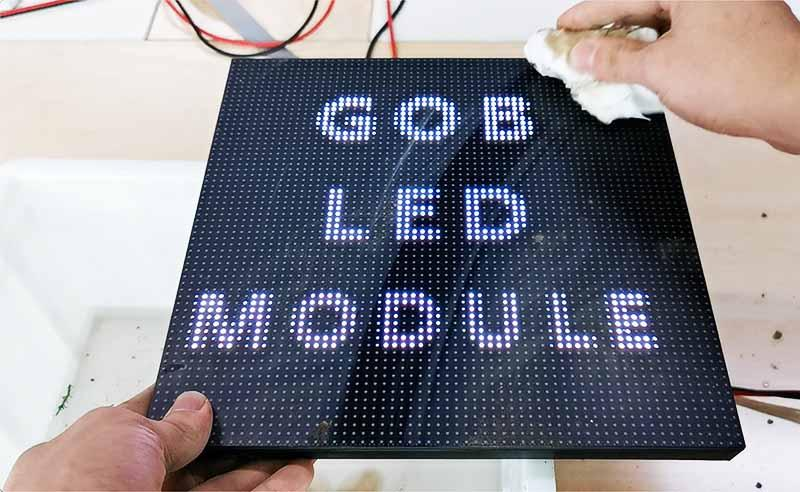

What Is a GOB LED Display?

GOB stands for Glue on Board.

One important point is often overlooked when discussing GOB vs SMD LED technology:

GOB is usually not a completely separate LED packaging technology.

A GOB module can start with an SMD LED module. After the LED components are mounted on the PCB, a transparent protective material is applied over the module surface.

The process can be understood simply as:

SMD LED Module → Protective Encapsulation → GOB LED Module

This protective layer covers the LEDs and surrounding areas, reducing their exposure to impact, dust, moisture, static electricity, and other environmental factors.

Because of this additional protection, GOB is particularly useful for displays that are frequently transported, touched, installed, or removed.

GOB LED vs SMD LED Display: Key Differences

The main difference is therefore not resolution.

It is protection and durability.

What Are the Advantages of GOB LED Displays?

Better Protection Against Physical Damage

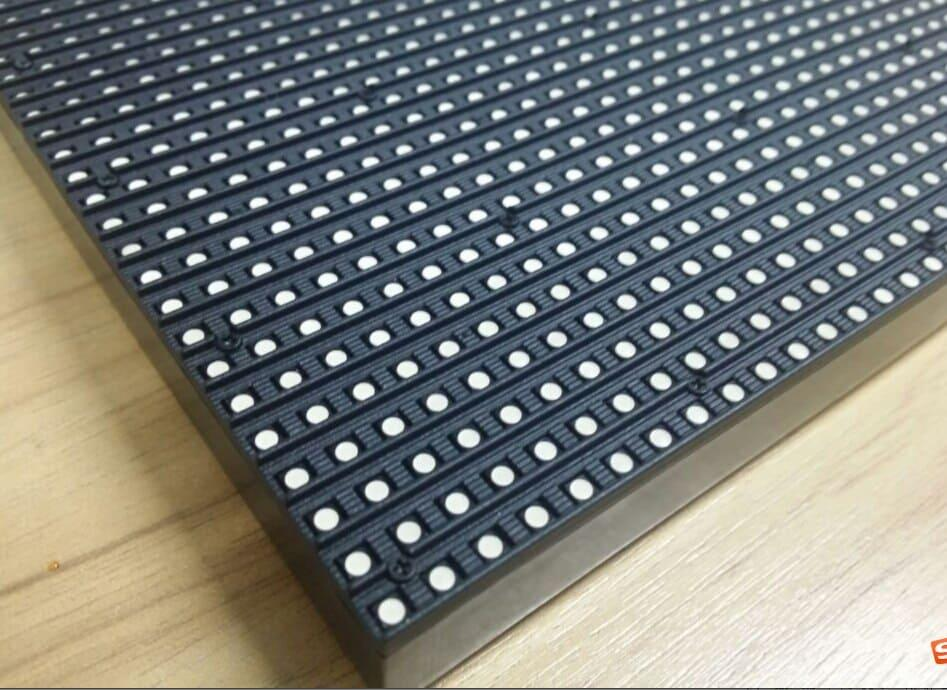

Traditional SMD LED lamps are exposed on the surface of the module. During transportation, installation, maintenance, or repeated assembly, these small components may be damaged by accidental impact.

GOB creates an additional protective surface.

This is particularly useful for rental LED screens, portable displays, exhibition screens, and products that are frequently moved.

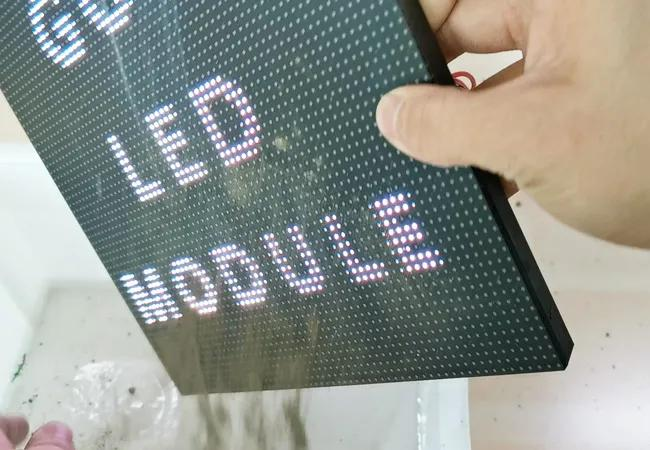

Better Resistance to Dust and Moisture

The protective material fills the small spaces around LED components and creates a more sealed surface.

This can improve resistance to dust, moisture, scratches, and accidental contact.

However, GOB should not automatically be considered completely waterproof. Outdoor performance still depends on the complete cabinet, connectors, power supply, sealing structure, and IP protection design.

Better for High-Traffic Environments

LED displays installed in shopping malls, retail stores, exhibitions, museums, and public areas may be positioned close to visitors.

In these environments, accidental contact is more likely.

For example, a portable GOB LED poster display may benefit from extra protection because it is frequently moved and used in commercial spaces.

Does GOB Have Better Image Quality Than SMD?

Not necessarily.

This is one of the biggest misunderstandings when comparing GOB LED vs SMD LED display technology.

A high-quality SMD LED screen can already provide excellent brightness, contrast, color accuracy, grayscale, and refresh rate.

The primary purpose of GOB is protection, not simply improving resolution.

The quality of the GOB process also matters.

Poor encapsulation may cause an uneven surface, bubbles, unwanted reflection, or differences in color and light transmission.

Therefore, buyers should not choose GOB simply because it sounds more advanced.

Manufacturing quality is more important than the technology name alone.

When Is SMD LED the Better Choice?

GOB is not necessary for every project.

Consider a conventional indoor video wall installed permanently in a conference room. People rarely touch the screen, transportation is minimal, and the environment is controlled.

In this case, a reliable SMD LED display may already provide everything the project needs.

SMD is worth considering when:

• The screen is permanently installed
• Physical contact is unlikely
• Budget is important
• Easy maintenance is required
• The environment is relatively controlled
• Additional surface protection provides little benefit

SMD also generally makes component-level maintenance more straightforward because the LED surface is not covered by a protective encapsulation layer.

When Should You Choose GOB LED?

GOB becomes more valuable when durability is a major project requirement.

Rental and Stage LED Displays

Rental panels are repeatedly assembled, removed, packed, transported, and installed again.

Extra protection can help reduce damage during these processes.

Portable LED Displays

LED posters and movable advertising screens are frequently repositioned. GOB helps protect the display surface during transportation and daily operation.

Retail and Public Spaces

Screens installed close to customers may experience accidental touching, bumps, scratches, or cleaning.

Interactive Installations

Museums, exhibitions, entertainment centers, and interactive commercial installations often place LED screens close to users.

Fine-Pitch LED Displays

As pixel pitch becomes smaller, the LED components become more densely arranged. Additional surface protection can be valuable in close-viewing and high-contact environments.

How to Check GOB LED Display Quality Before Buying

Not every GOB LED display offers the same quality.

Before choosing a supplier, buyers should check several details.

1. Surface flatness

Look at the module from different angles. The protective surface should appear smooth and uniform.

2. Bubbles

Visible bubbles, gaps, or uneven areas may indicate poor encapsulation quality.

3. Color consistency

Display white, red, green, blue, gray, and black test images and compare different modules.

4. Black-screen performance

Check the screen under normal ambient lighting. Excessive reflection may affect contrast.

5. Heat performance

Ask the manufacturer about long-term aging tests and heat dissipation.

6. Maintenance

Confirm how damaged LEDs or modules are repaired after encapsulation.

These checks are often more useful than simply asking whether a product uses GOB technology.

GOB vs SMD: Which Costs Less?

SMD generally has a lower initial cost because it does not require the additional GOB encapsulation process.

However, the cheapest purchase price does not always mean the lowest long-term cost.

Consider a rental LED display that is transported dozens of times each year. If exposed LEDs are frequently damaged, repair labor, replacement modules, transportation, and downtime all increase the real operating cost.

In this situation, paying more for GOB protection may reduce maintenance costs over time.

For a fixed indoor installation with almost no physical contact, traditional SMD may remain more economical.

Instead of asking:

“Which technology is cheaper?”

Buyers should ask:

“Which technology offers a lower total cost for my application?”

GOB LED vs SMD LED: Final Recommendation

There is no universal winner between GOB and SMD.

Choose SMD LED when you need a mature and cost-effective display for a conventional installation with a relatively low risk of physical damage.

Choose GOB LED when additional protection against impact, handling, dust, moisture, and frequent transportation is important.

Most importantly, do not judge an LED display only by whether it says “GOB” or “SMD.”

Pixel pitch, LED quality, PCB design, driving IC, refresh rate, heat dissipation, cabinet structure, production process, aging tests, and after-sales support can all affect the final performance.

For buyers who are unsure which solution fits their project, Toosen LED provides OEM and ODM LED display solutions for different installation environments, pixel pitches, screen sizes, and application requirements.

FAQs

Is GOB LED better than SMD LED?

Not always. GOB offers additional surface protection, while SMD can offer lower cost and easier maintenance. The better choice depends on the application.

Is GOB LED waterproof?

GOB can improve moisture resistance on the module surface, but the waterproof performance of the complete display also depends on cabinet sealing, connectors, power supplies, and the overall IP design.
