Flexible LED Display Cabinet Squareness Test: Why Diagonal Errors Cause Seam Drift

A flexible LED display can use good modules and still develop uneven seams after several cabinets are installed.

The first cabinet looks correct. The second also seems acceptable. But after four or five cabinets, the seam slowly moves upward or downward. At the end of the screen, the error becomes obvious.

One common reason is not the LED module itself.

It is cabinet squareness.

A cabinet may have the correct width and height but still not form a perfect rectangle. When its two diagonal measurements are different, the cabinet is slightly skewed. One cabinet may show only a small error, but several cabinets connected together can turn this small difference into visible seam drift.

Why Cabinet Squareness Matters on a Flexible LED Display

For a rectangular cabinet, four corners should form accurate 90-degree relationships.

A simple way to check this is to measure both diagonals:

• Diagonal A: top-left corner to bottom-right corner
• Diagonal B: top-right corner to bottom-left corner

If the cabinet is square, the two measurements should be almost identical.

If one diagonal is longer, the cabinet has become slightly diamond-shaped.

This may not be easy to see when checking one cabinet on a workbench. The problem becomes much clearer when cabinets are connected in a row or column.

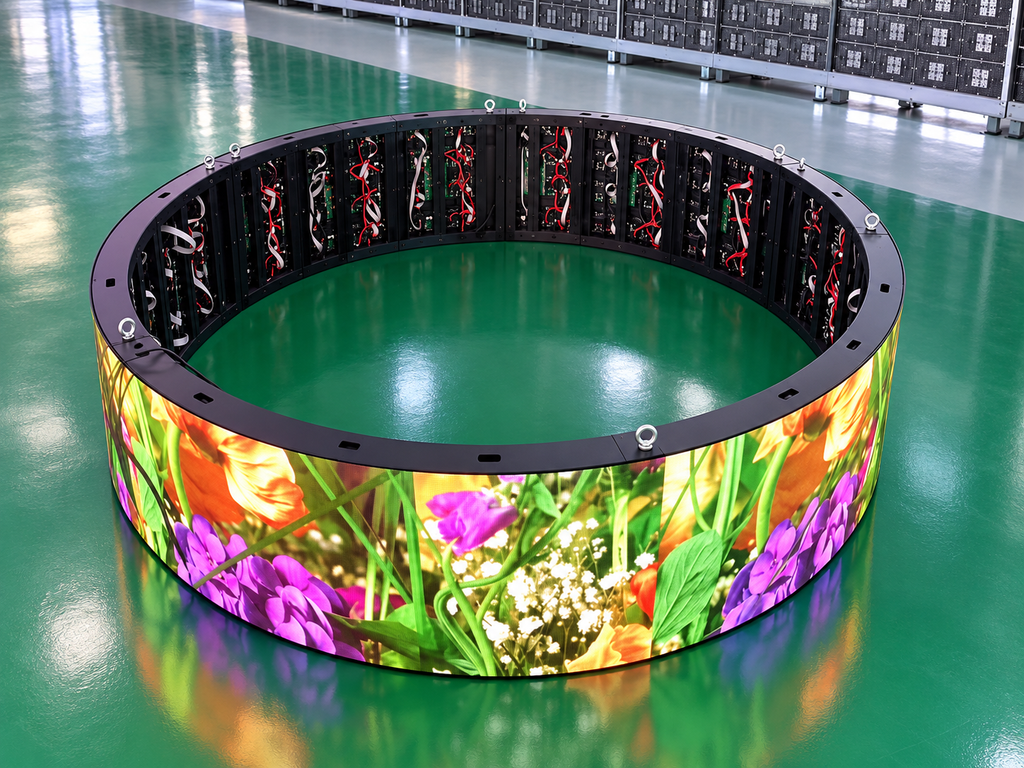

For a flexible LED display, this matters even more because the final screen may be installed on a curved frame, column, wave-shaped wall, or other customized structure.

A geometry error in the cabinet creates an additional variable before the screen is even bent.

How a Small Diagonal Error Becomes Visible Seam Drift

Imagine that each cabinet is slightly skewed in the same direction.

The left side may start in the correct position, while the right side is 0.5 mm higher.

After the next cabinet is connected, another small displacement may appear.

As more cabinets are installed, installers may see:

• horizontal seams that gradually rise or fall;
• vertical joints that no longer stay parallel;
• different gap widths from top to bottom;
• module edges that cannot align at one corner;
• increasing adjustment pressure on quick locks or screws.

This is why checking only cabinet width and height is not enough.

A cabinet can measure 500 × 500 mm on all four sides and still be out of square.

Diagonal measurement exposes this problem.

What Causes a Cabinet to Go Out of Square?

Several manufacturing and assembly conditions can create diagonal errors.

1. Frame machining error

Mounting holes, profiles, or connection points may not be positioned correctly.

2. Uneven screw tightening

If one corner is tightened too strongly before the complete cabinet is aligned, the frame can twist slightly.

3. Welding or structural deformation

Customized frames can move during fabrication, especially when heat is introduced during welding.

4. Transport pressure

A cabinet that leaves the factory correctly can still be deformed if heavy pressure is applied to one corner during transportation.

5. Incorrect installation force

Installers sometimes use locks or bolts to pull two cabinets together when they do not naturally align.

This can hide the original error temporarily but transfer the stress to the next cabinet.

The result is often worse alignment further across the screen.

How to Test Flexible LED Display Cabinet Squareness

The test is simple and should be completed before final screen assembly.

Place the cabinet on a stable and flat inspection surface.

First, measure the width at both the top and bottom.

Then measure the height on both sides.

After these basic dimensions are confirmed, measure the two diagonals.

For example:

Diagonal A = 707.2 mm

Diagonal B = 707.8 mm

The diagonal difference is:

707.8 − 707.2 = 0.6 mm

Record this value in the inspection sheet.

Do not judge the cabinet only by looking at it.

For projects requiring tight seam control, the acceptable diagonal difference should be defined according to cabinet size, structure, pixel pitch, and project requirements before production starts.

Add a Multi-Cabinet Drift Test

A single-cabinet test is useful, but a multi-cabinet assembly test provides more information.

Connect three to five cabinets on a flat reference frame.

Do not force the locks into position.

Then check:

1. the first horizontal seam;
2. the final horizontal seam;
3. vertical joint width;
4. corner contact;
5. total displacement from the first cabinet to the last.

A long ruler, laser line, feeler gauge, or other suitable measuring tool can be used depending on the required accuracy.

If the seam deviation becomes larger with every cabinet, remove the cabinets and check their diagonal measurements individually.

This helps determine whether the problem comes from one damaged cabinet or from repeated dimensional bias across a production batch.

Do Not Use the Lock to Correct a Bad Cabinet

Cabinet locks are designed to connect and position cabinets.

They should not be used as a tool to reshape a distorted frame.

If strong force is required to close a lock, stop and check the geometry.

Forcing the cabinet can create stress in the frame and affect module flatness, connection points, or the neighboring cabinet.

For a flexible LED display, the supporting structure also needs to match the designed curvature. Cabinet squareness and supporting-frame accuracy should therefore be checked separately before final installation.

Example: Curved Retail LED Wall

Consider a retail project using multiple flexible LED cabinets to create a long curved feature wall.

During pre-assembly, the first two cabinets looked normal. After six cabinets were connected, however, the upper seam had moved several millimeters from the original reference line.

Adjusting the final cabinet did not solve the problem.

The team returned to the first cabinets and measured both diagonals. Several cabinets showed a similar diagonal difference in the same direction.

After correcting the cabinet geometry and repeating the assembly test, the seam remained much closer to the reference line.

The important point was that the visible problem appeared at the end of the screen, while the dimensional error started much earlier.

FAQ

Is checking width and height enough?

No. Equal side dimensions do not guarantee that a cabinet is square. Both diagonals should also be measured.

When should the diagonal test be performed?

It is best performed after cabinet assembly and again during pre-shipment inspection, especially for customized projects.

Can software calibration correct cabinet seam drift?

No. Calibration can adjust brightness and color performance, but it cannot correct a physical cabinet geometry error.

Should installers force cabinets together if the seam is uneven?

No. First check the cabinet, mounting frame, connection points, and diagonal dimensions. Excessive force may transfer the error instead of solving it.

Control Geometry Before Calibration

A seamless flexible LED display starts with mechanical accuracy.

Before spending time on brightness calibration, color correction, or content mapping, check the physical structure first.

Measure the cabinet width.

Measure the cabinet height.

Measure both diagonals.

Then assemble several cabinets and watch whether the seam stays on the same reference line.

At TOOSEN, customized LED display projects can include structural design, cabinet matching, factory pre-assembly, display testing, packing, and installation support. For curved and customized screens, checking mechanical geometry before shipment helps reduce alignment problems during final installation.

A difference of less than one millimeter may look small on one cabinet.

Across an entire LED display, it may become the seam everyone notices.
