Customized LED Display Thermal Camera Test: What Hot Spots Mean Before Shipment

A customized LED display can look completely normal during a visual inspection but still hide an electrical or thermal problem inside the structure.

One power supply may be carrying more load than the others. A connector may have higher resistance. Several cables may be packed into a small area. A custom metal frame may also block the normal airflow behind one group of modules.

These problems are difficult to find by looking at the screen from the front.

A thermal camera test gives engineers another way to inspect the display before shipment. Instead of checking only whether the screen turns on, the test shows where heat is building up and whether that heat pattern is reasonable.

For a customized LED display, the pattern is often more useful than a single temperature number.

Why Hot Spots Matter on Customized LED Displays

A standard rectangular LED wall normally has a relatively regular module, power supply and cable layout.

A customized screen may be completely different.

Circular screens, letters, spheres, cylinders and other irregular structures can have different module directions, internal spaces and cable routes. Some sections may have less space for ventilation.

This means two areas using similar modules can still operate at different temperatures.

A small difference does not automatically mean there is a fault.

The real warning sign is an isolated hot spot that is clearly different from surrounding areas under the same operating conditions.

If that point continues getting hotter during operation, engineers need to identify what is behind it.

What Different Thermal Hot Spots May Mean

The location and shape of a hot area can provide useful clues.

1. One Small Hot Point Near a Connector

A very concentrated hot point around a power connector or terminal should be inspected carefully.

Possible causes include:

• loose connection;
• poor contact;
• damaged connector;
• abnormal contact resistance;
• improperly crimped cable.

The connector may still deliver power normally during a short test, so the screen does not necessarily show an immediate fault.

However, the thermal image can reveal the abnormal heating earlier.

2. One Power Supply Is Hotter Than the Others

When several power supplies of the same model operate under similar conditions, their thermal patterns should normally be reasonably close.

If one unit is significantly hotter, engineers should check its electrical load.

For example, too many modules may have been connected to one power supply while another supply carries a lighter load.

The solution is not simply to add cooling.

First check:

module quantity → output current → cable distribution → power supply load balance

Redistributing the load may solve the actual cause.

3. A Whole Module Area Is Warmer

If the thermal image shows a rectangular or module-shaped warm area, the problem may not come from one component.

Engineers should compare that module with neighboring modules.

Check the driver IC area, power input, PCB condition and operating brightness.

The module should also be swapped with a known-good module when practical.

If the hot pattern moves with the module, the module itself needs further inspection.

If the hot area stays in the same physical position, the cause may be behind the module.

Long Hot Strips Can Point to Cable Problems

Not every hot spot is circular.

Sometimes a thermal camera shows a narrow warm line following a cable route.

This may indicate that the cable is carrying a relatively heavy load or that several cables are bundled too tightly together.

Customized structures make this problem easier to overlook because cables often need to pass through narrow internal spaces.

Engineers should inspect cable size, current load, connector condition and routing instead of judging the screen only from its front surface.

How to Run the Thermal Camera Test Before Shipment

The test needs controlled conditions.

Otherwise, comparing temperatures becomes less useful.

First, complete the screen assembly and use the same configuration planned for shipment.

Then run a controlled test image across the whole display.

A full-white or other high-load test pattern is useful because it places a relatively consistent load across different display areas.

Keep the brightness level stable and allow the screen to operate long enough for the temperature pattern to develop.

A practical inspection sequence is:

Cold start → 15 minutes → 30 minutes → 60 minutes → thermal comparison

Do not record only the hottest temperature.

Take thermal images from the same positions at each stage.

This shows whether a location reaches a stable temperature or continues rising unusually quickly.

Compare Similar Components, Not Random Points

A common testing mistake is comparing completely different components.

A power supply will naturally operate differently from an LED module.

Instead, compare like with like:

• power supply A vs power supply B;
• receiving card A vs receiving card B;
• connector A vs connector B;
• module zone A vs equivalent module zone B.

For irregular displays, engineers can divide the screen into numbered thermal inspection zones.

For example:

Zone A – upper structure
Zone B – center structure
Zone C – lower structure
Zone D – power supply area
Zone E – main cable entry

This makes abnormal temperature patterns easier to trace back to their physical components.

Re-Test After Fixing the Hot Spot

Finding a hot area is only the first step.

After adjusting the cable, connector, power distribution or ventilation path, the display should go through the same test again.

Use the same brightness, content and operating time.

Then compare the new thermal image with the first one.

If the abnormal temperature difference has disappeared or clearly decreased, the repair has likely addressed the source.

This before-and-after thermal comparison is much more useful than simply touching the cabinet and deciding that it “feels cooler.”

Thermal Testing Is Especially Useful for Irregular Structures

Customized LED screens can contain narrow cavities, curved frames and non-standard module arrangements.

Heat can therefore collect in places that are difficult to predict from the CAD drawing alone.

Thermal imaging helps engineers verify the completed physical product rather than relying only on the original design.

For spheres, circular screens, letter displays and other complex shapes, this becomes particularly useful because electrical layout and mechanical structure affect each other.

FAQ

Does one hot spot always mean a component is defective?

No. Some components naturally operate warmer than others. Engineers should compare similar components under the same load and look for unusual temperature differences or heating patterns.

Should thermal testing be done before or after aging?

It can be used during the aging process and again near final inspection. Longer operation makes hidden thermal differences easier to identify.

Can thermal imaging replace electrical testing?

No. It is a diagnostic tool. Voltage, current, connector condition, grounding and load distribution should still be checked separately.

Test Before the Screen Leaves the Factory

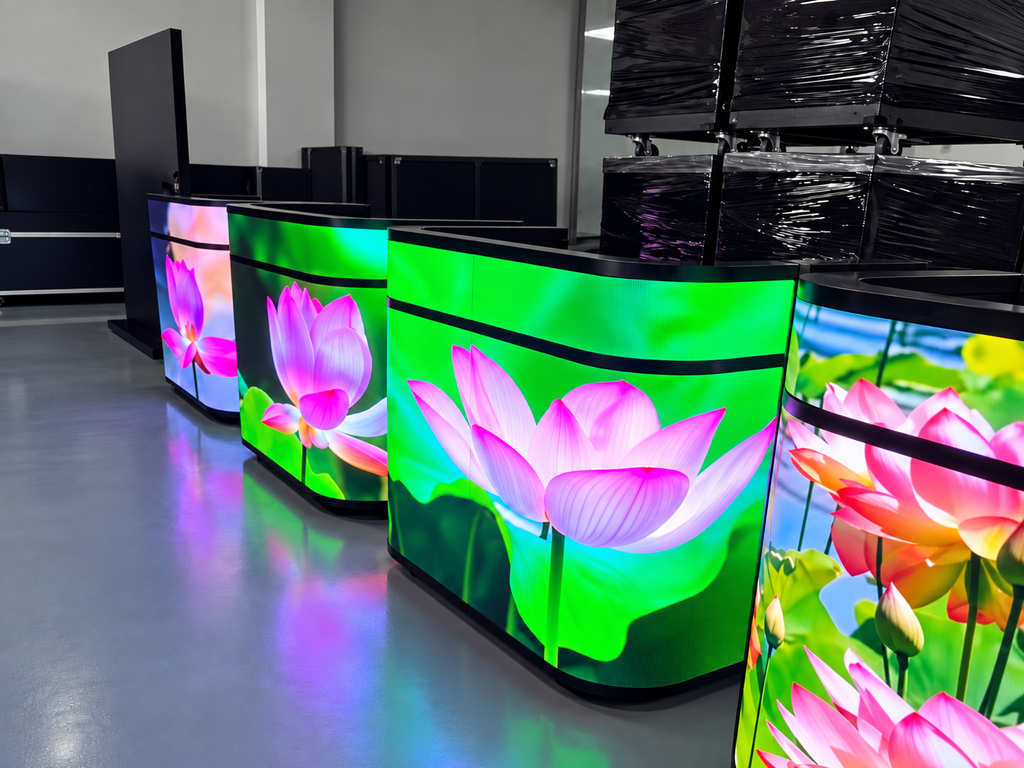

TOOSEN manufactures customized LED displays for spherical, circular, letter, cylindrical and other special-shaped projects.

Before shipment, testing should confirm more than whether the display can show an image.

Power distribution, connections, modules, control systems and long-term operating stability all need to be checked.

Adding a thermal camera inspection helps engineers locate abnormal heat before the screen reaches the installation site.

For custom projects, send us your required shape, dimensions, pixel pitch, installation method and application environment. Our engineering team can evaluate the structure and prepare a suitable LED display solution.
